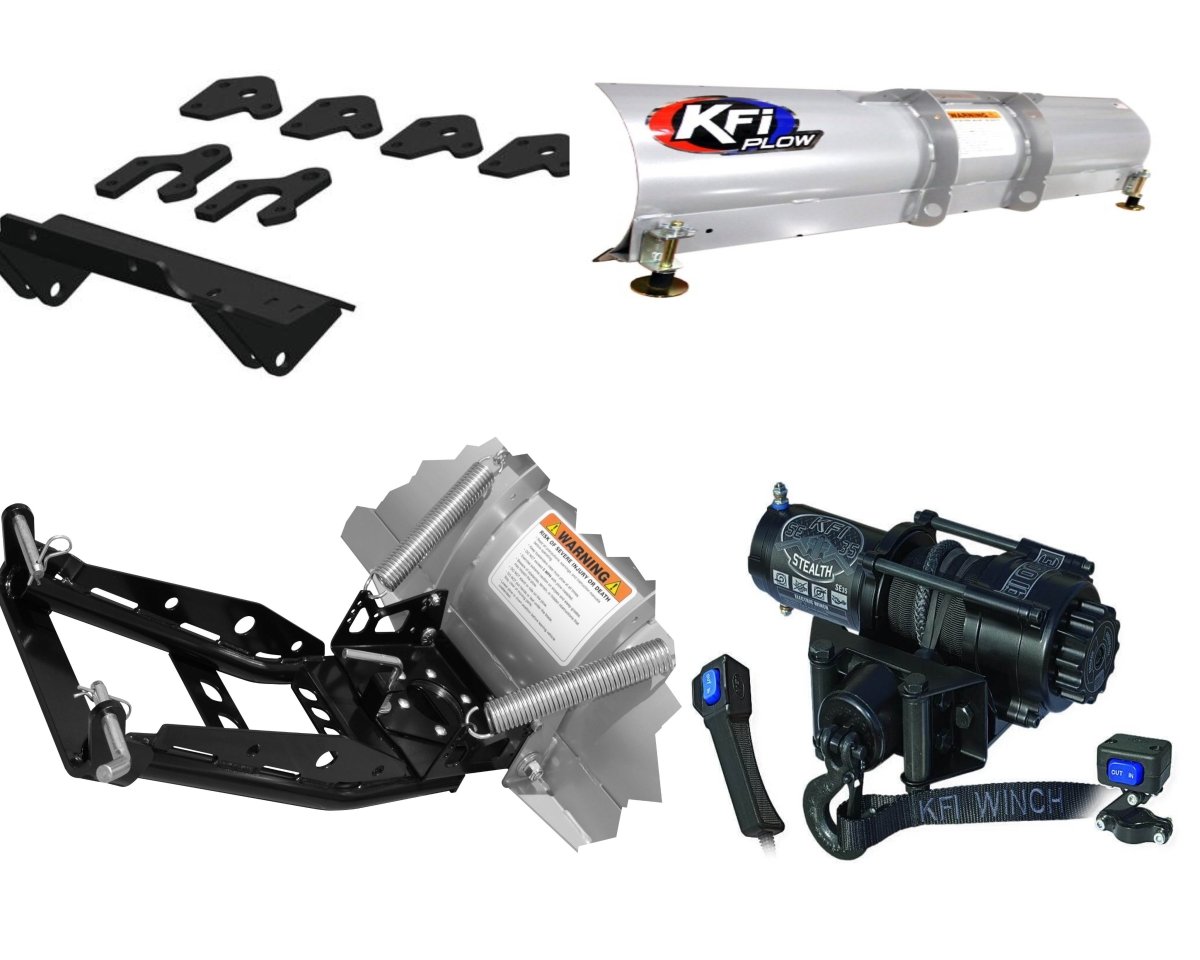

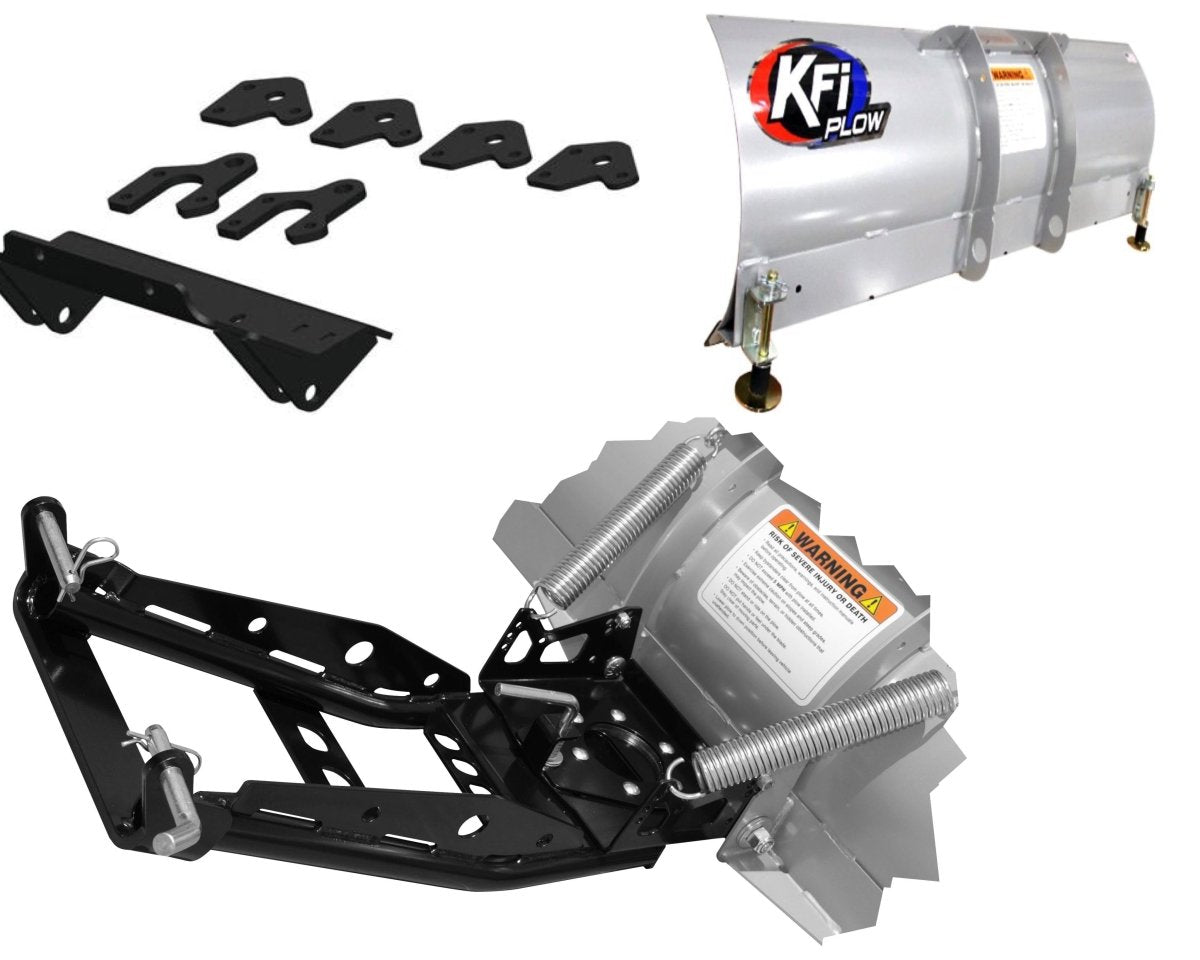

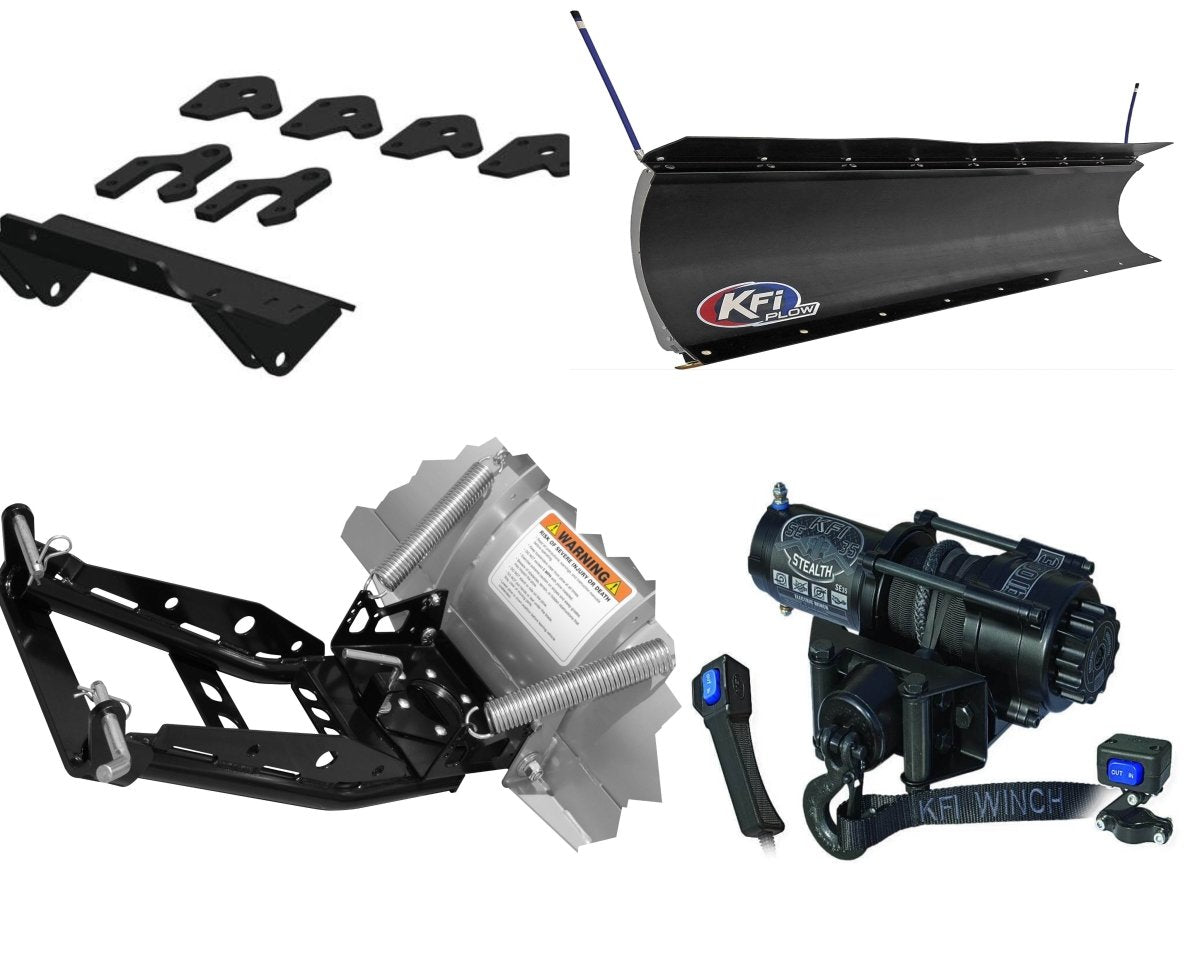

KRX 1000 Snow Plow Kit | Plow Mount | Push Tubes | Snow Plow Blade

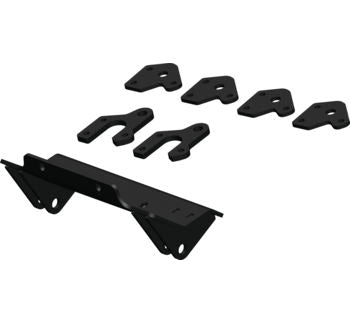

KFI Kawasaki Teryx KRX 1000 Plow Mount - 106095
- 100% made in the USA
- Front-mount system
- Plate constructed from 3/16" grade 50 steel
- All pin tabs are constructed from 1/4" thick grade 50 steel
- All plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other plow competitors, our mounts are metal bead blasted before they are powder coated for the best possible finish prep
- Powder coated black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed

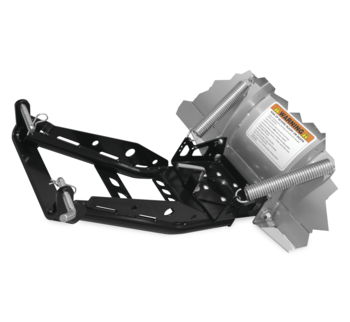

KFI Plow Base/Push Tube Systems - UTV Front Mount - 105635
Specifications:
- Front Mount Design with 30"+ of lift height
- 100% MADE IN USA
- Heavy Duty 1-1/2" 11 Gage Steel Tubing
- Heavy Duty 1/4" Thick 1-1/2" Diameter Grade 50 Pivot Bushings
- 6" Diameter Zinc Plated Rotator Bushing
- Easy-Pull Pin Blade angle adjustment
- Multi-position Plow Lift Bracket
- 6 five degree blade pitch adjustments
- 3 blade angle positions that rotate the blade up to 25 Degrees
- Fully-adjustable blade skids with bolt-on brackets
- Unlike all other Plow competitors our tubes are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
- 2-Year KFI Warranty
72" Snow Plows - Straight Blade 105072 | Poly Pro 105872
We only recommend 72" Blades on the KRX 1000. When picking a Blade you want it to be 4"-6" Wider then your Machine the KRX 1000 being 68" Wide this blade fits perfect

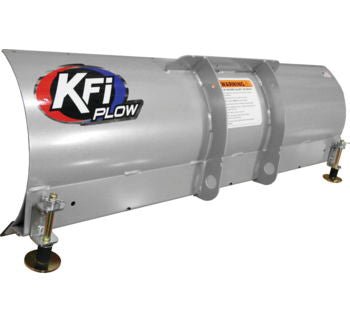

Straight Blade
- Pushes snow straight ahead or to the sides up to 25 degrees
- Added gussets for the wider width
- These 72" blades include a 7" high 2-ply top rubber flap
- Measures 16” Vertical blade face height with an approximate 21” height with snow flap
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Blade Constructed of 11 ga steel
- 3/16" Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
- Unlike all other Plow competitors our Plows are metal bead blasted before they are powder coated Metallic Silver for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- 2-Year KFI Warranty

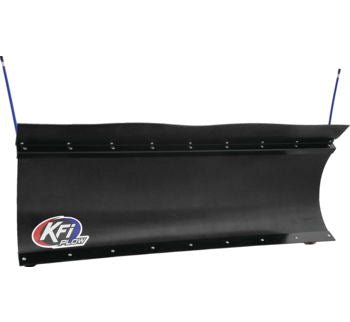

Poly Pro
- Includes a 7" high 2-ply top rubber flap
- Dual Curvature face for supreme snow moving
- Measures 21” Vertical blade face height with an approximate 27” height with snow flap and 72" long
- Fully-adjustable blade skids with bolt-on brackets
- Heavy duty 3"-diameter grade-50 steel skid plates
- Flexible Heavy Duty Black Poly face
- 3/16” Grade 50 Steel Rib and Frame construction
- Unlike all other Plow competitors our Plows are metal bead blasted before they arePowder Coated Black for supreme durability
- 2-Sided 3/16" x 3.00" Grade 50 Steel Wear Bar
- Wear Bar attached with Heavy Duty Grade 8 Bolts
- Complete installation instructions included
- Works with KFI ATV & UTV Tubes
- Includes Plow Markers
- 2-Year KFI Warranty
KFI WINCH (SE35 OR SE45) WITH KRX WINCH MOUNT 101805
Winch Details: (optional you must have a winch to operate snow plow)
Whether its on a winding trail, plowing snow or deep in the mud, a reliable winch is the most important accessory a rider can have. Equip your KRX 1000 with a KFI WINCH and feel confident you can pull yourself out of any situation. This 3500 or 4500lb Stealth Series winch features Synthetic Cable, Cable Hook Stopper, a dynamic and mechanical braking system, Water Resistant seals to keep the elements out, a standard 4-hole mounting design and a heavy duty all metal turn clutch. It is also backed by a KFI 1-Year Limited Warranty. These KFI Stealth Winch comes with everything you need INCLUDING A KRX 1000 WINCH MOUNT !!
Includes:
-
50" Synthetic Cable
- Mini in/Out Rocker switch
- 14" Corded Remote
- Heavy Duty Contacter
- Split Cable Hook Stopper
$45 Oversize Shipping Charge on This item
