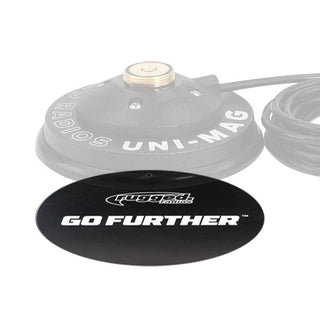

UNI-MAG Universal NMO Antenna Mount

Magnet Mount Base with 13' RG-58 Coaxial Cable with removable NMO threaded base.

Strong, powerful, 5" inch magnet is used with metal surfaces to ensure that your antenna will stay on while riding.

NMO base cable features a standard UHF connector that works for both UHF and VHF radios.

In this application, the term 'UHF connector' refers to the connector type and not frequency type.

Features:

• Solid Brass NMO
• Gold Contact Pin
• 13 Ft. RG-58 Cable: Tinned Copper Braid 95%, Solid Insulation, Stranded Tinned Copper Center Conductor
• UHF Male Connector
• 3-1/4" ABS Base

1/2 Wave Antenna

Rugged Radios’ most popular VHF antenna for Work, Race, or Play!

This GO FURTHER VHF antenna provides excellent performance in a variety of conditions and mounting locations. It's wide-band technology makes it the best plug-and-play antenna for all VHF applications.

NGP (No Ground Plane), 1/2 wave base loaded antenna. Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring.

This is Rugged Radios’ most popular antenna, providing reliable performance in all types of conditions and applications. "No Ground Plane" means the antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.

This antenna is already pre-tuned (cut) for application. Simply order, mount, and ride!

VHF Range - 144-174
Connector Type - None
Color - Chrome Model(s)
Gain - 2.4 dB
VHF Bandwidth - 4 MHz
Power (watts) - 200
Whip Material - 17-7PH Stainless Steel
Whip Length - 39.5" VHF
Base Style - NMO Style

Before You Order

Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.

Available configurations are the options shown on this RAD UTV Parts listing.

Build Your Setup

Rugged Radios Antennas & Installation Parts, Rugged Radios Intercoms & Intercom Kits, Rugged Radios Handheld Radios & Kits. Browse the complete Rugged Radios catalog for matching equipment.

Frequently Asked Questions

What should I check before ordering?

Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.

Manufacturer part numbers: UNI-MAG.
