GMRS / UHF No Ground Plane (NGP) Whip Antenna Kit & NMO Mount | Rugged Radios

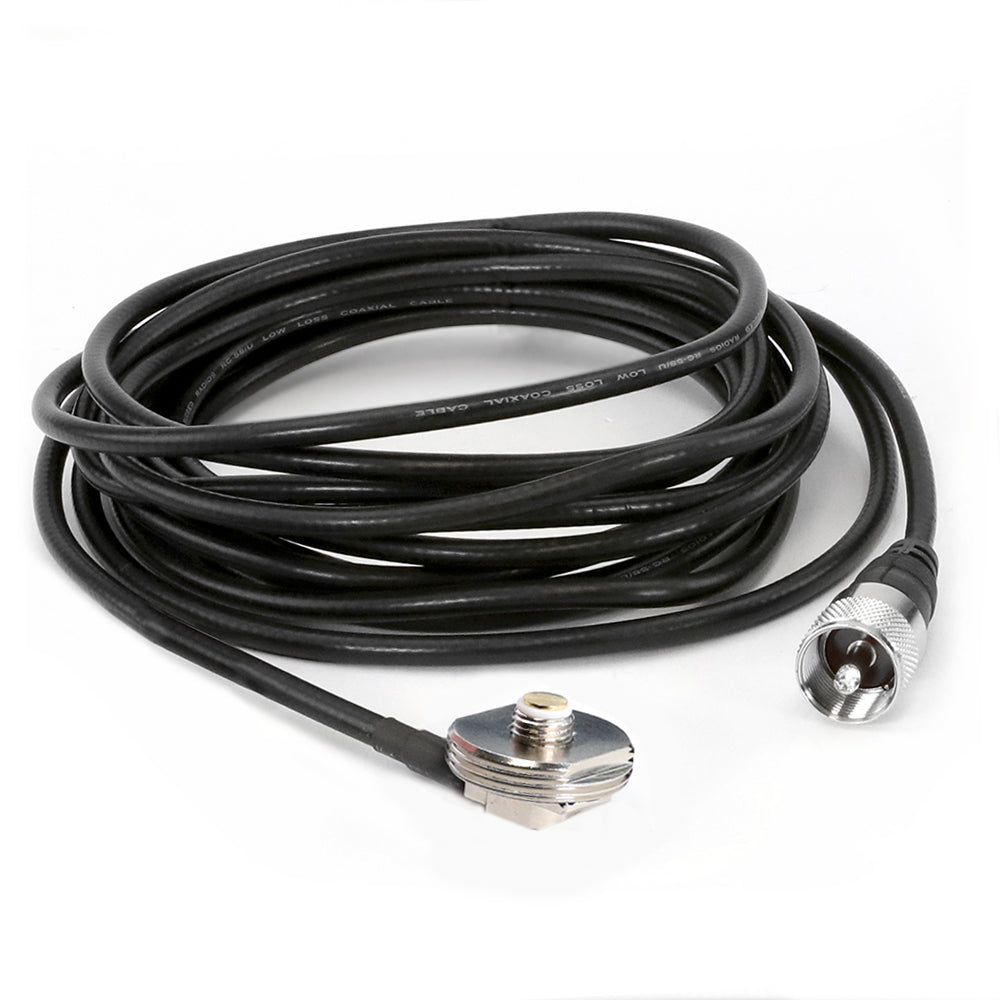

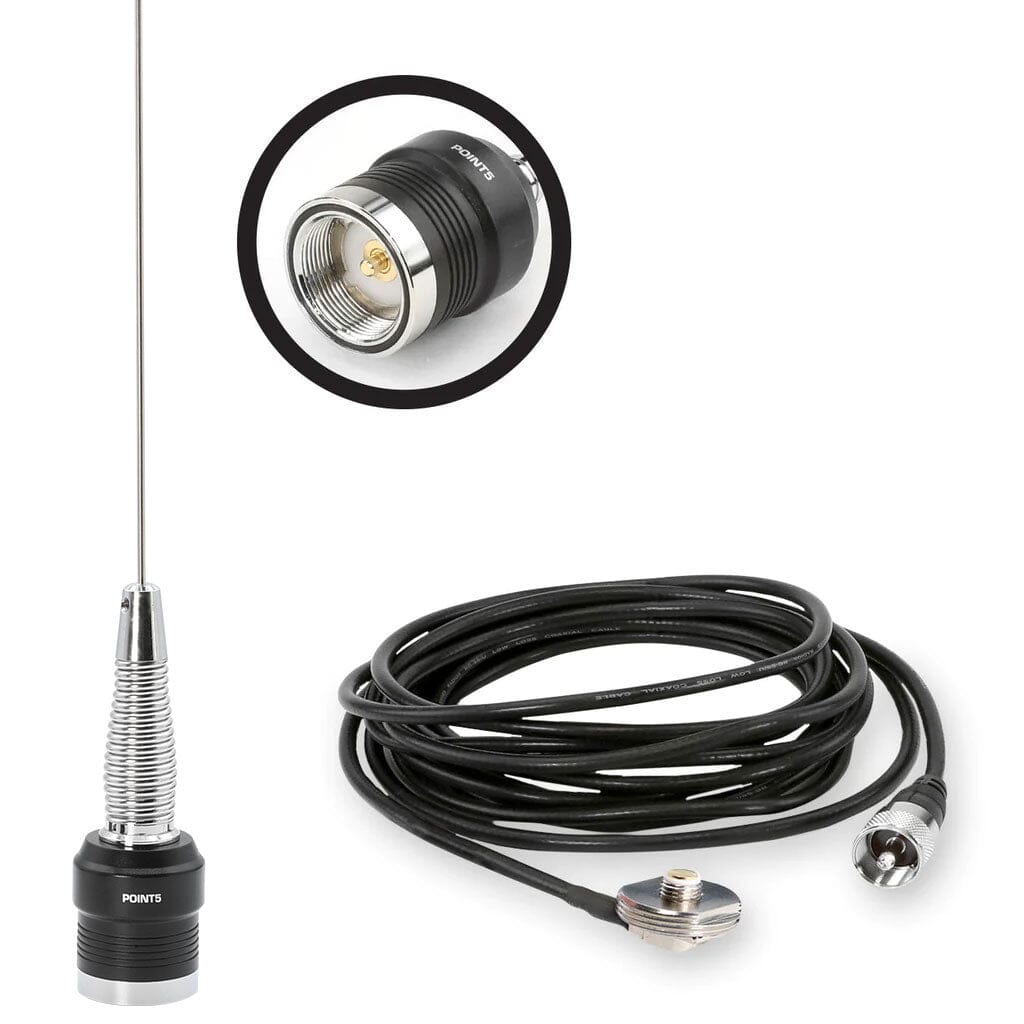

Simple kit combines what you need for antenna replacement in the field. Includes a powerful magnetic NGP (No Ground Plane) antenna mount, a UHF antenna with threaded NMO base, and 15 feet of coax cable.

The POINT5 antenna optimizes your GMRS radio by delivering the best signal performance throughout the programmed channels.

"No Ground Plane" means the antenna does not have to be attached to a metal surface (such as a vehicle roof or larger body panel). Although using a ground plane is always better, this NGP antenna performs great for all uses, drivers, teams, and applications.

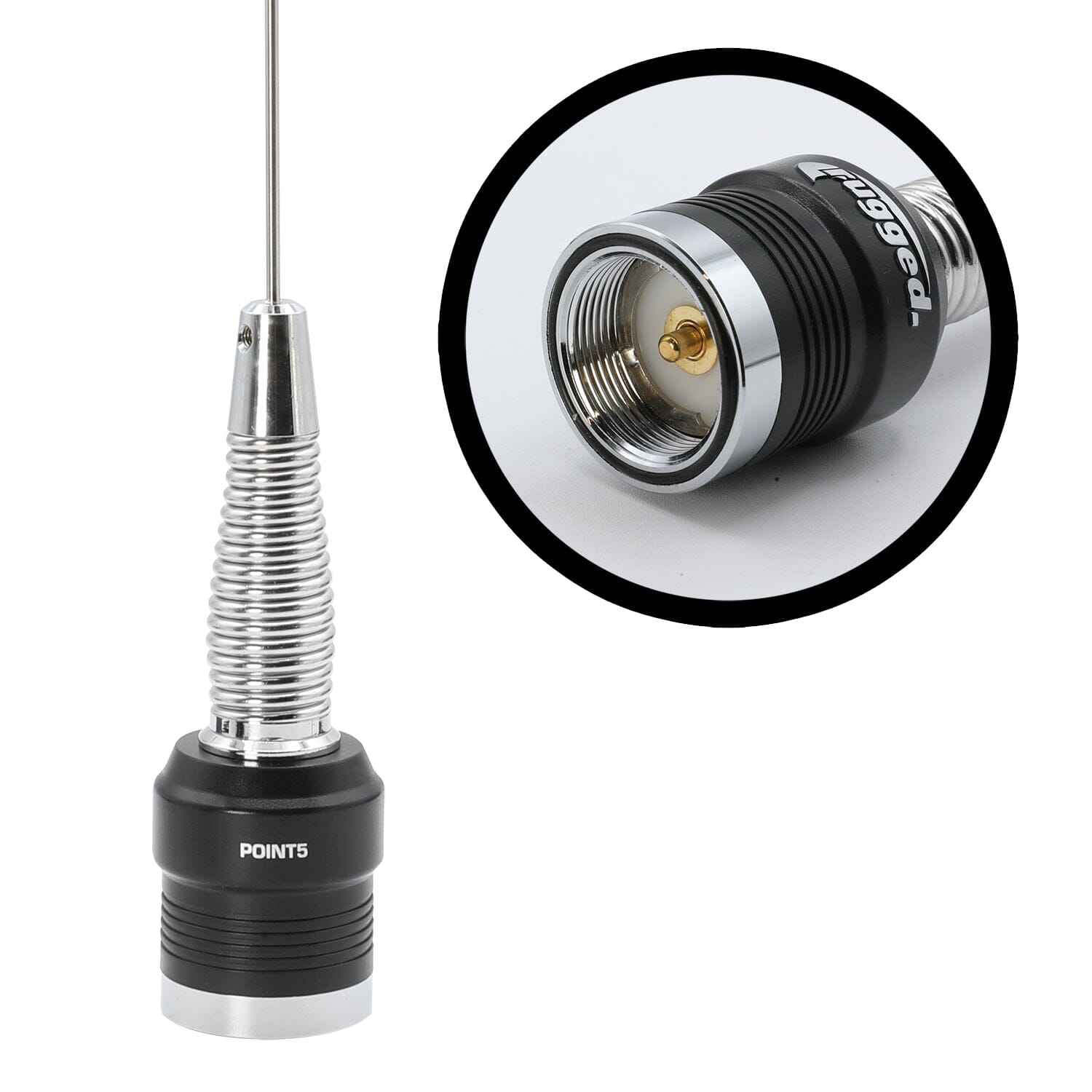

Molded high heat ABS mounting base features silver soldered connections, gold plated push pin contacts and O-ring. The UHF antenna is already pre-tuned (cut) for UHF application. Simply order, mount, and ride!

Features:

• UHF Range: 450-470

• Connector Type: None

• Color: Chrome Model(s)

• Gain: 2.4 dB

• UHF Bandwidth: 4 MHz

• Power (watts): 200

• Whip Material: 17-7PH Stainless Steel

• Whip Length: 12.5" UHF

• Base Style: NMO Style

• Mount Style: None

• Connector Type: None

NOTE: The center conductor inside the NMO antenna stud is not solid metal and can be damaged if overtightened. As shown in the photo above, when installing the NMO nut, we recommend holding the wrench vertically to reduce torque and over-tightening.

Before You Order

Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.

Build Your Setup

Rugged Radios Antennas & Installation Parts, Rugged Radios Intercoms & Intercom Kits, Rugged Radios Handheld Radios & Kits. Browse the complete Rugged Radios catalog for matching equipment.

Frequently Asked Questions

What should I check before ordering?

Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.

Manufacturer part numbers: ANT-SPARE-KIT-U.
