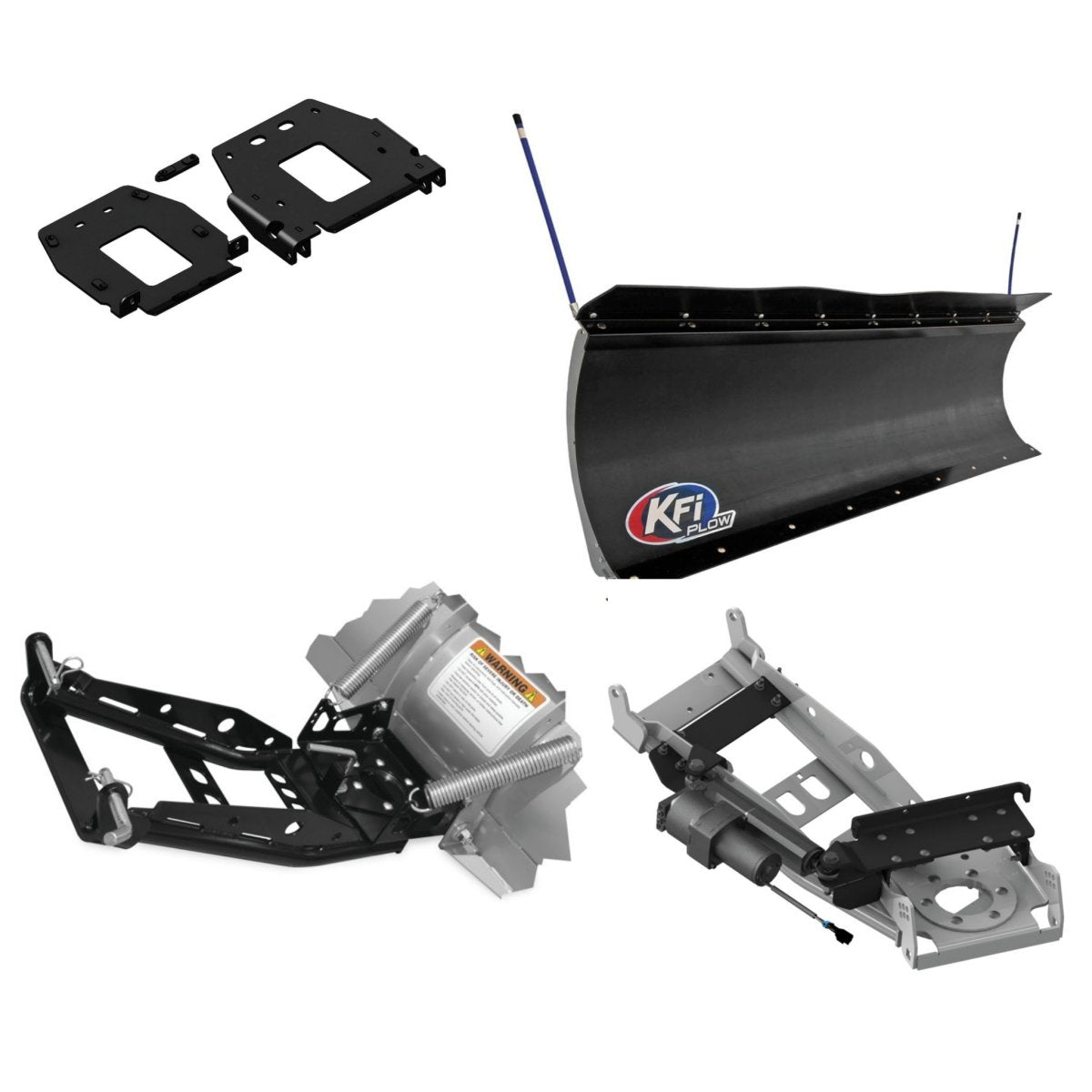

Complete Polaris General Snow Plow Kit | KFI 66" Poly Pro Blade
Push Tubes:
Easy pull lever for blade adjustment. Multi-position plow lift bracket. Features an extra-wide design for increased stability and durability. The blade trip system enables the blade to trip forward when striking an immovable object. combined with KFI's Poly Pro Snow Blade With Dual Curvature Blade to keep the snow Moving
- Shot-blasted before powder coating in black
- Six blade pitch adjustment in 5° increments
- Heavy-duty 1/4" grade 50 x 1-1/2" diameter pivot bushing
- ATV Mid-Mount System:
- Uses two 3/8" pin to mount
- Integrated manual lift brackets
- 1/4" grade 50 attachment bracket
- 40-50% more lift height then competitors
- Works with Cycle Country ATV Mid Mounts
- Five Position blades, up to 25° to either side
- UTV Front Mount System:
- Uses two 5/8" pins to mount
- 3/8" grade 50 attachment brackets
- 30" (or greater) lift height
- Three position blade, up to 25° to either side
- Made in USA.
66" Poly Pro Snow Plow:
- 21" vertical blade face height; 27" height with snow flap
- Grade 50 steel rib and structure construction
- Shot-blasted and powder-coated black with black poly face
- Heavy-duty 1/2" thick adjustable skids
- Includes plow markers and snow flap.
- Dual curvature face for supreme snow moving
- Works with P/N 573960 UTV Tube System
- Two-sided 3/16" grade 50 steel wear bar attached with grade 8 bolt
- Made in USA.
Plow Mount:
- 100% MADE IN USA
- Front-Mount System
- Plate constructed from Grade 50 Steel
- All Pin Tabs are constructed from 1/4" Thick Grade 50 Steel
- All Plow tabs are tapered to help reduce hang-ups while trail riding
- Unlike all other Plow competitors our Mounts are metal bead blasted before they are powder coated for the best possible finish prep.
- Powder Coated Black for supreme durability
- Complete installation instructions included
- All mounting hardware included
- Satisfaction guaranteed
ADD ON Hydraulic Angle Kit:
- Rotates push tube up to 25° in both directions
- Specifically designed for use with KFI UTV Tube
- Parker Industries electric 12-Volt over hydraulic cylinder
- Carling Technologies two-way dash rocker switch and complete wiring kit included
- One-year manufacturer's warranty on KFI components.
- 18 month manufacturer's warranty from date of manufacturing on Parker Hydraulic Actuator
- Made in USA.
MUST HAVE WINCH TO OPERATE
Please specify if you have a XP or no XP model mounts are different
Fits all 2016-2022 Models and sub models
