Arctic Cat Extended ATV & UTV Wheel Studs

RAD extended wheel studs for selected Arctic Cat ATVs and UTVs, with M10 x 1.25 threads and OEM reference 3323-096. Choose the required pack size and available lug option, then confirm compatibility with your hub and wheels before ordering.

Choose the correct configuration

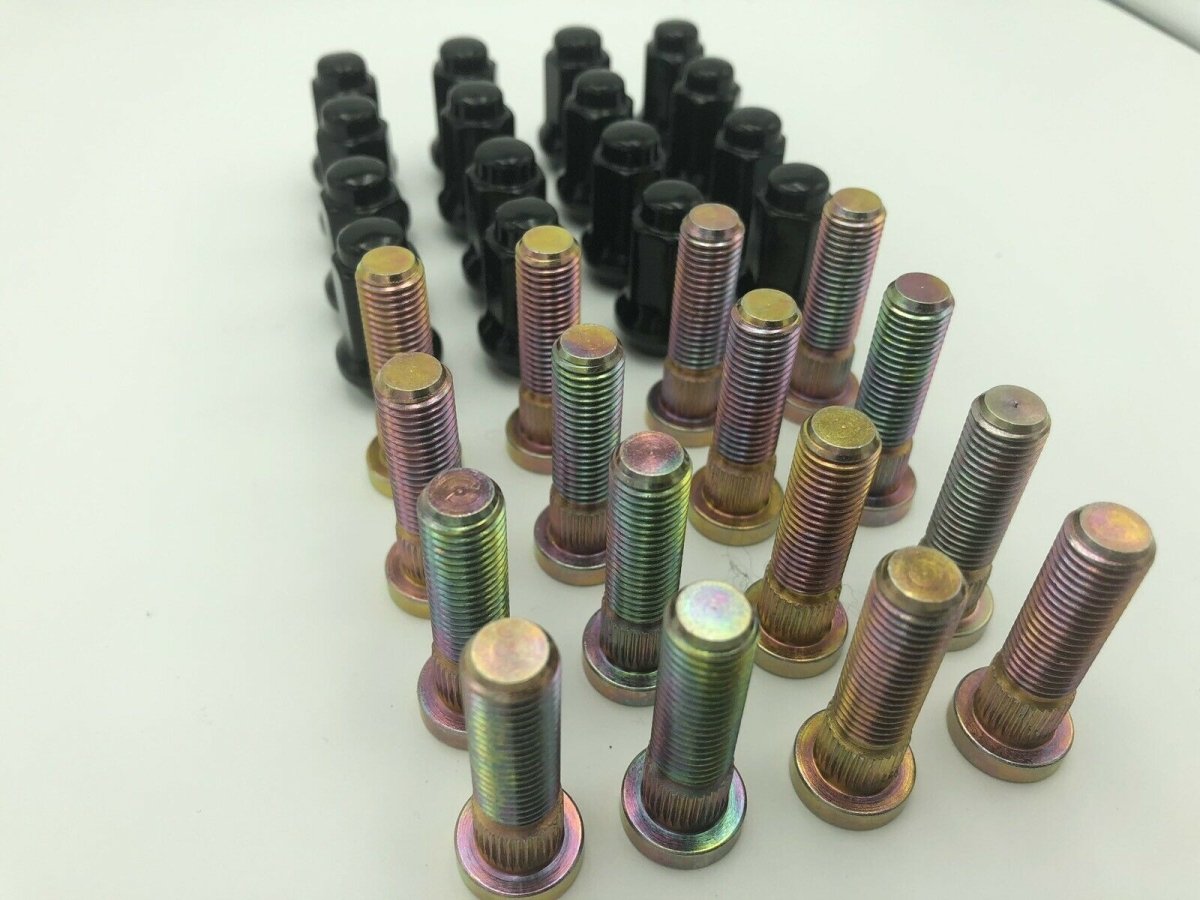

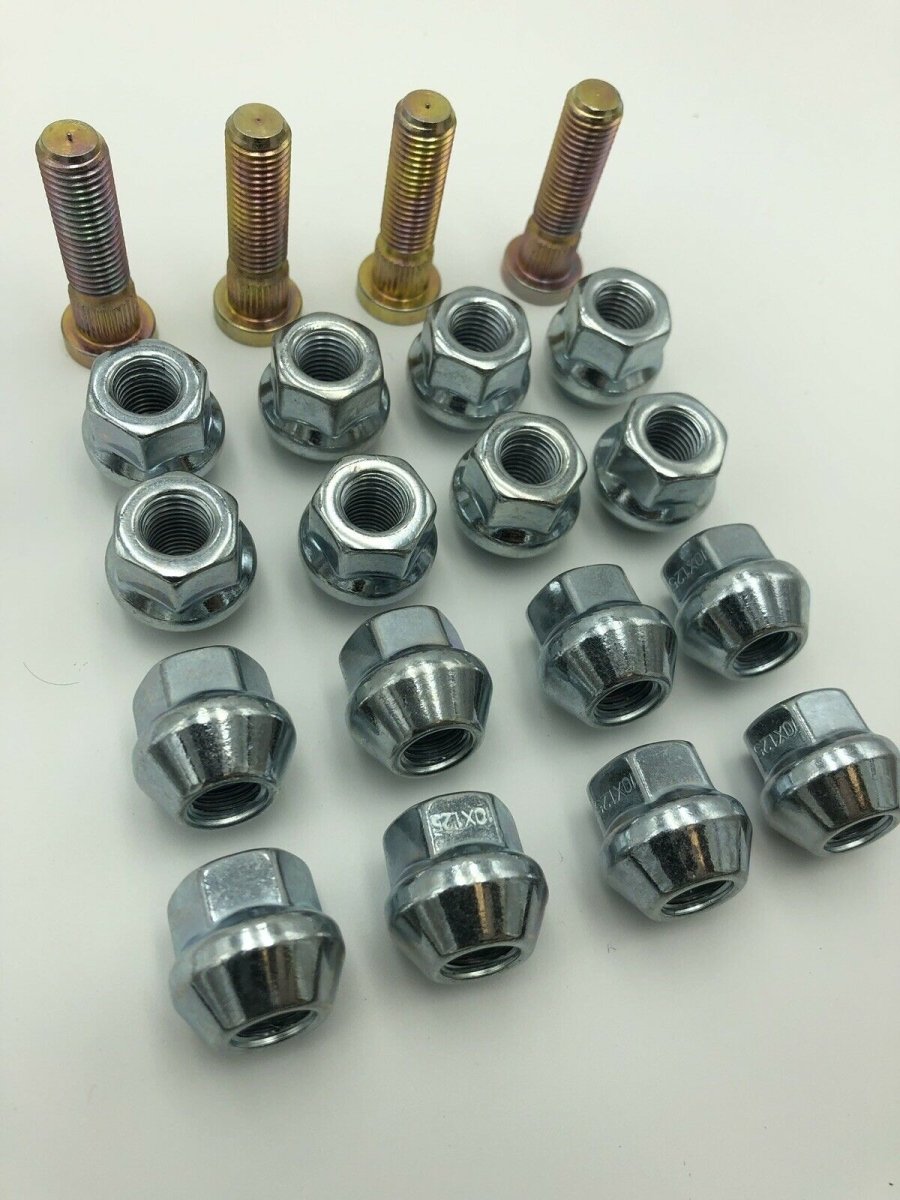

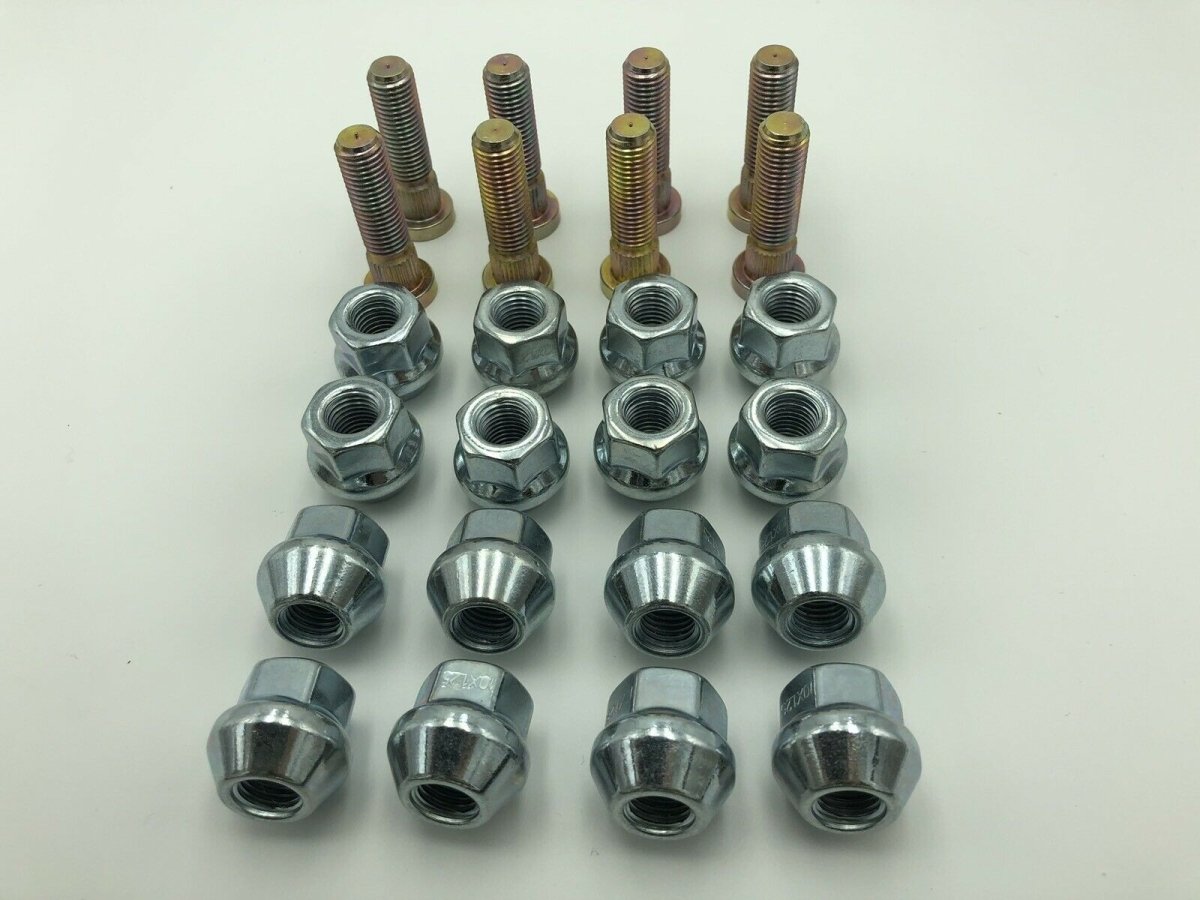

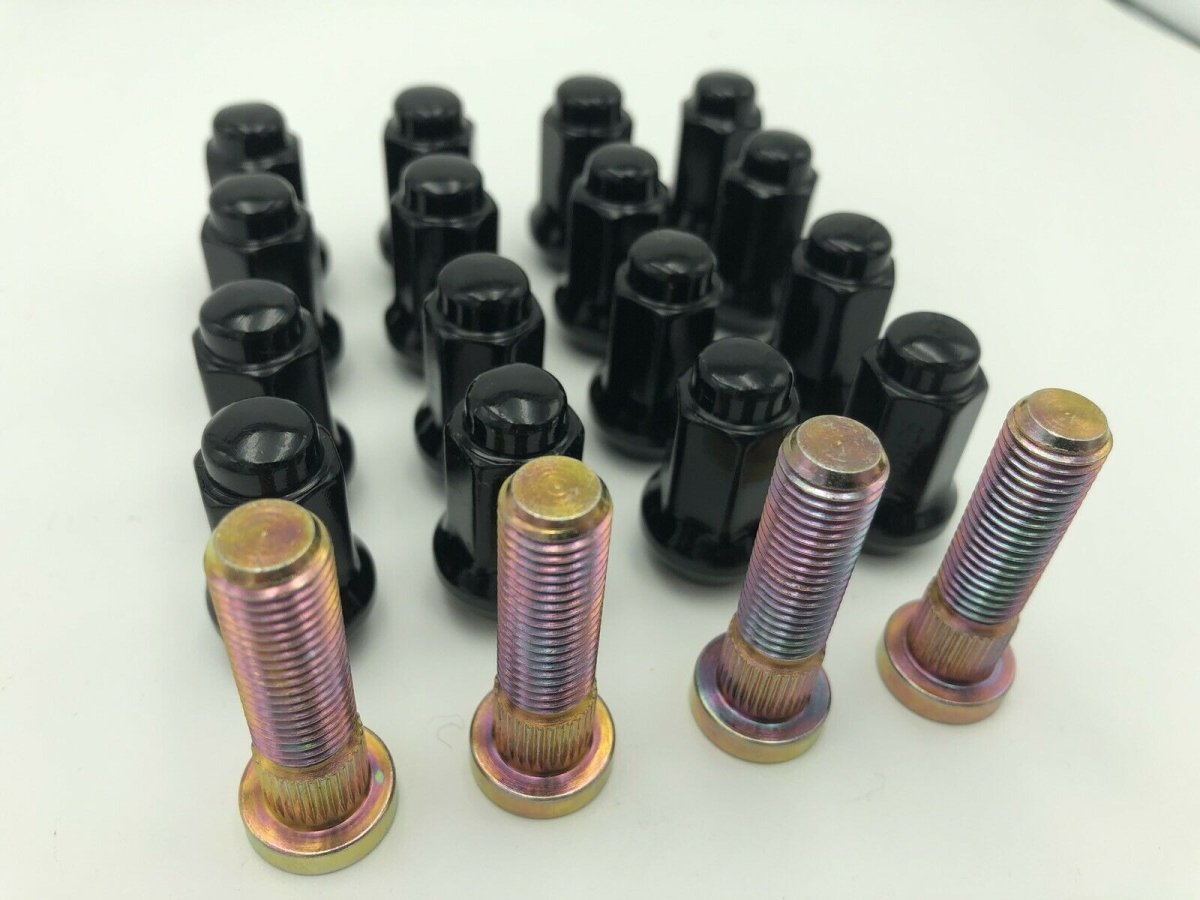

Available selections include 4-, 8- and 16-stud packs, with lug options shown in the selector. Match the lug-seat shape to the wheel manufacturer's requirements. Extended studs do not by themselves establish compatibility with a particular spacer or aftermarket wheel.

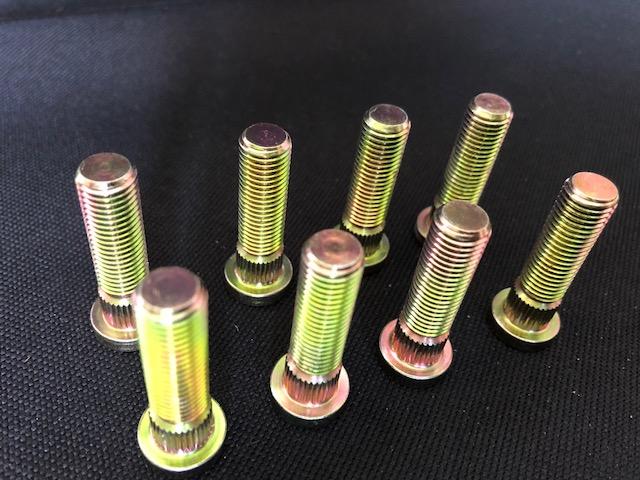

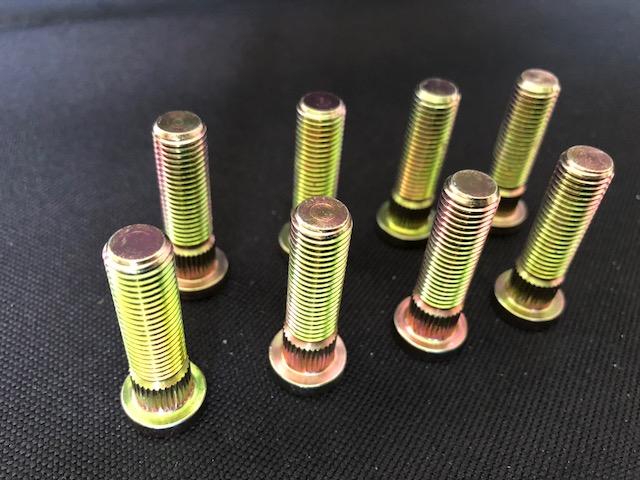

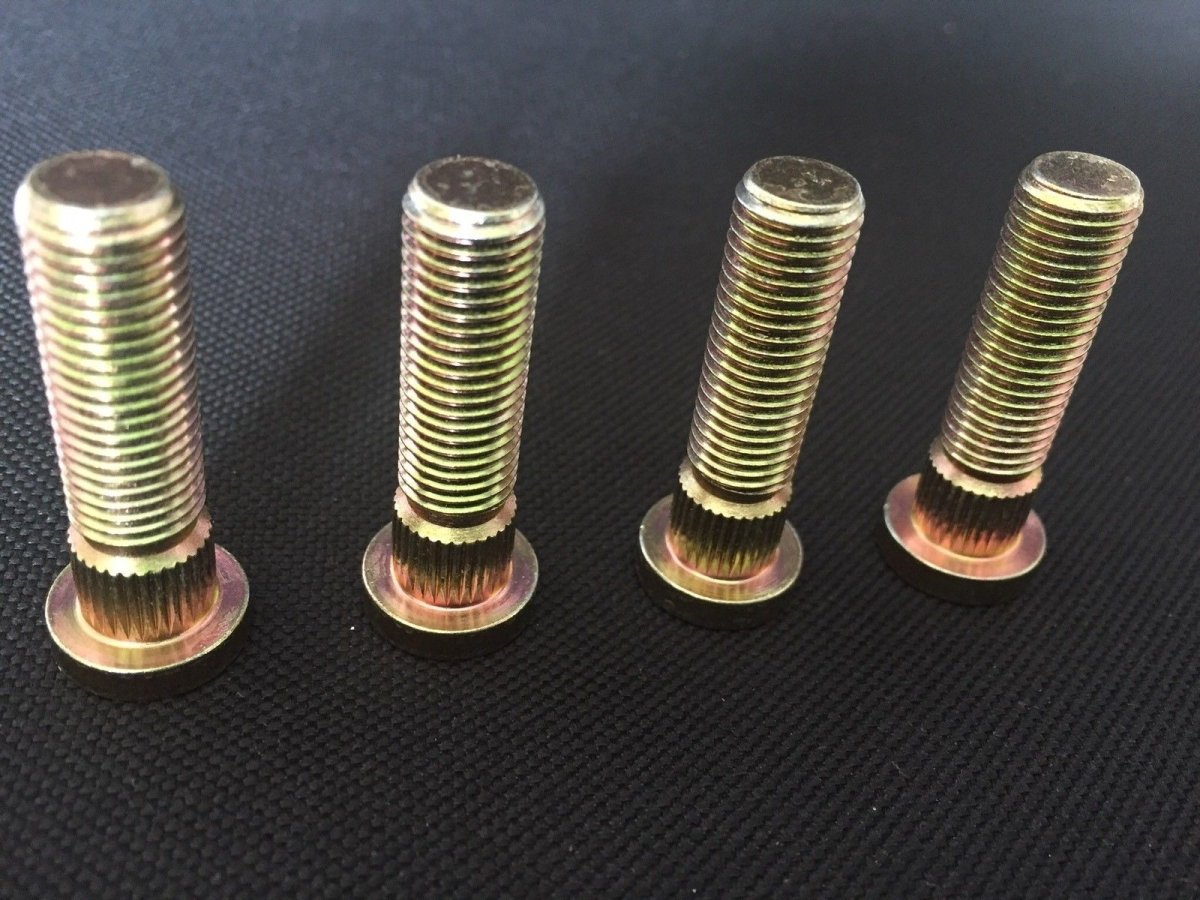

RAD manufactures these studs in the USA. Material and finish options described for this product include gold zinc-plated 1144 steel and clear 17-4 H1050 stainless steel; confirm the supplied option before ordering if finish or material is critical.

Listed Arctic Cat applications

Match the exact model and year below. Do not extend this list to unlisted models or newer model years without verification.

2004-2005 250

2004-2005 300

2011-2012 350

2008-2011 366

2004-2008 400

2013-2016 400

2009-2016 400 TRV

2011-2012 425

2010-2016 450

2011-2016 450 XC

2004-2016 500

2009-2016 550

2004-2006 650 V2

2005-2012 650 H1

2006-2008 700 EFI

2008-2016 700 H1

2007-2015 700 Diesel

2008-2016 1000

Fits UTV Models:

2014-2016 Prowler 500

2009-2015 Prowler 550

2006-2009 Prowler 650

2008-2016 Prowler 700

2009-2016 Prowler 1000

2014-2016 Wildcat 700

2012-2016 Wildcat 1000

Verify dimensions before installation

Confirm the required overall length, usable thread length, press-fit dimensions and lug engagement for your application with RAD UTV Parts. Use the vehicle and wheel manufacturer's installation procedure and torque specifications. A qualified installer should confirm the hub and wheel combination.
