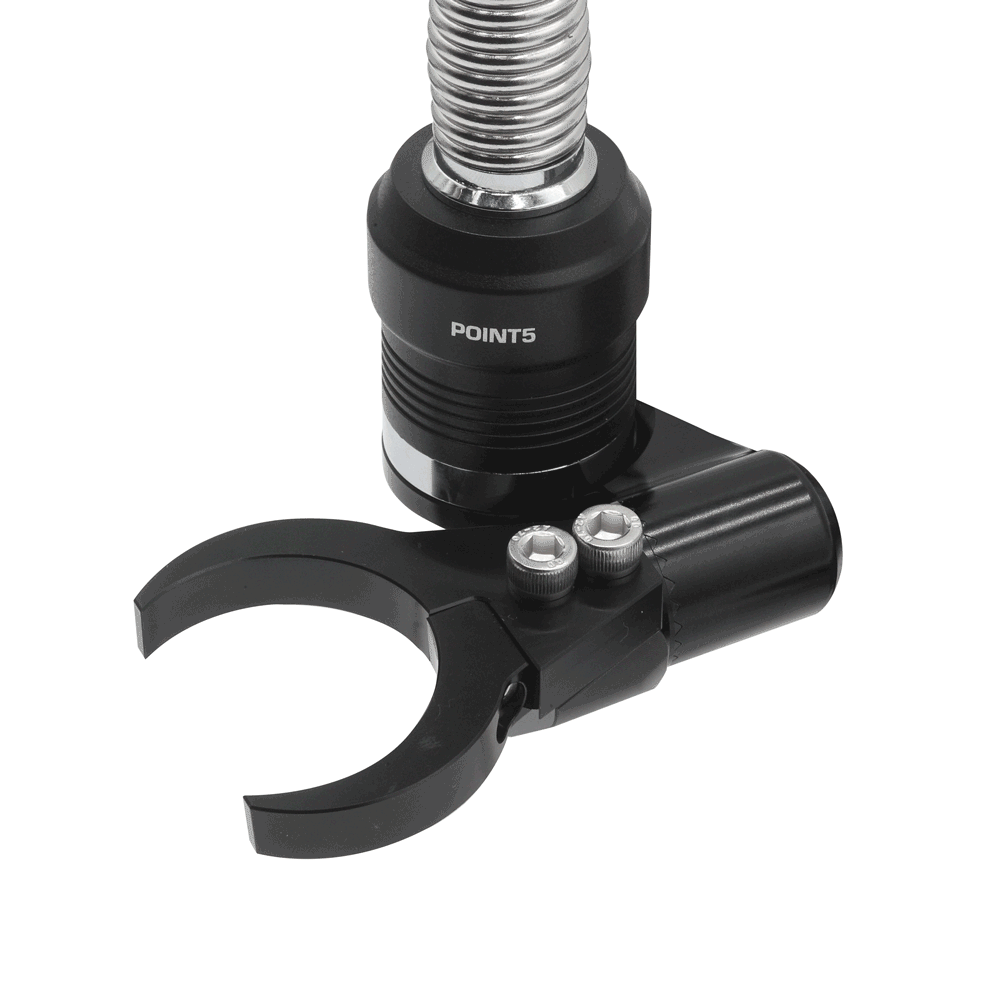

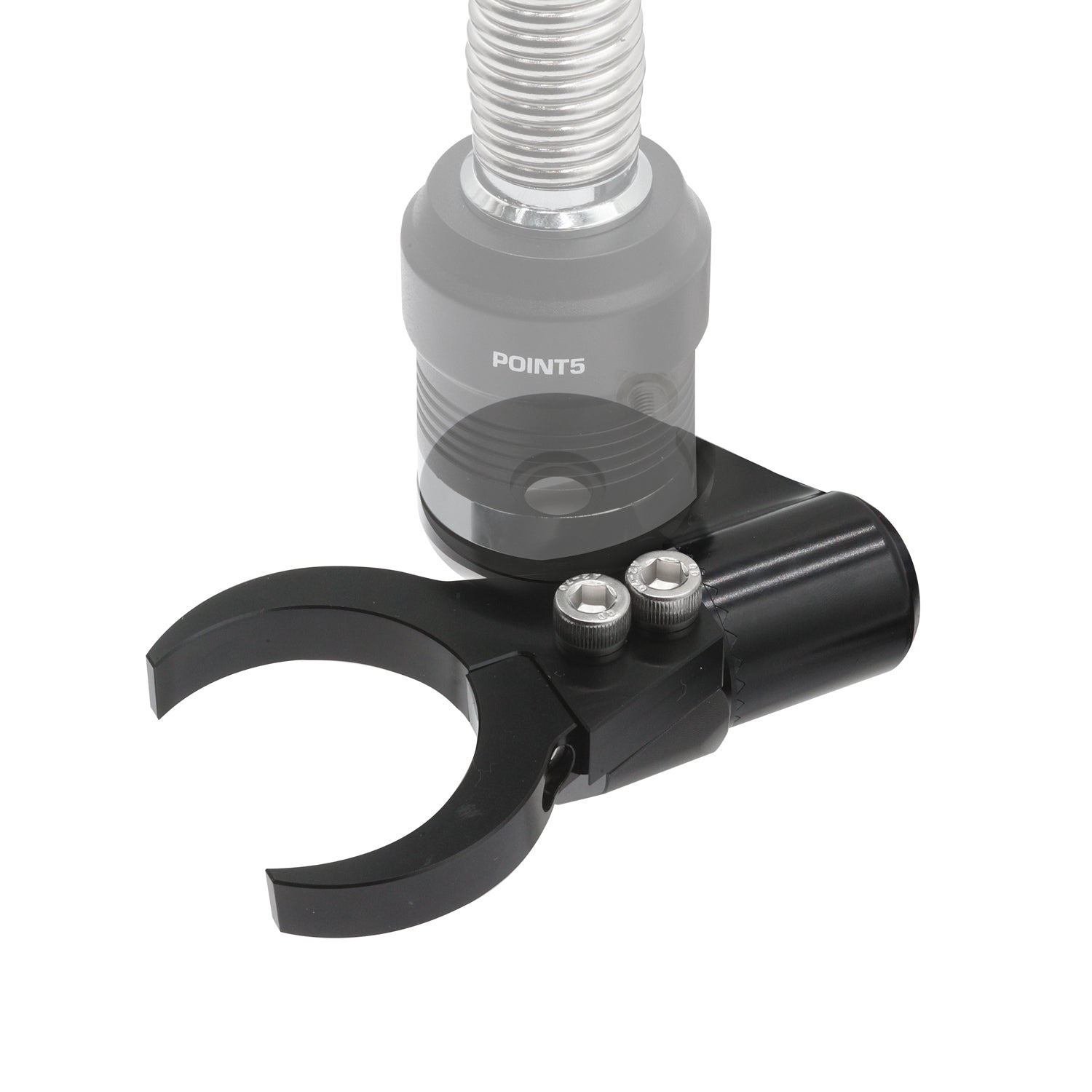

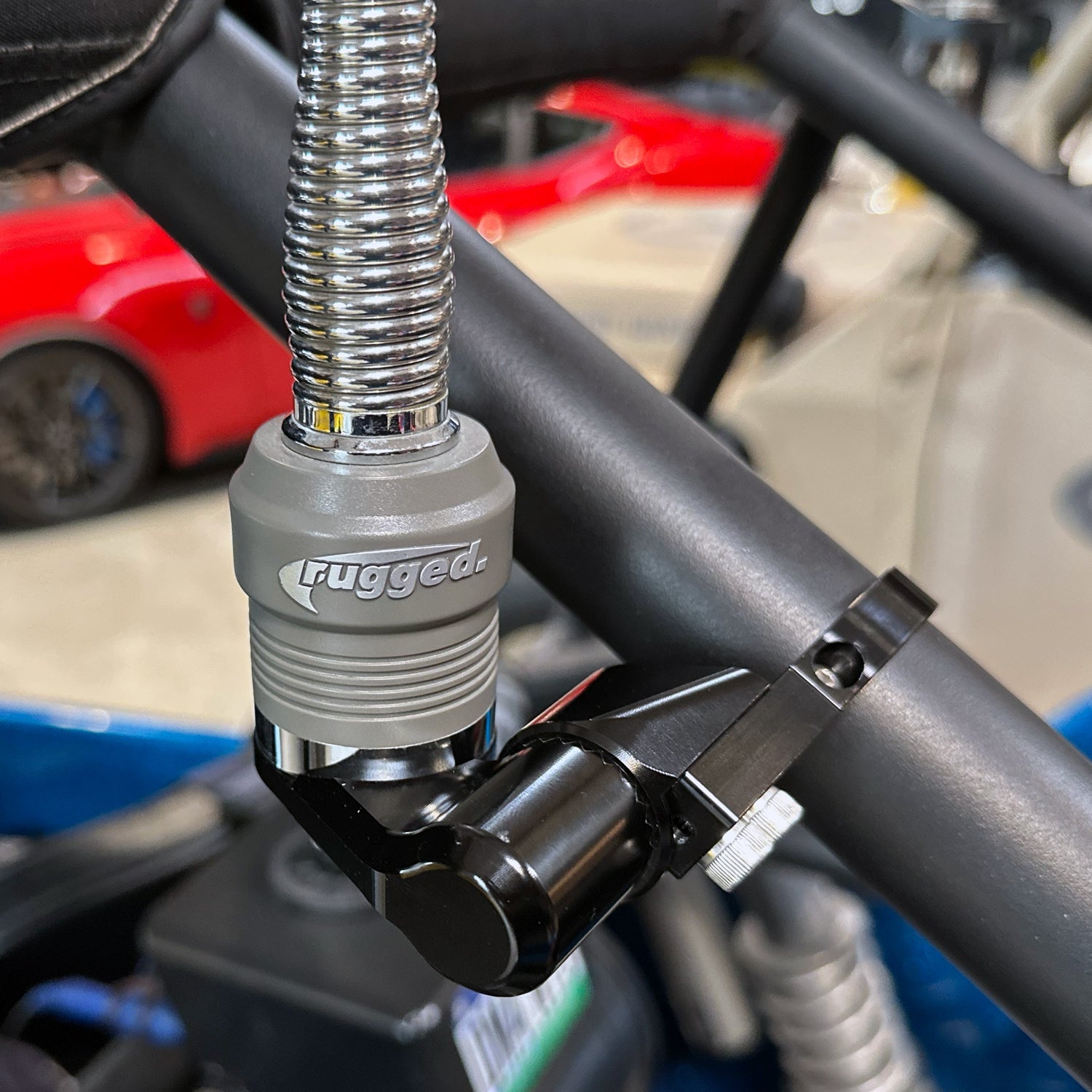

View full product detailsSecurely mount your antenna to virtually any roll cage or tubular frame with this versatile Adjustable Antenna Bar Mount. Designed for off-road vehicles, UTVs, and custom builds, this mount offers a no-drill, no-weld solution with over 30 locking positions for optimal antenna placement and performance.
Key Features:

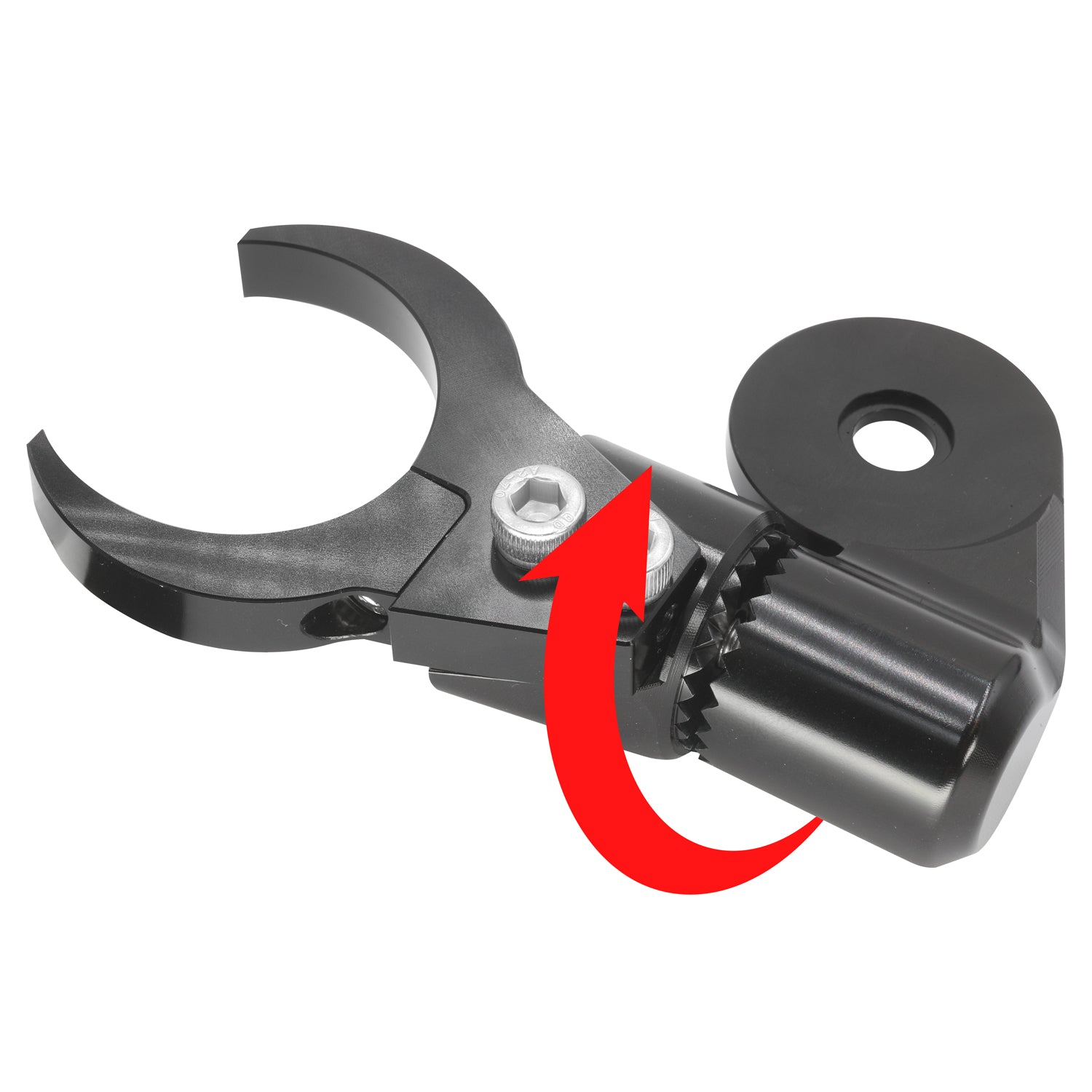

- Adjustable locking design with over 30 indexed positions for precise antenna angle
- Fits multiple tubing sizes including 1", 1.25", 1.5", 1.75", 1.8", and 2" bars

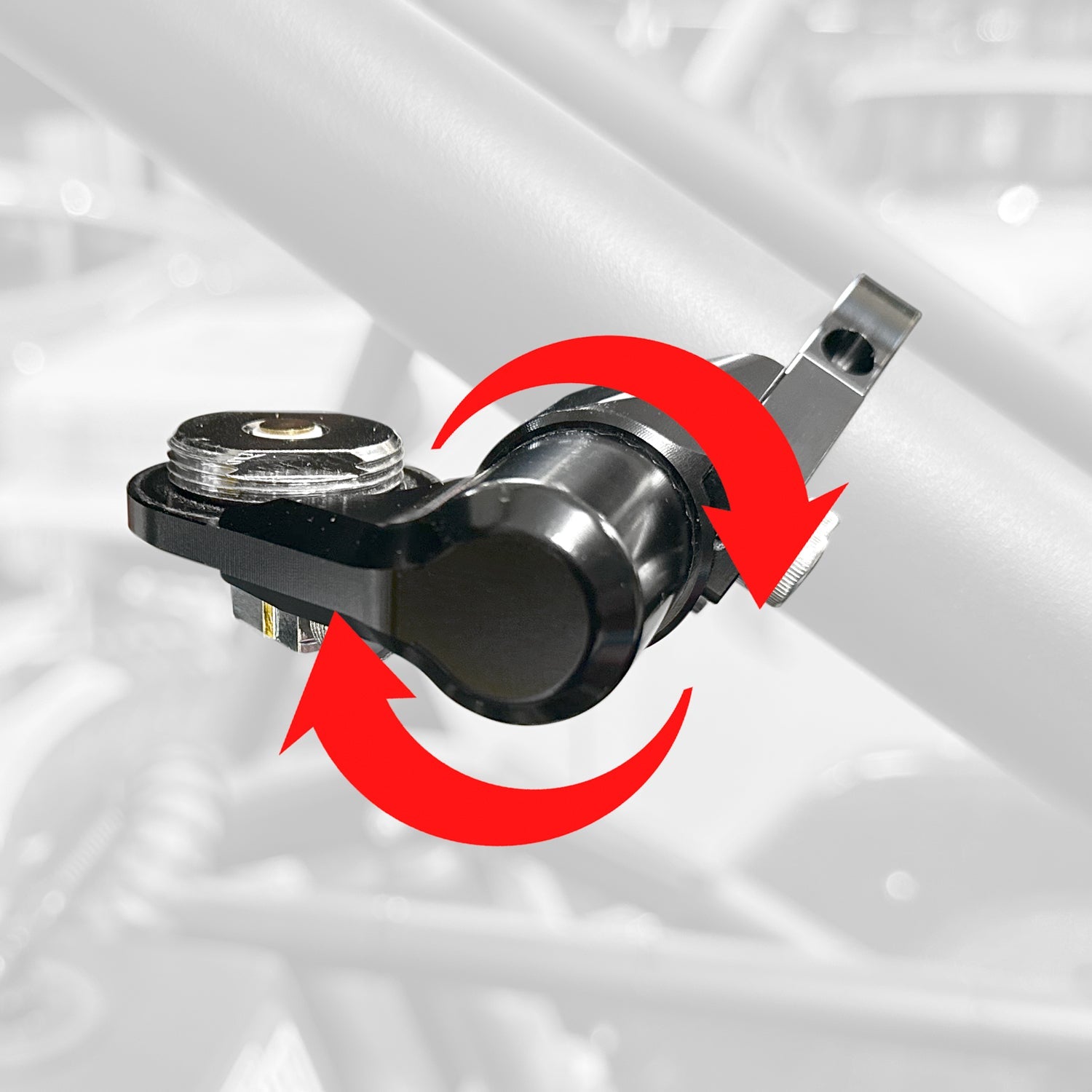

- Horizontal or vertical mounting for full placement flexibility
- Billet aluminum construction for strength, durability, and a clean finish
- Simple relocation with basic hand tools—no drilling or welding required
- Compatible with 3/8-inch NMO-style antenna cables for easy integration
Compatibility Note:
Not compatible with NMO-MT-3/4 mounts. If you don’t see your bar size listed, contact RAD UTV Parts at 209-341-9117.
| Arctic Cat | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Wildcat | 1.75" | 1.75" | ||
| Can-Am | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Commander/Maverick | n/a | 2.00" | 1.00" | 1.80" |
| Maverick R |
1.80" | 2.00" | n/a | n/a |
| MAVR Max | 1.80" | 1.80" | 1.80" | n/a |
| X3 | 1.80" | 1.80" | 2.50" | n/a |
| X3 Max | 1.80" | 1.80" | 1.80" | 2.50" |
| Defender | n/a | 2.00" | 1.00" | n/a |
| Honda | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Big Red | 1.625" | 1.625" | n/a | |
| Talon | 2.00" | 1.65" | n/a | |
| Talon 4 Seat | 2.00" | 2.00" | 1.34" | 1.34" |
| Pioneer | 1.75" | 1.75" | 1.25" | n/a |
| Kawasaki | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Teryx | 1.75" | 1.75" | ||
| Teryx 4 | 1.75" | 1.75" | 1.25" | |
| Teryx 4 KRX/KRX4 | 1.75" | 1.50" | 1.25" | |
| Ridge | n/a | n/a | 1.25" | n/a |
| Mule | 1.75" | 1.75" | 1.75" | n/a |
| Polaris | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| ProR, Turbo R, Pro XP (2015 and newer) | 2.00" | 1.75" | 1.25" | n/a |
| Ranger, RZR, RZR S, XP | 1.75" | 1.75" | 1.50" | 1.50" |
| Turbo S | 1.75" | 1.75" | 1.75" | 1.75" |
| Xpedition | n/a | n/a | 1.25" | n/a |
| Ranger 1500 | n/a | n/a | 1.25" | n/a |
| RZR 200 | 1.50" | 1.50" | 1.50" | 1.50" |
| Redline | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Revolt | 1.25" | 1.25" | ||
| Riot | 1.50" | 1.25" | ||
| Segway | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Villain | ||||
| Super Villan | 2.00" | 2.00" | ||
| Speed | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Baja Bandit, El Diablo, El Jefe | 1.75" | 1.75" | 1.50" | n/a |
| Yamaha | Perimeter | Crossbar | Seat Back, Front | Seat Back, Rear |
| Rhino | 1.75" | 1.50" | ||
| YXZ | 1.75" | 1.50" | ||
| Wolverine RMAX | 2.00" | 1.50" | 1.50" | 1.50" |
Before You Order
Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.
Build Your Setup
Rugged Radios Antennas & Installation Parts, Rugged Radios Intercoms & Intercom Kits, Rugged Radios Handheld Radios & Kits. Browse the complete Rugged Radios catalog for matching equipment.
Frequently Asked Questions
What should I check before ordering?
Match the antenna frequency range, coax connectors and mounting requirements to your radio. Confirm cable routing and clearance before installation.
Manufacturer part numbers: BM-ANT-1.0, BM-ANT-1.25, BM-ANT-1.5, BM-ANT-1.75, BM-ANT-1.8, BM-ANT-2.0, BM-ANT-2.5, BM-XC-ANT.
