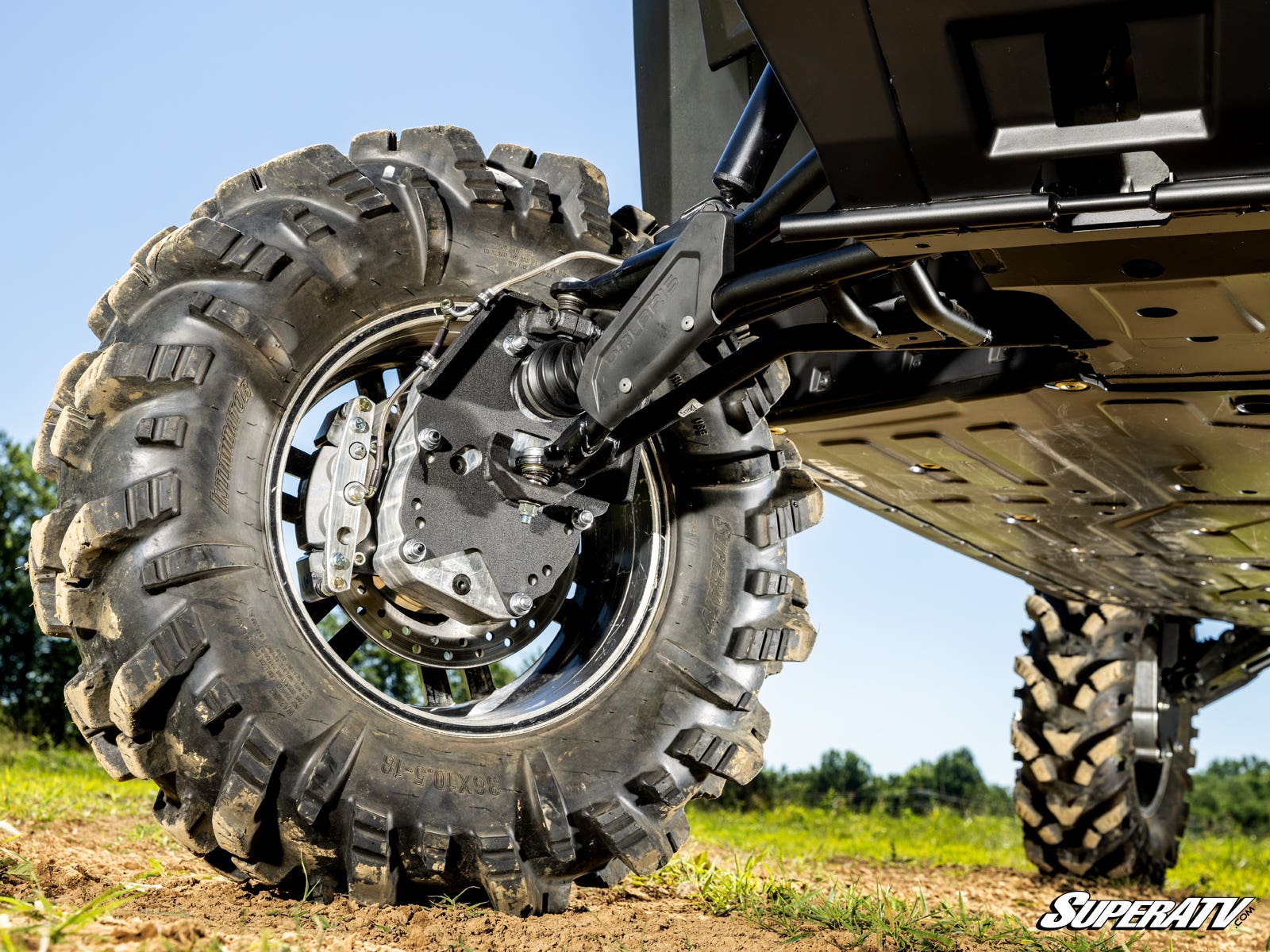

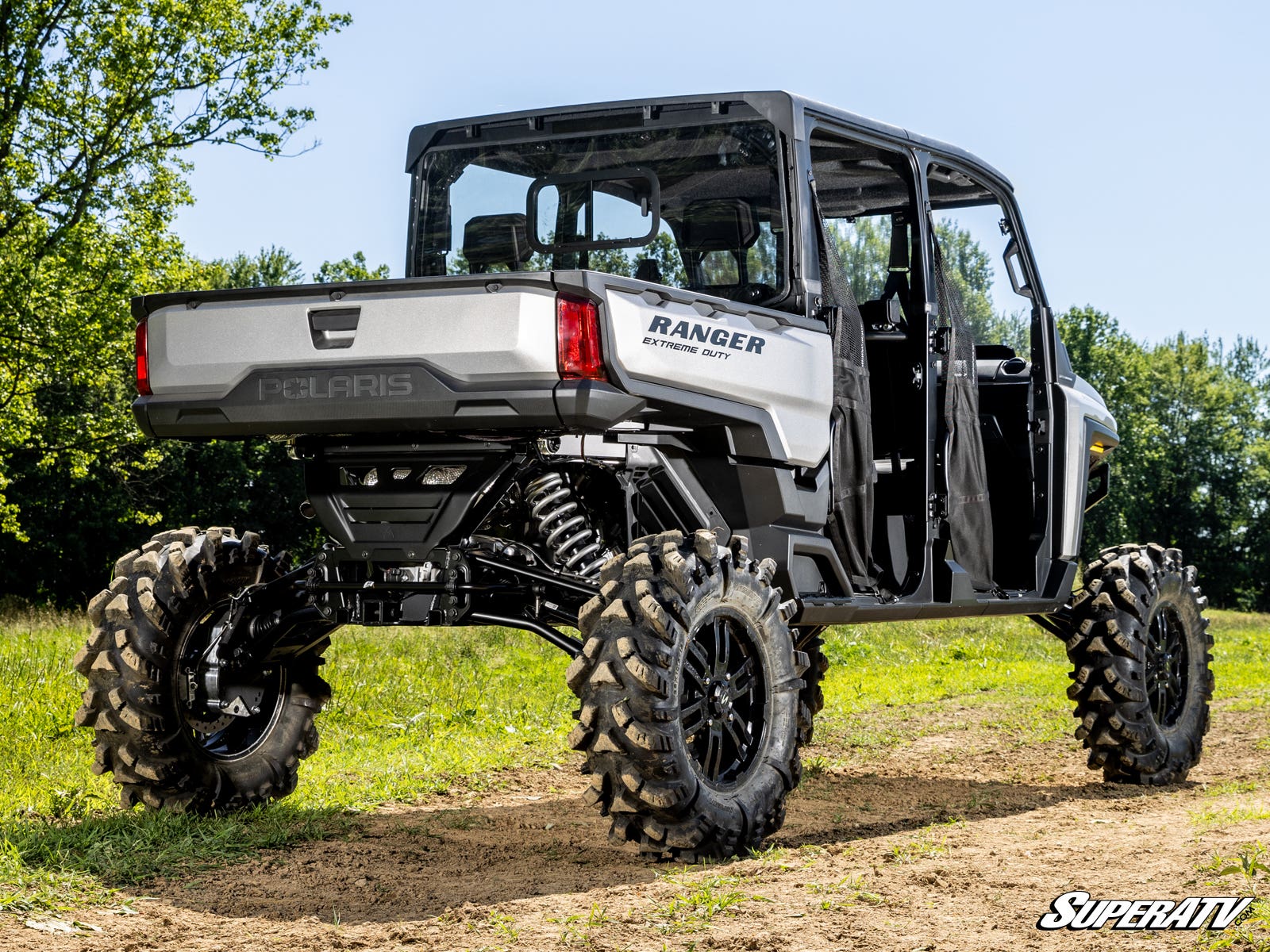

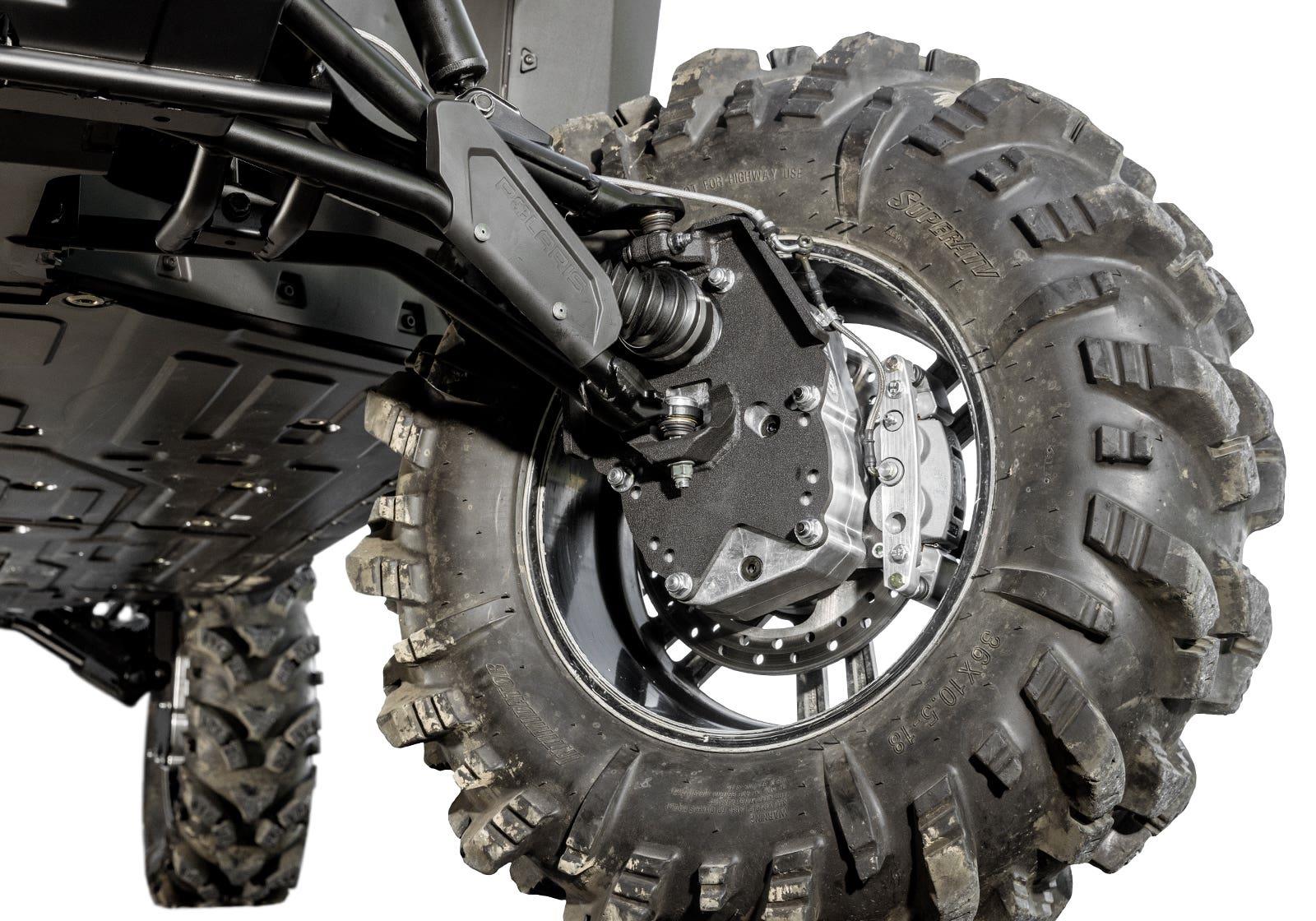

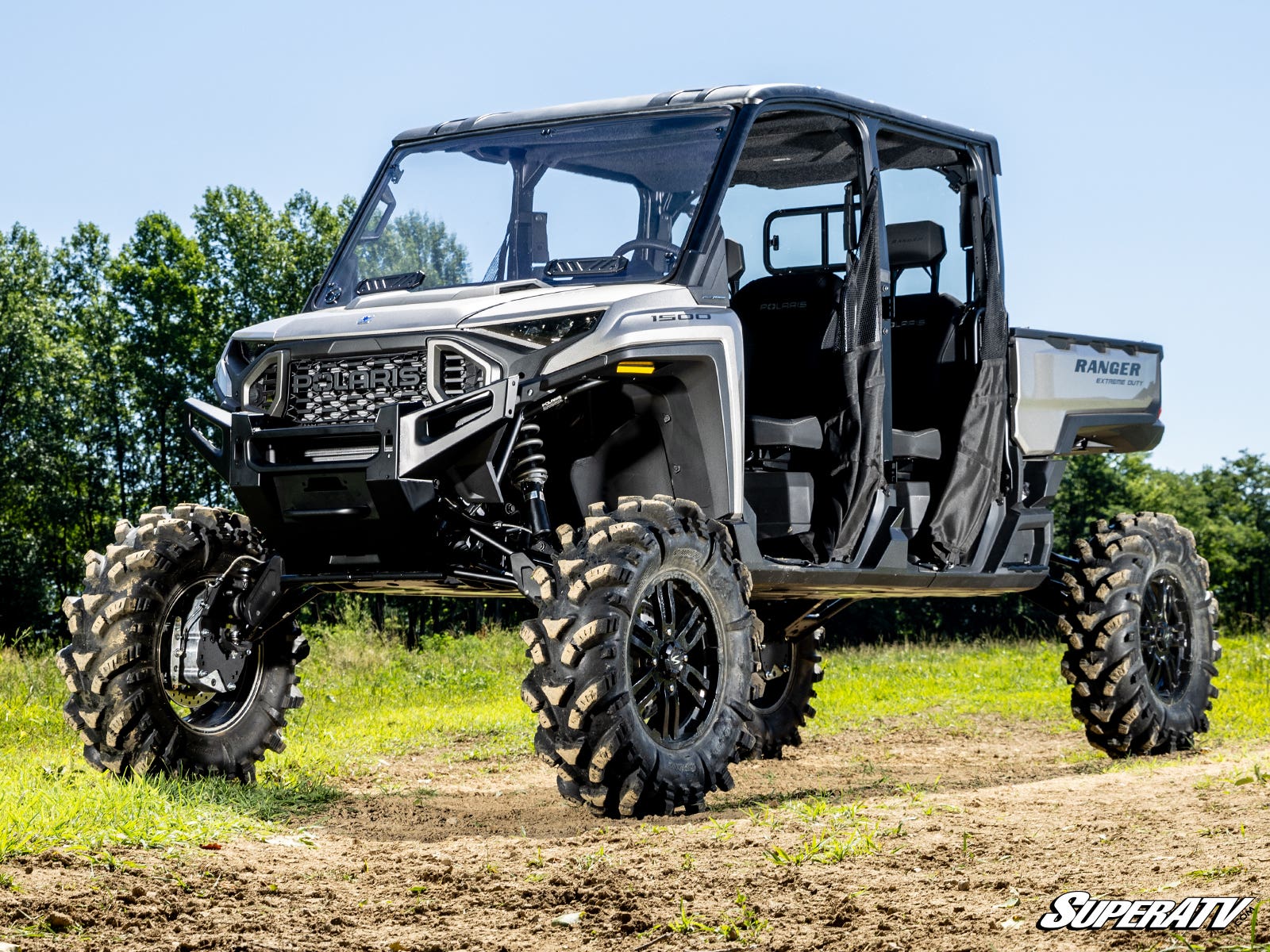

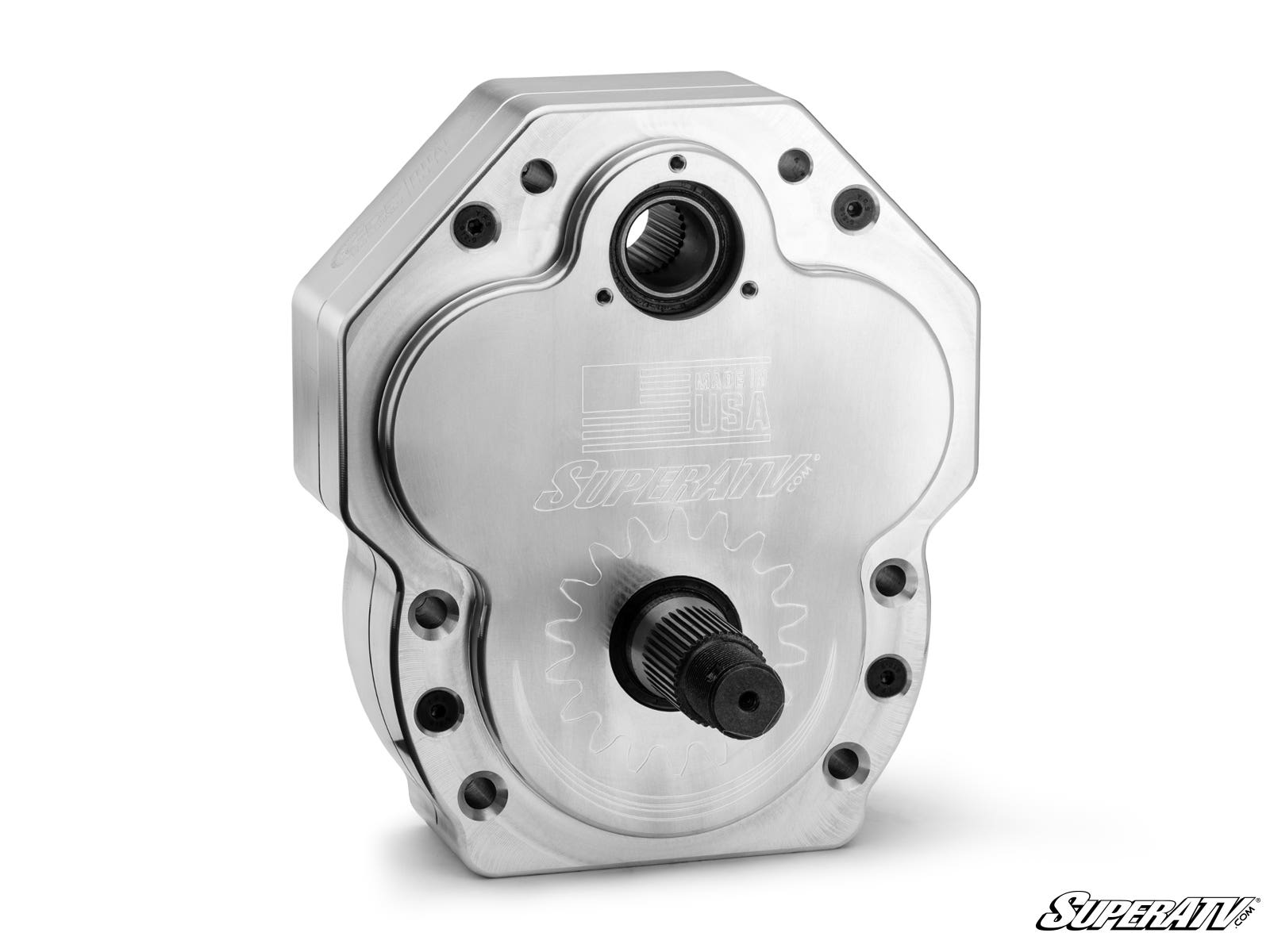

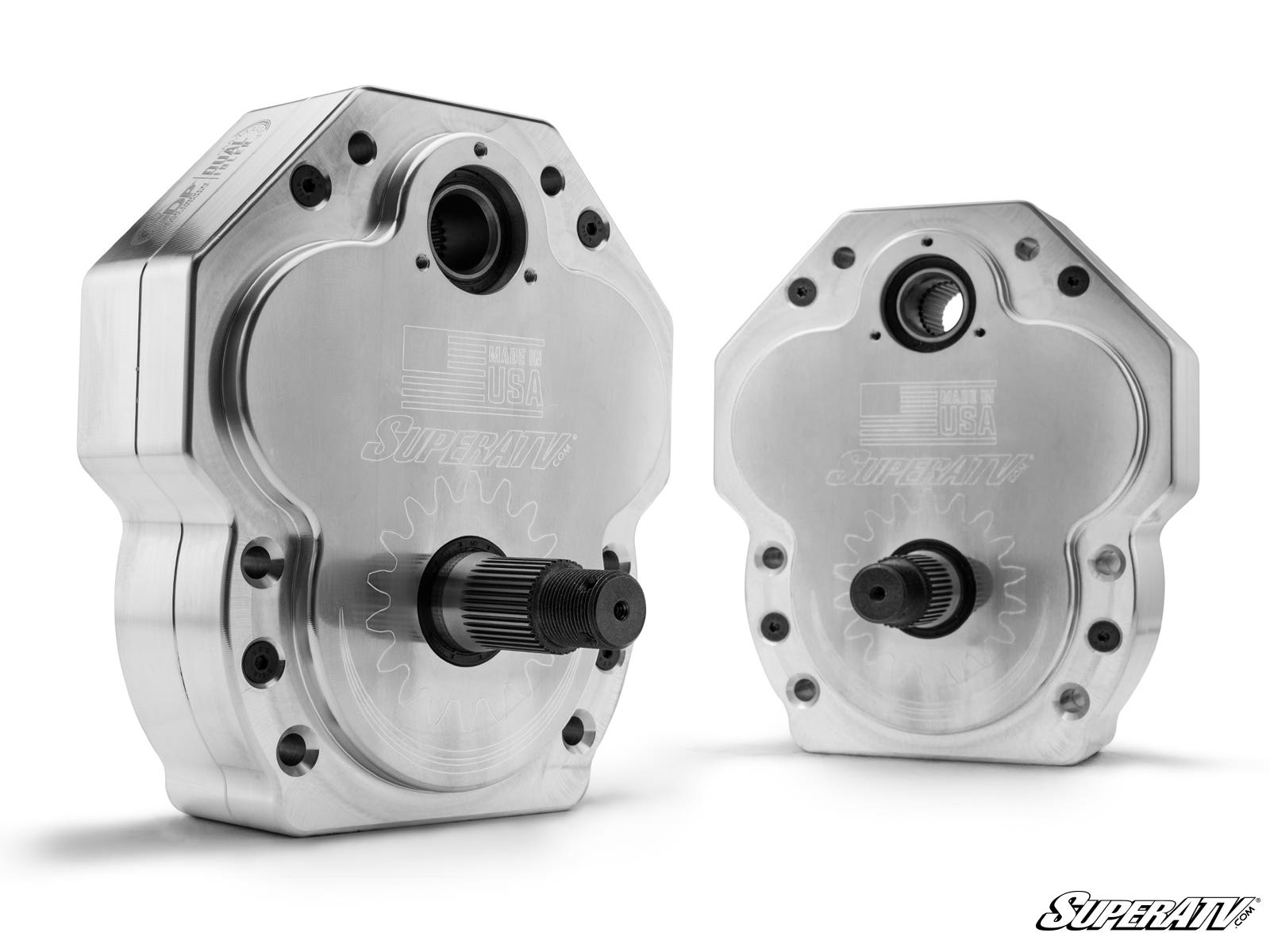

SuperATV 6in. Portal Gear Lift for Polaris Ranger XD 1500
View full product details- Fits:
- Polaris Ranger XD 1500
- Years:
- 2024, 2025, 2026
Confirm your exact model and year before ordering.

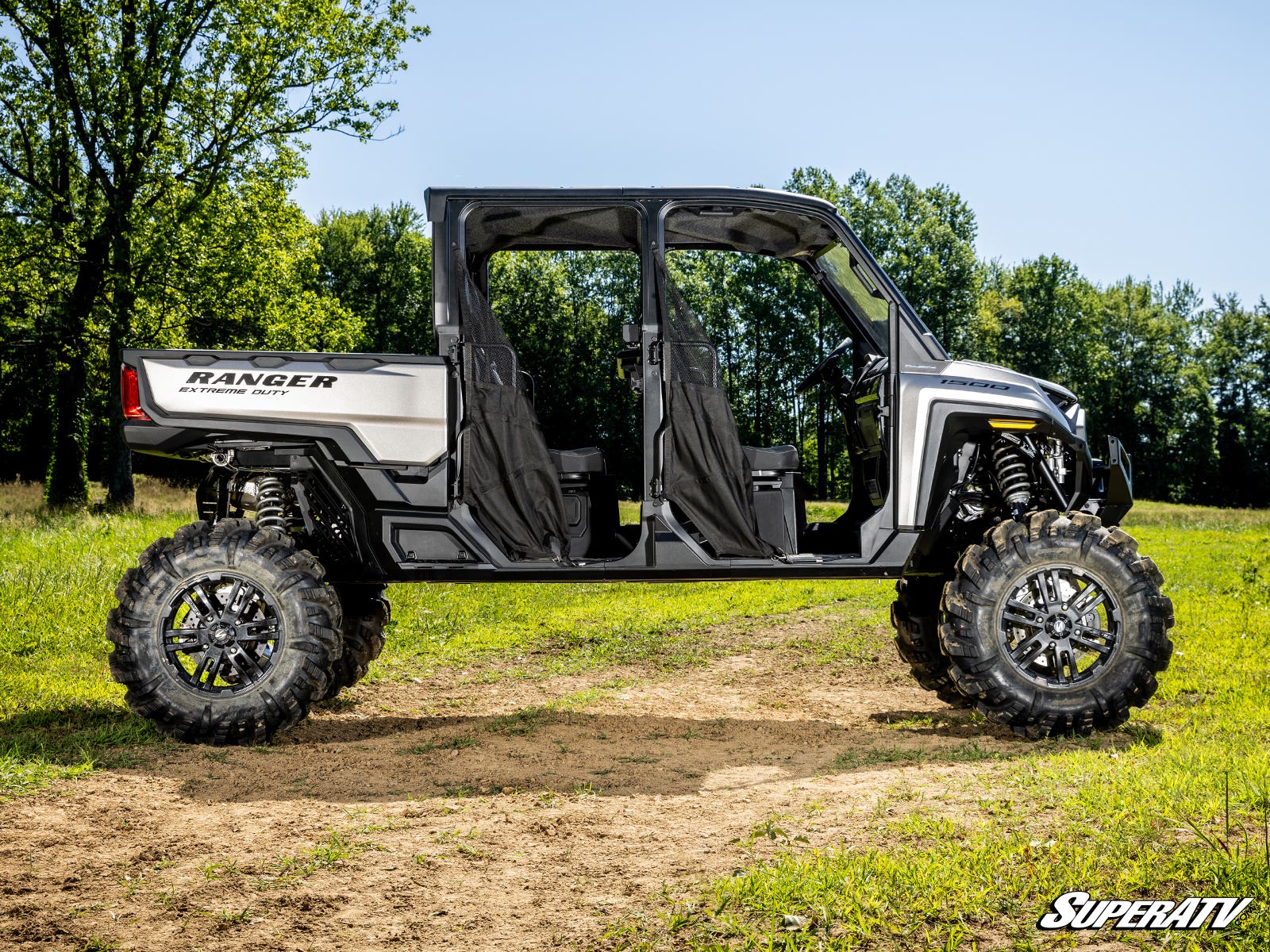

Your Ranger XD 1500 works hard and plays harder. Take its performance over the top with SuperATV's Polaris Ranger XD 1500 6 Portal Gear Lift. It's the ultimate combination of power and performance. The 6-inch lift gives you massive ground clearance and room for huge tires. For ultimate strength, upgrade to SuperATV dual idlers. Your choice of 30%, 45%, or 60% gear reductions gives you the torque to tackle muddy creeks, rocky climbs, and everything in between.

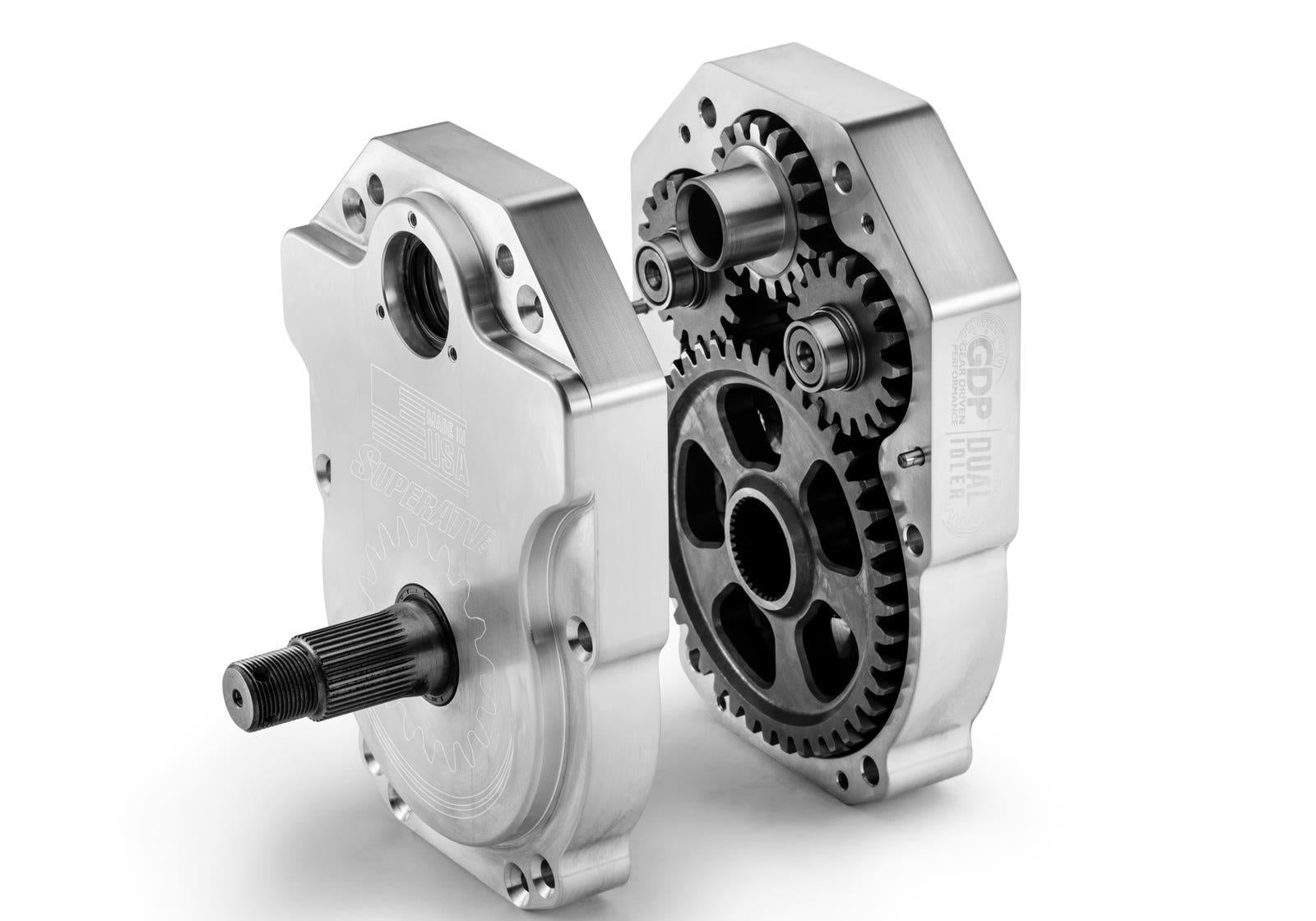

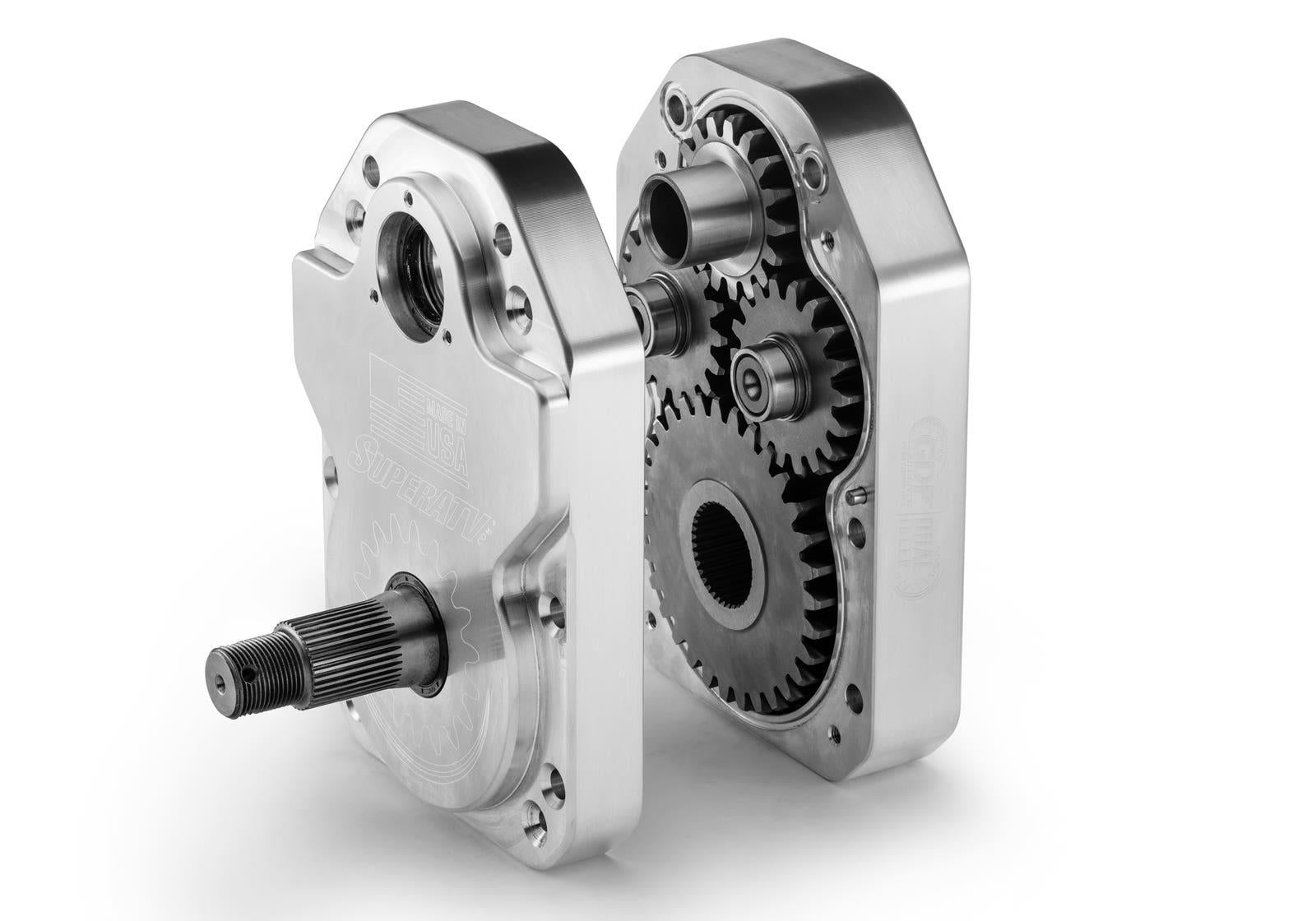

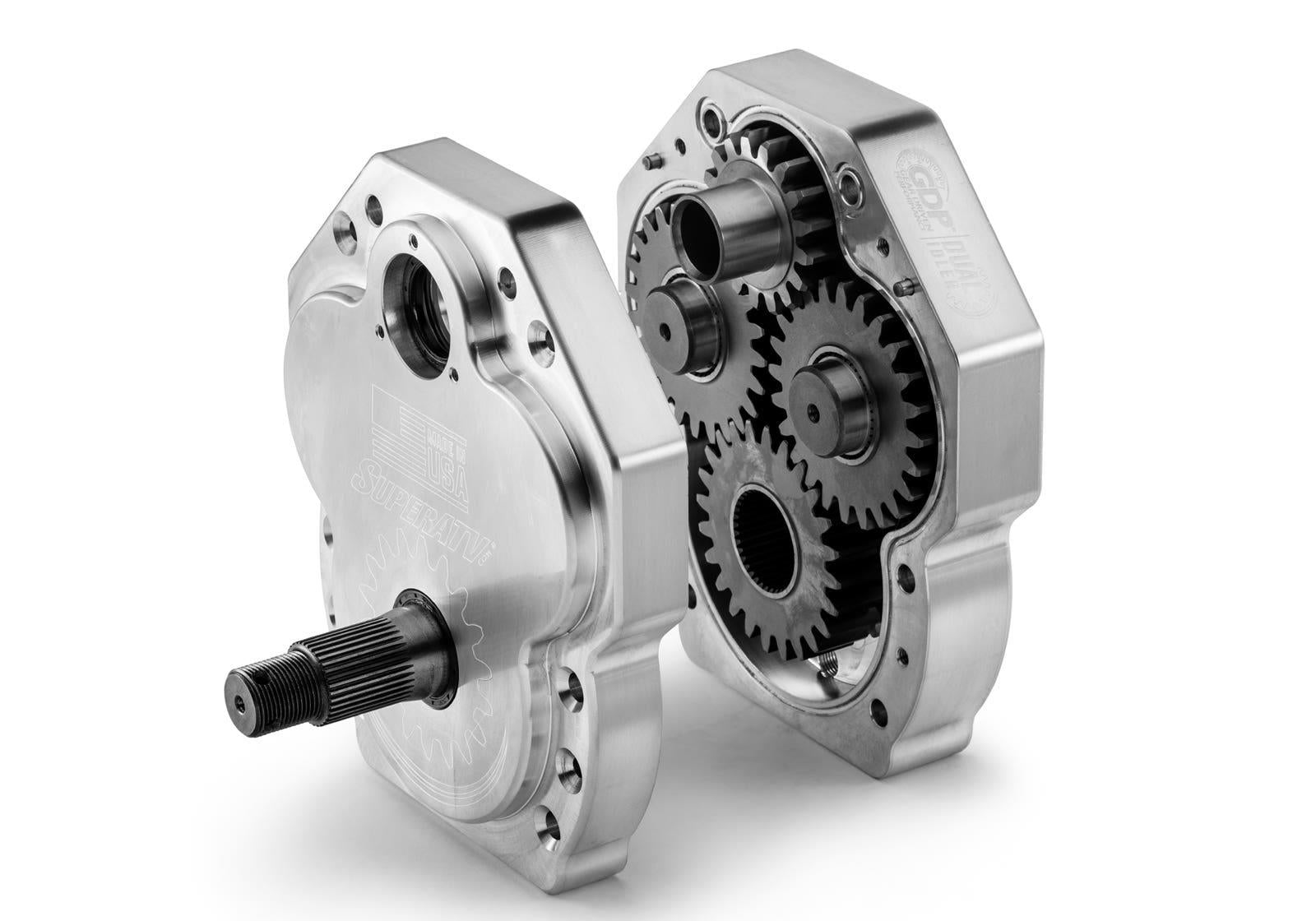

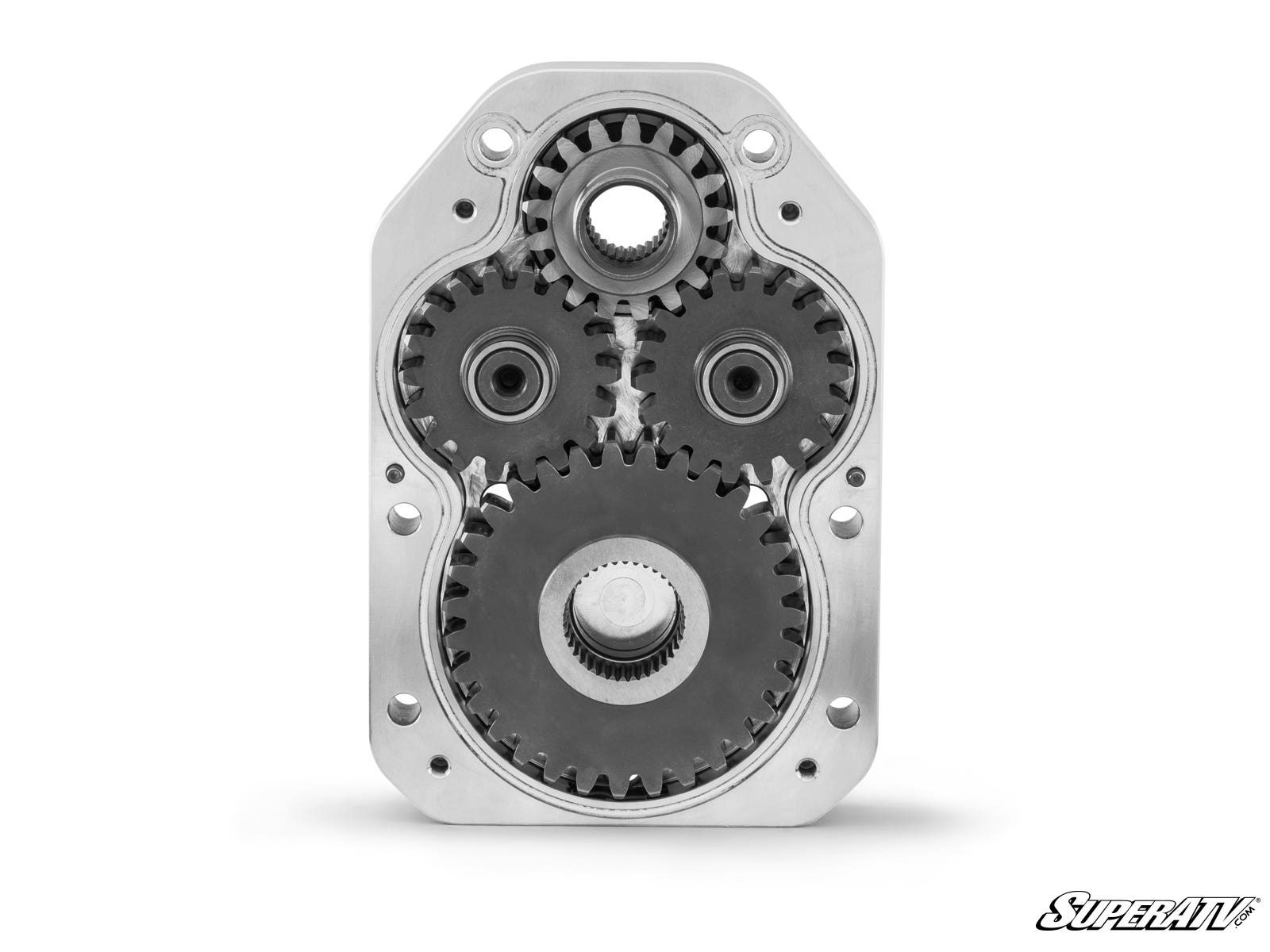

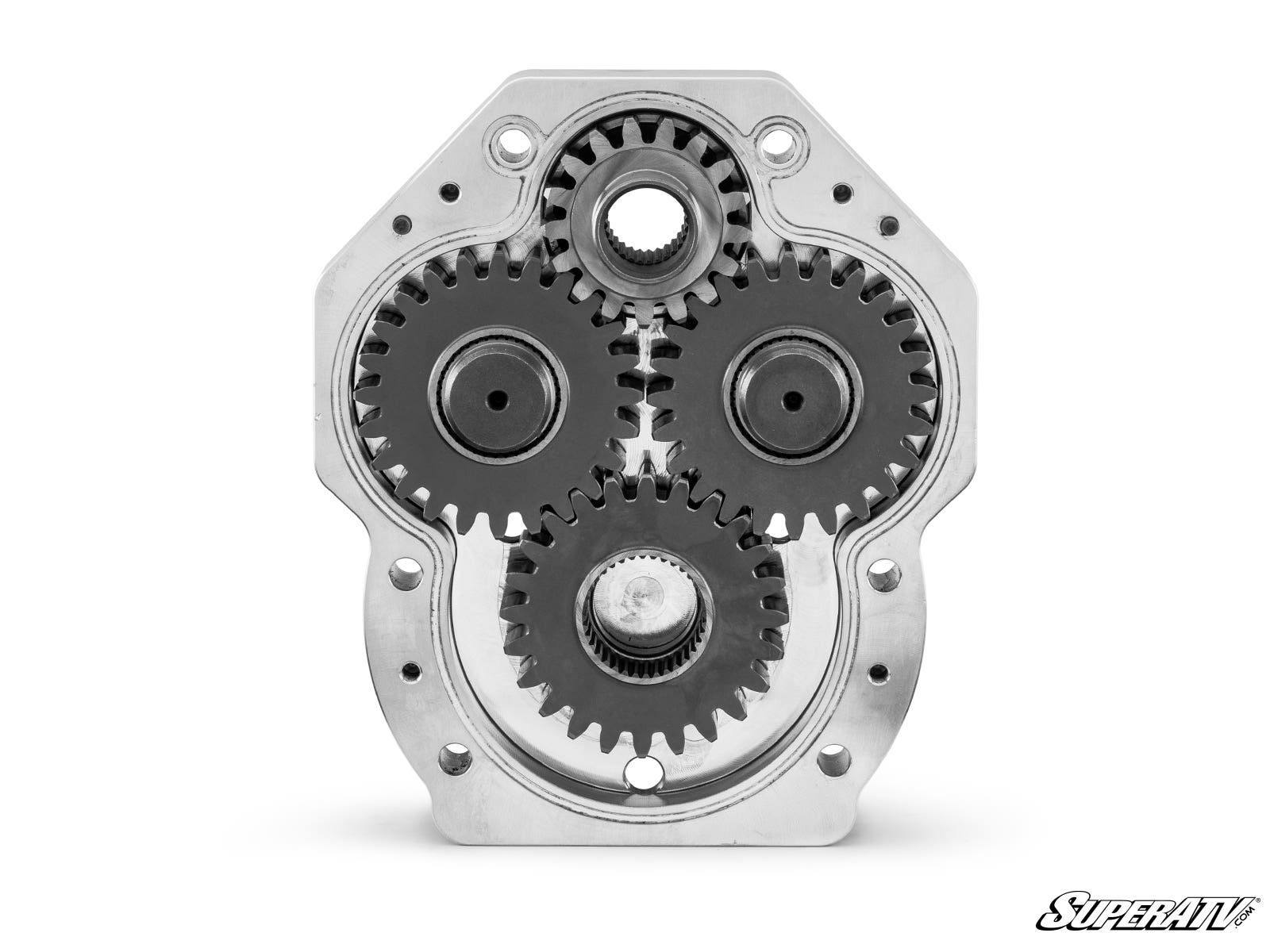

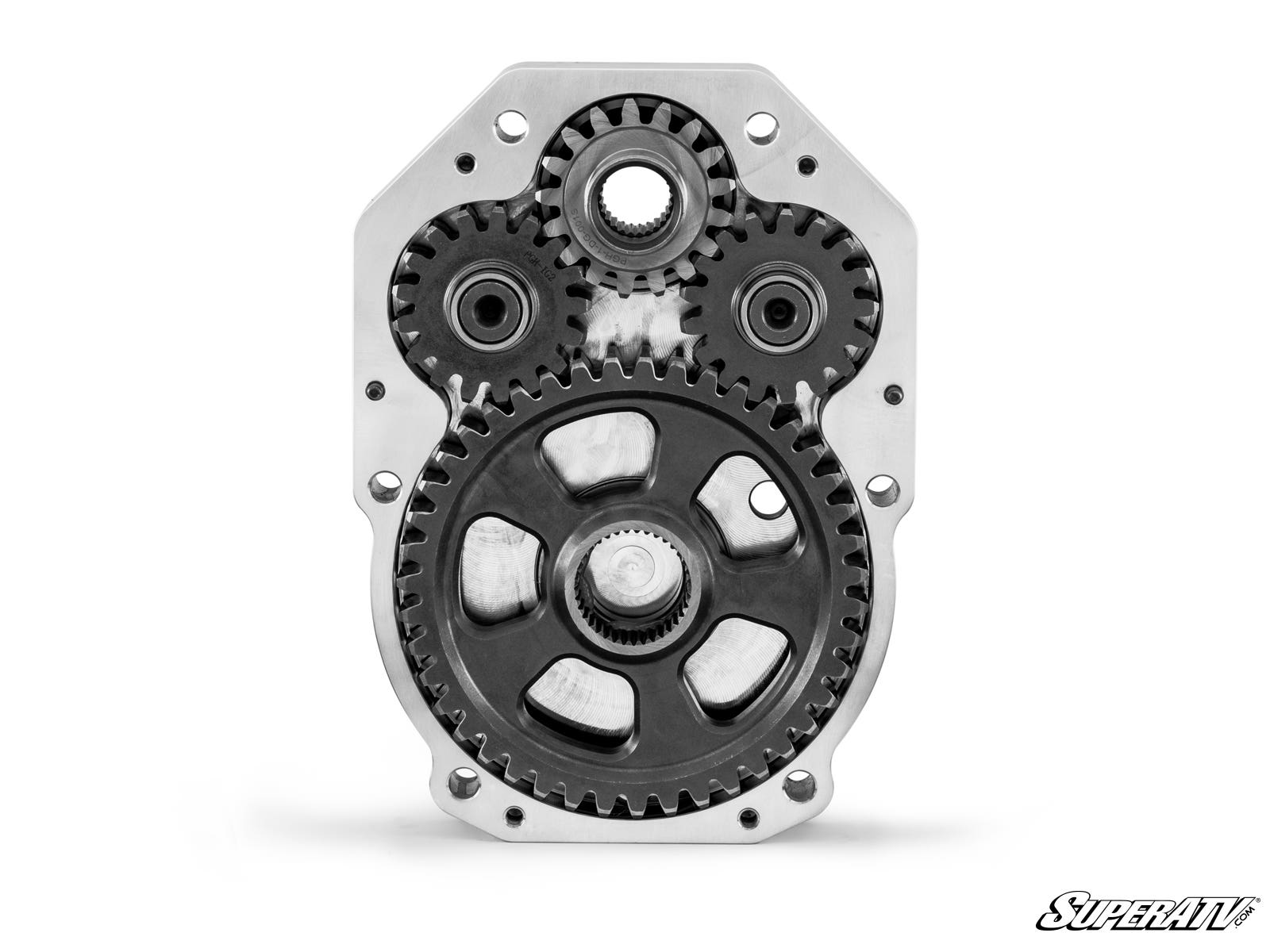

What Is a Dual Idler?
Perfection takes time. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Didn't think dual idlers mattered? With GDPs quality and experience, they finally do.
Get the Gear Reduction You Need
You ride your Ranger XD 1500 your way, so choose the gear reduction that matches your style. A 30% gear reduction balances a big torque boost with a minor reduction in top speed. If you want to use bigger tires to dominate the mud hole or creep over rocks, choose a 45% reduction.
A Gear Reduction That Protects Your Drivetrain

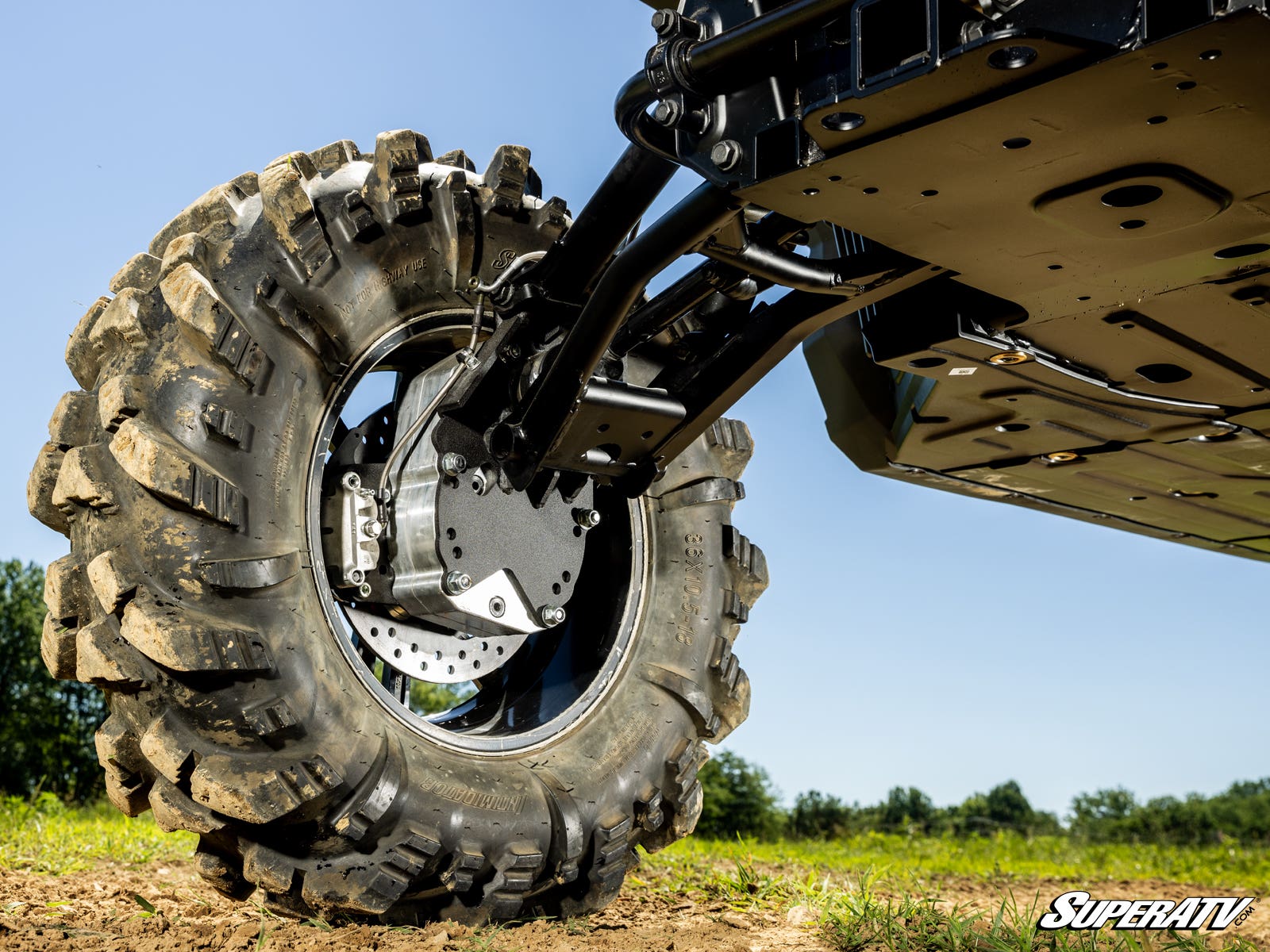

When you're throwing all that extra weight around, you can beat your drivetrain to hell. GDP Portals put the gear reduction in the hub, so your entire drivetrain gets protected from extra wear. Plus, this Ranger XD 1500 portal gear lift maintains your factory suspension to give you cooler-running axles.

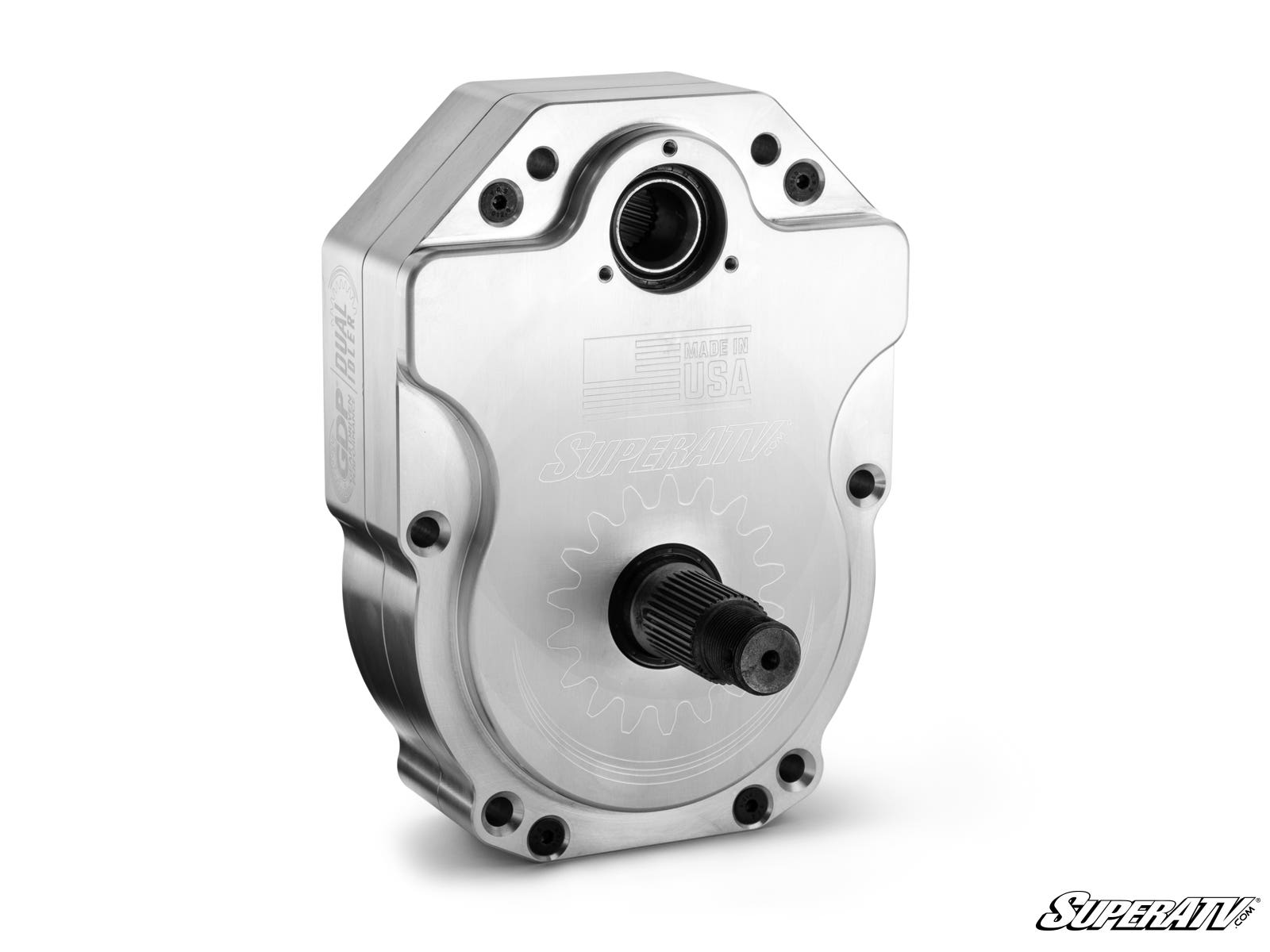

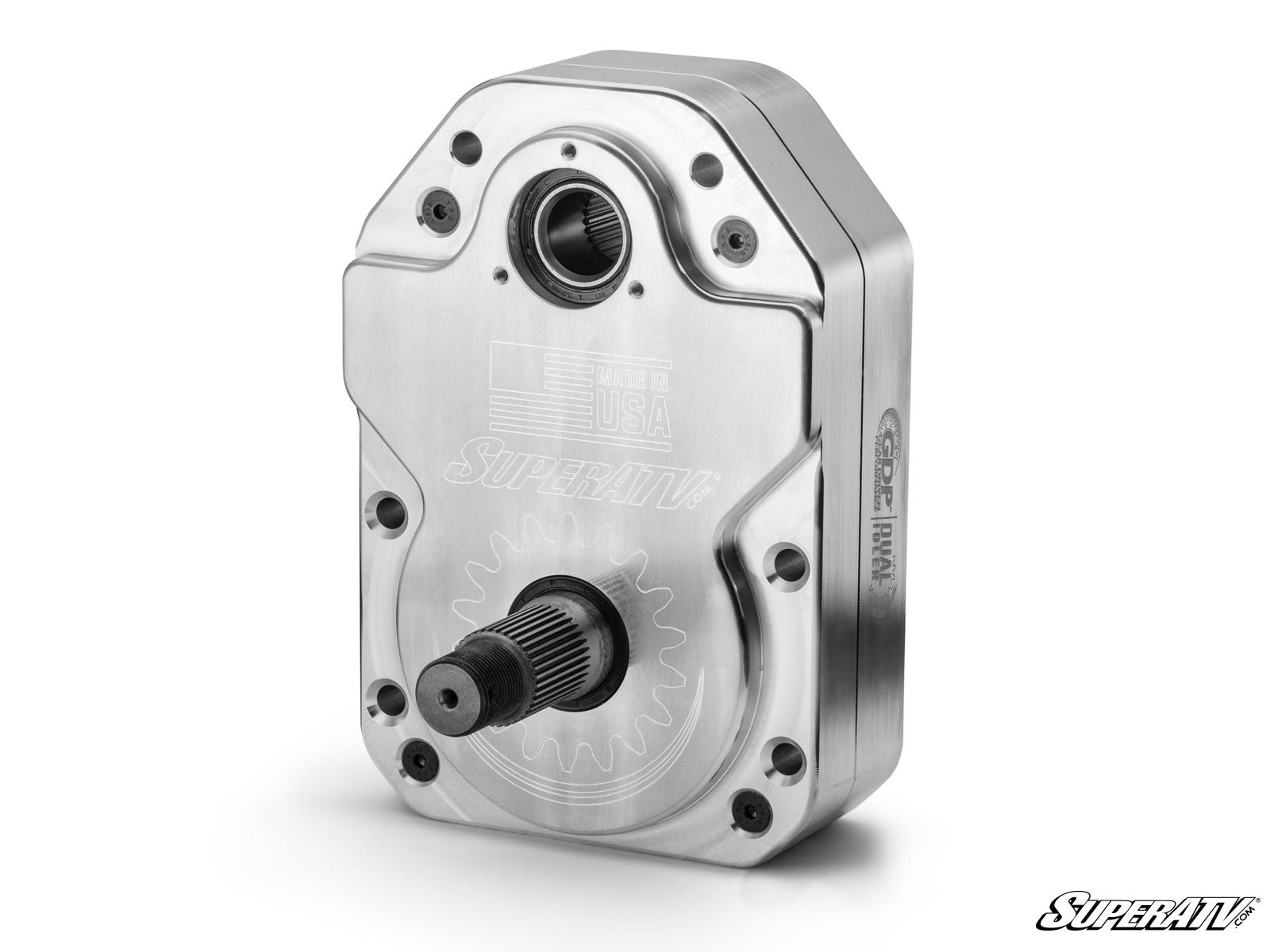

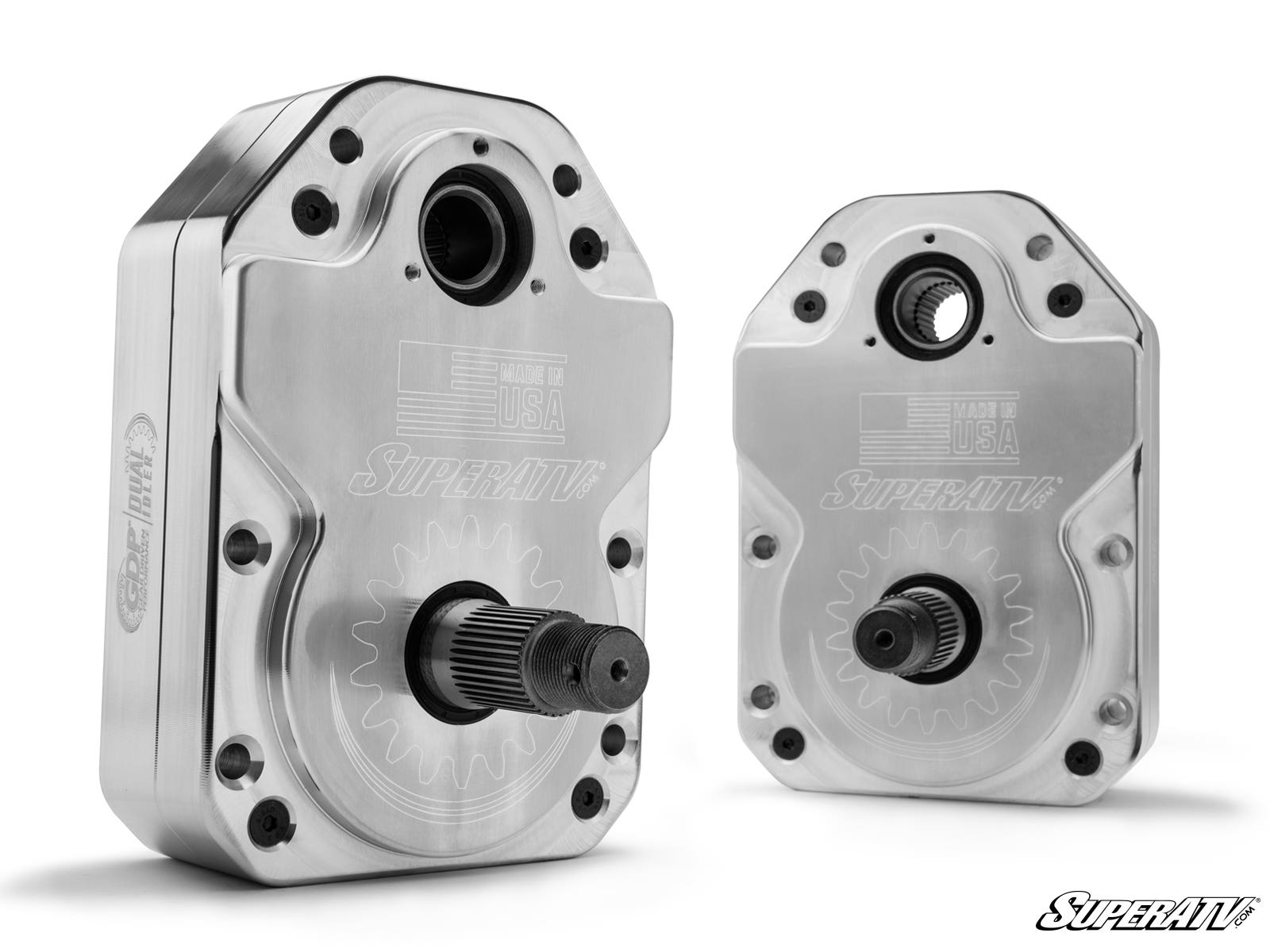

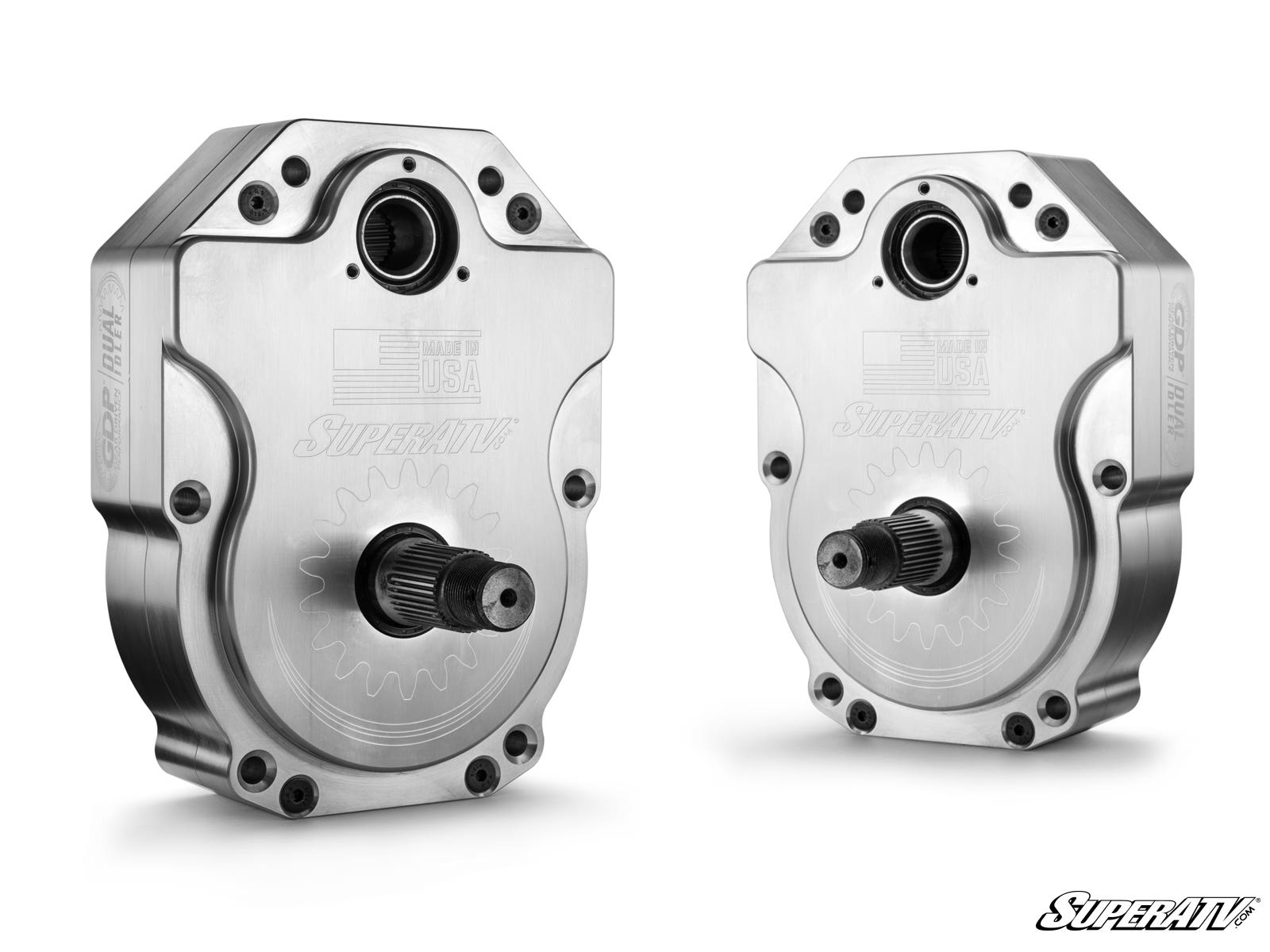

GDP Portals Are as Tough as They Get
These Ranger 1500 portals are designed for hard rides.
- SuperATV housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
- Enhance with Portal Blood - gear oil formulated for GDP Portals
Advanced Gaskets, Seals, and Bearings
SuperATV portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Add a Frame Stiffener
To keep your rig strong and ready for anything, SuperATV recommends installing a SuperATV Frame Stiffener when you add your new portals. It's tough enough to keep your frame from deforming under heavy use.

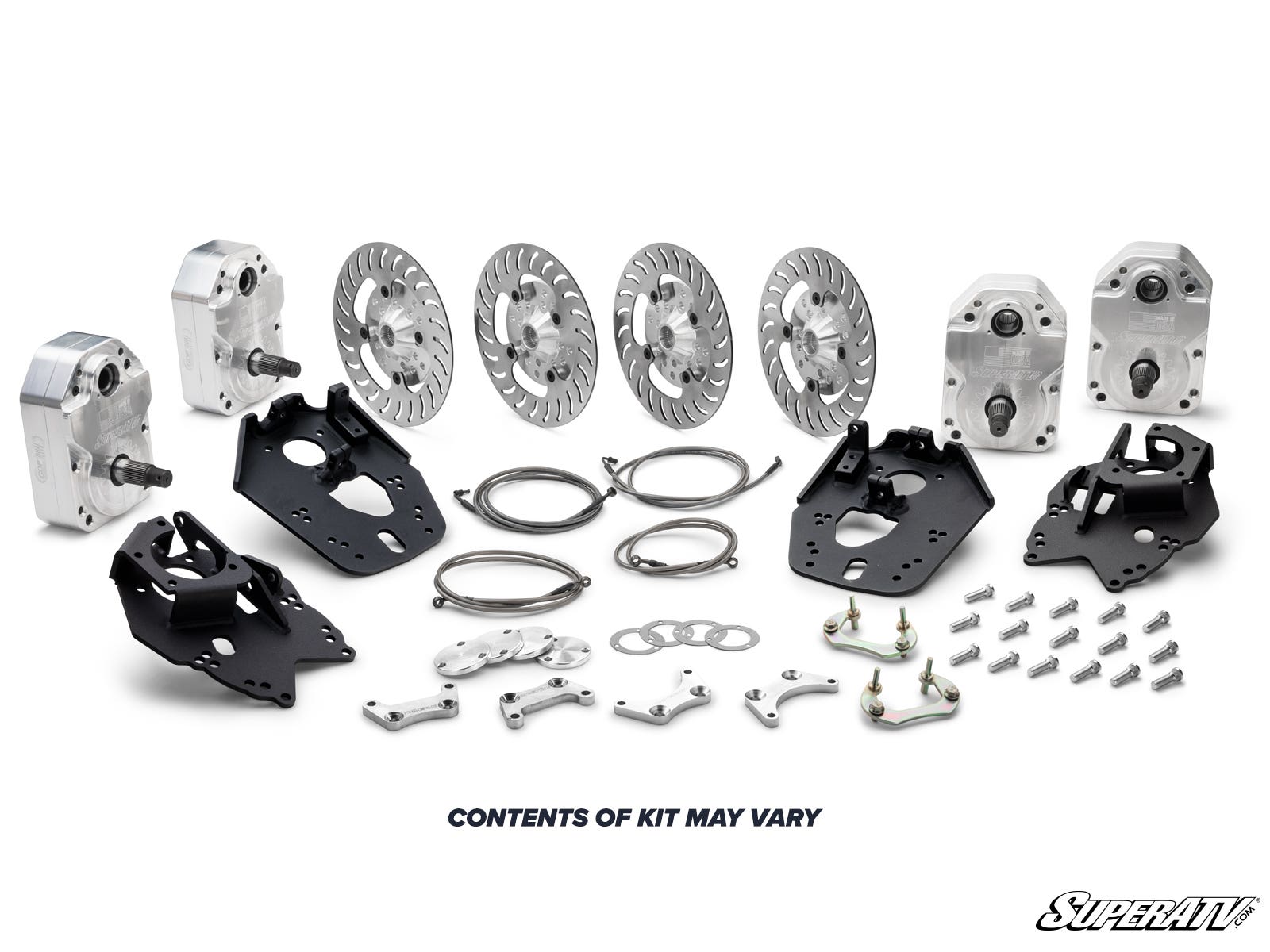

Kit Includes
- (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced gaskets, and thrust bearings
- (4) Universal hubs and stainless steel slotted rotors with lugs
- (4) Specialized steel alloy backing plates
- (4) Steel caliper mounting plates
- (8) Caliper mounting plate shims
- (2) Front caliper adapter plates
- (2) Front caliper slide pin adapters
- (4) Brake pad retaining clips
- (2) Steel steering arms
- Extended brake lines
- All required hardware, including recessed castle nut socket
- Frame stiffener (optional)
- Patent # 11,299,042
- Patent # 11,318,787
6in. Portal Gear Lift Fitment
2024-2026
- Polaris Ranger Crew XD 1500 NorthStar Premium
- Polaris Ranger Crew XD 1500 NorthStar Ultimate
- Polaris Ranger Crew XD 1500 Premium
- Polaris Ranger XD 1500 NorthStar Premium
- Polaris Ranger XD 1500 NorthStar Ultimate
- Polaris Ranger XD 1500 Premium
