SuperATV Can-Am Outlander 6in. Portal Gear Lift

SuperATV's GDP 6 Portal Gear Lift for the Can-Am Outlander gives you a lift and a gear reduction in one box. Get the clearance to run bigger tires and the torque you need to turn them. The lift and gear reduction are in the hub which means they maintain suspension geometry and reduce drivetrain stress. Customize by choosing between a 30% or 45% gear reduction and selecting a cast or billet aluminum housing.

45% - Perfect for Mud

Install big 6 portals with a 45% gear reduction to get clearance for huge tires and a massive boost in torque. It'll turn your monster tires like they're stock and take your Outlander through the biggest, thickest mud holes you can find. These portals are built for mud, and you'll see why when you're plowing through bounty holes on an ATV that rips.

45% - Perfect for Rocks

Put 6 portals and a 45% gear reduction on your machine and get the torque you need crawl over rocks like they're not even there. You'll have the clearance to get over anything without scratching up your skid plate, and you'll have room to run bigger tires. These portals are built for boulders.

30% - Perfect for Everything

A 30% gear reduction lets you turn bigger tires and gives you the versatility to run mud, dominate trails and hills, and maintain high speed on the road. It gets your power to the ground to make your ATV more versatile no matter what you put them through.

Better Gears

That means they're cool and quiet even when you're hammering down the throttle on the road. They have strength to handle technical crawls, high speeds, and big mistakes.

Stronger Housings By Design

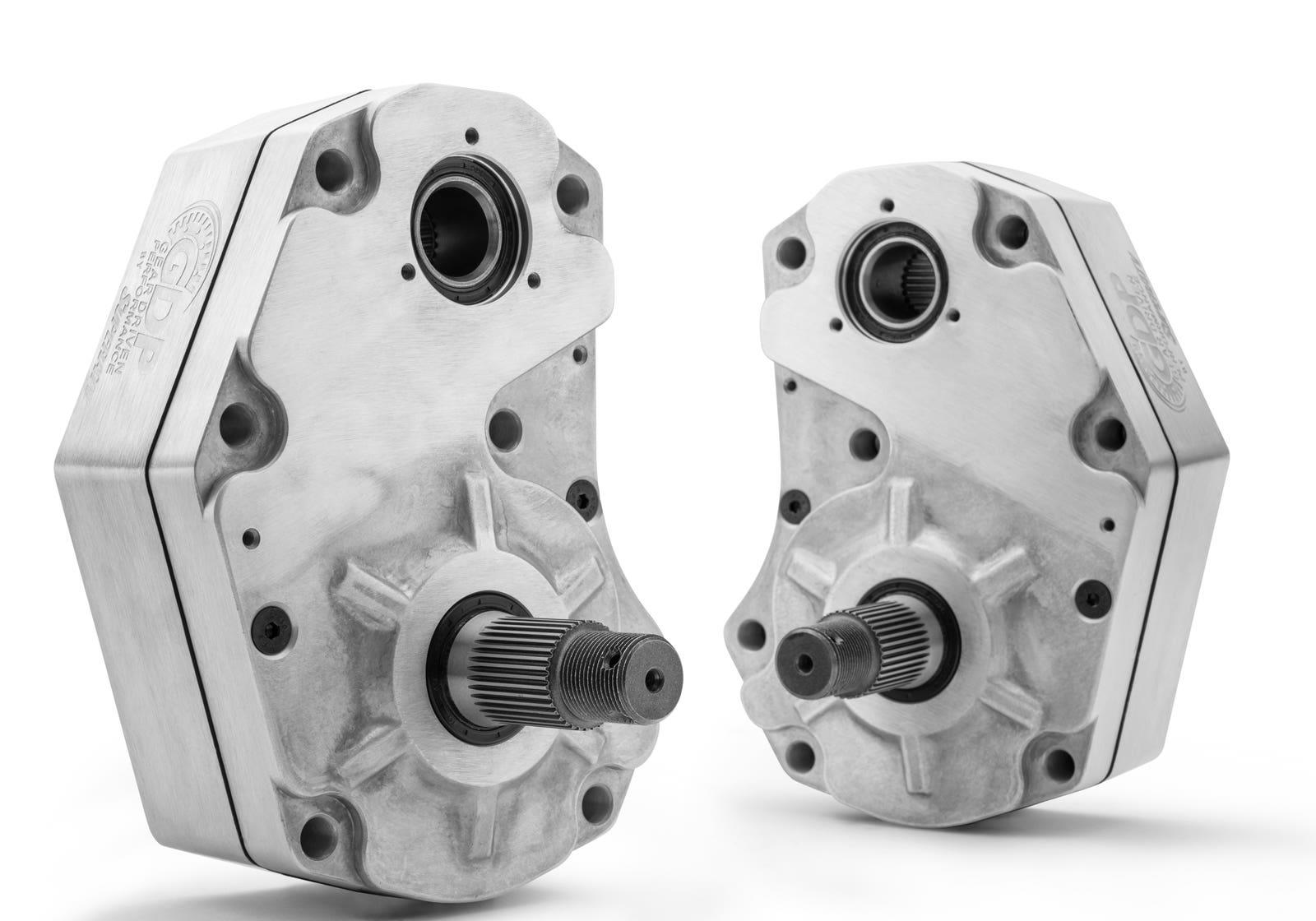

Portal housings are complex pieces of hardware that require precise design and manufacturing to maximize strength. That means whether you opt for SuperATV USA-made, billet aluminum housings or SuperATV affordable cast aluminum housings, you know you're getting a box that can stand up to tons of abuse.

• SuperATV housings are reinforced in all the right places
• They're built with better oil flow and gearing forces in mind

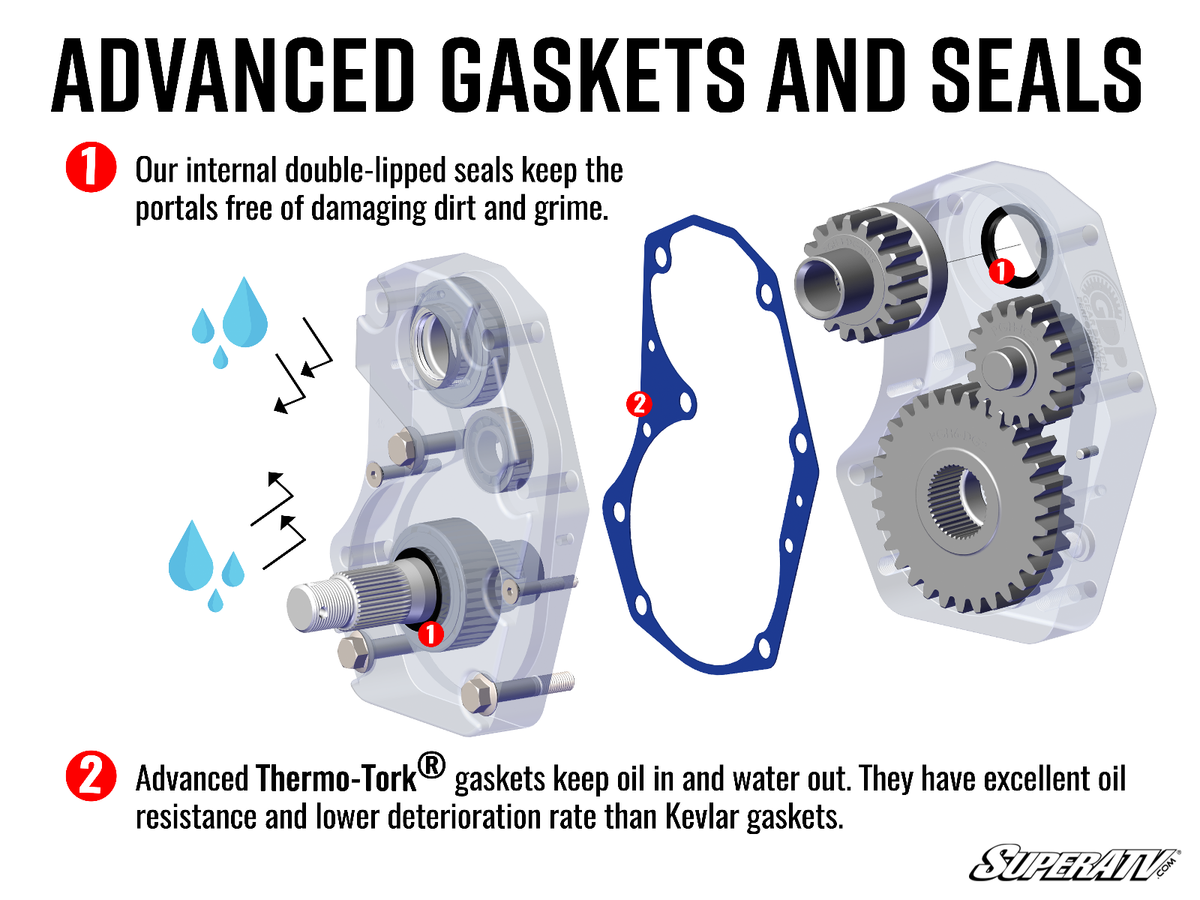

Advanced Gaskets and Seals

Whether you go with cast or billet, both housings use:

• Advanced gaskets with excellent oil resistance and a lower deterioration rate than Kevlar gaskets
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks

2012-2018 Outlander 6 Portal Gear Lift Includes

• (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with ith lugs
• (4) Specialized steel alloy backing plates
• (3) Steel caliper mounting plates
• (3) Caliper mounting plate shims
• (2) Steel steering arms
• (2) Extended rear trailing arms
• Extended brake lines
• All required hardware, including recessed castle nut socket

2019+ Outlander 6 Portal Gear Lift Includes

Patent # 8,985,264, 11,299,042, 11,554,662, 12,005,776.

• (4) Assembled portal hub complete with 9310 gears, seals, output shaft, advanced, and thrust bearings
• (4) Universal hubs and stainless steel slotted rotors with ith lugs
• (4) Specialized steel alloy backing plates
• (3) Steel caliper mounting plates
• (3) Caliper mounting plate shims
• (2) Steel steering arms
• (2) Extended Trailing arms (only if SATV trailing arms are not already installed)
• Extended brake lines
• All required hardware, including recessed castle nut socket
