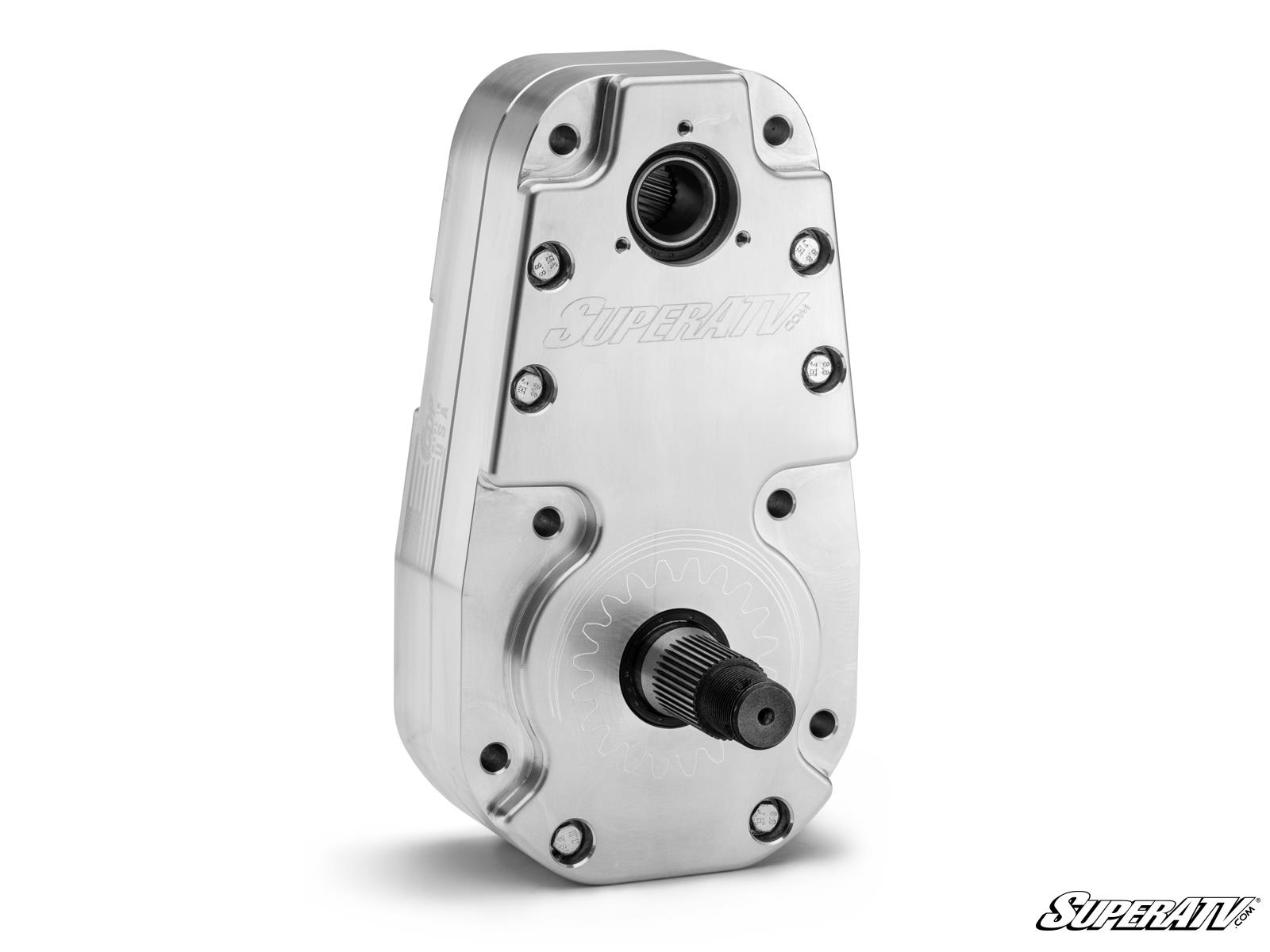

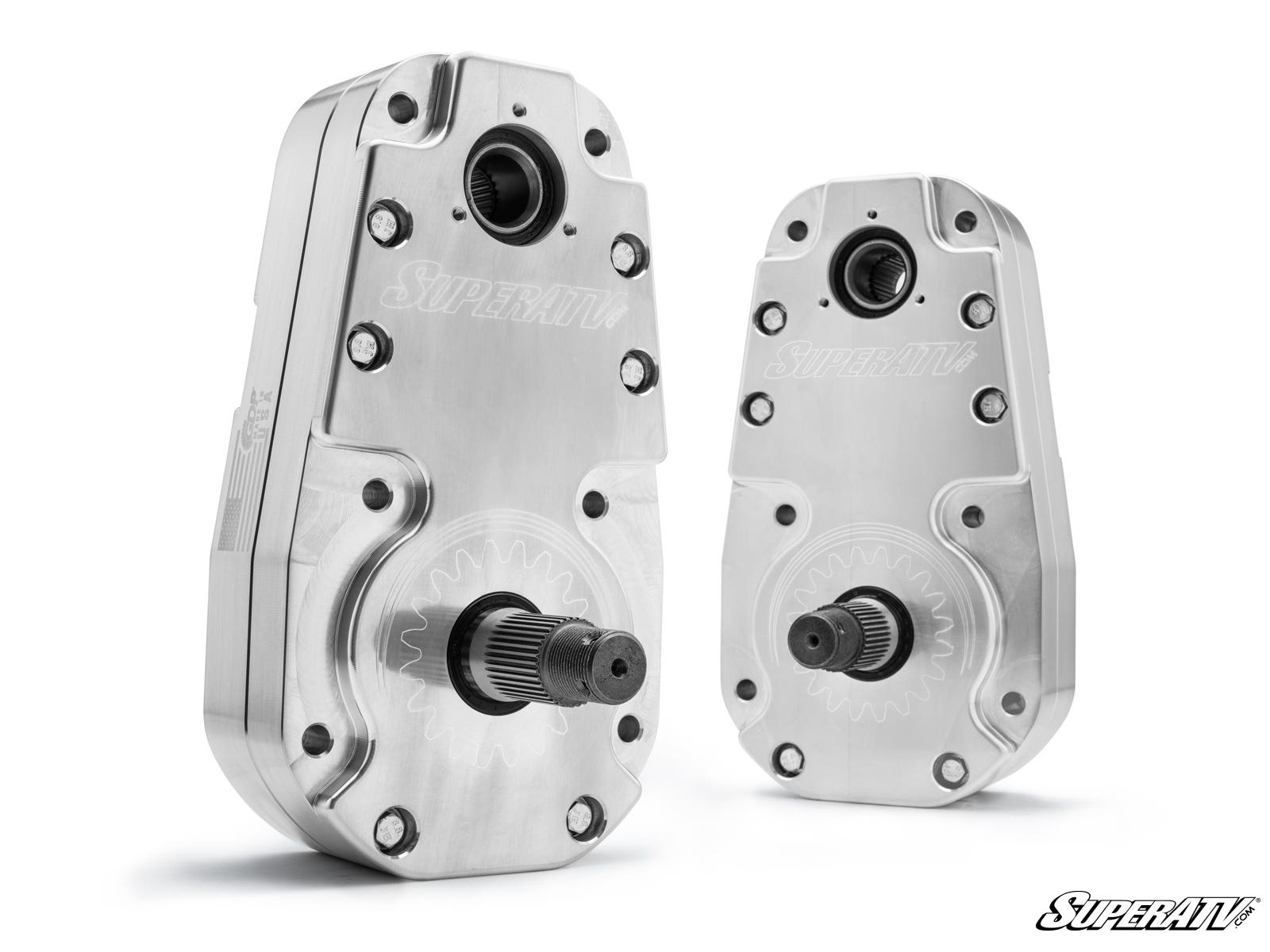

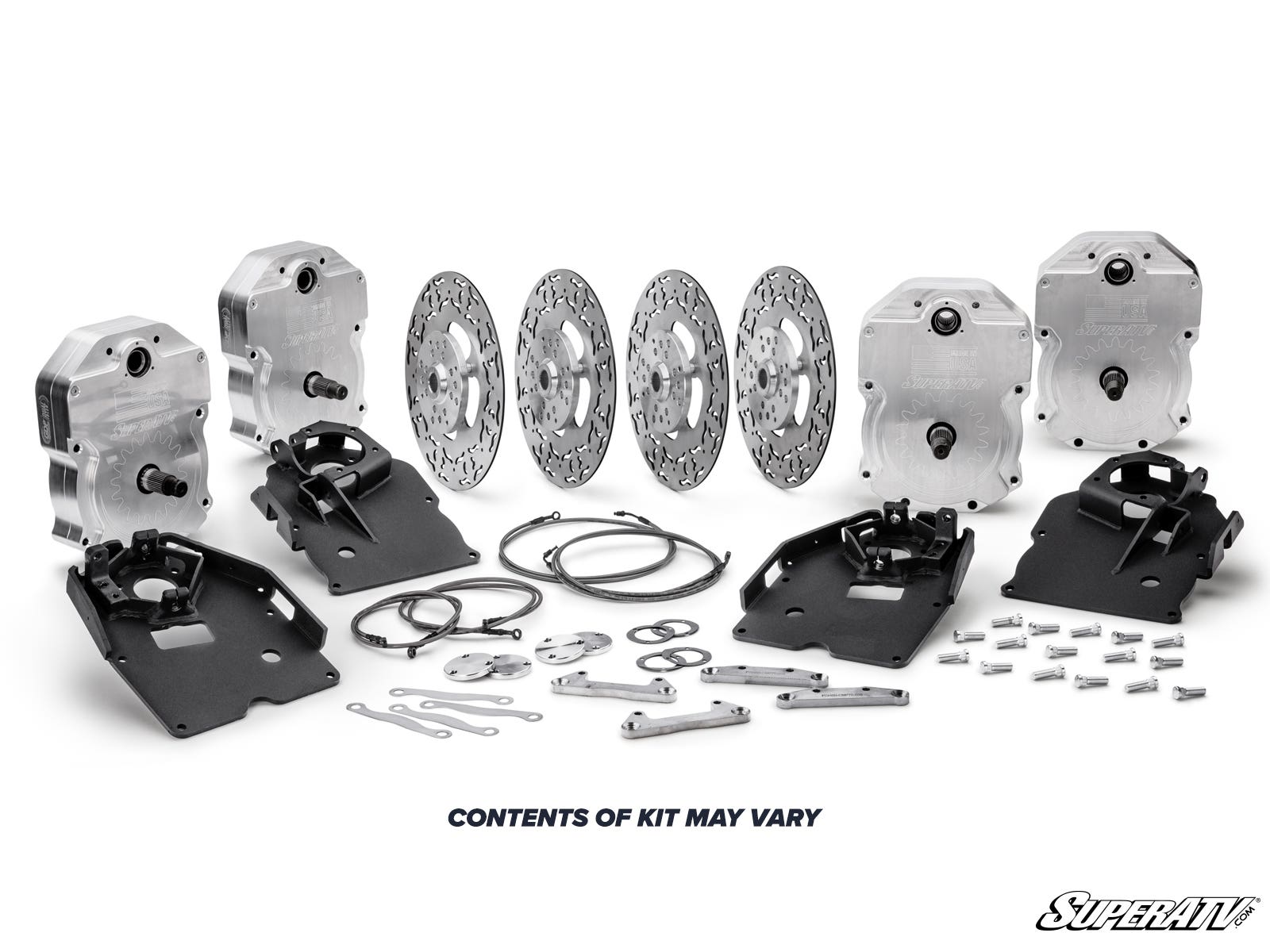

SuperATV 8in. Portal Gear Lift for Can-Am Maverick X3

That's a heck of a lot of room for up to 40 tires and a ton of torque thanks to the built-in gear reduction. Choose from 45%, 60%, and 70% reductions and boost your durability by upgrading to dual idler gears - you get portals built for you. Your Can-Am Maverick X3 will feel like a whole new machine when you're towering over the competition and throwing up rooster tails better than anybody else.

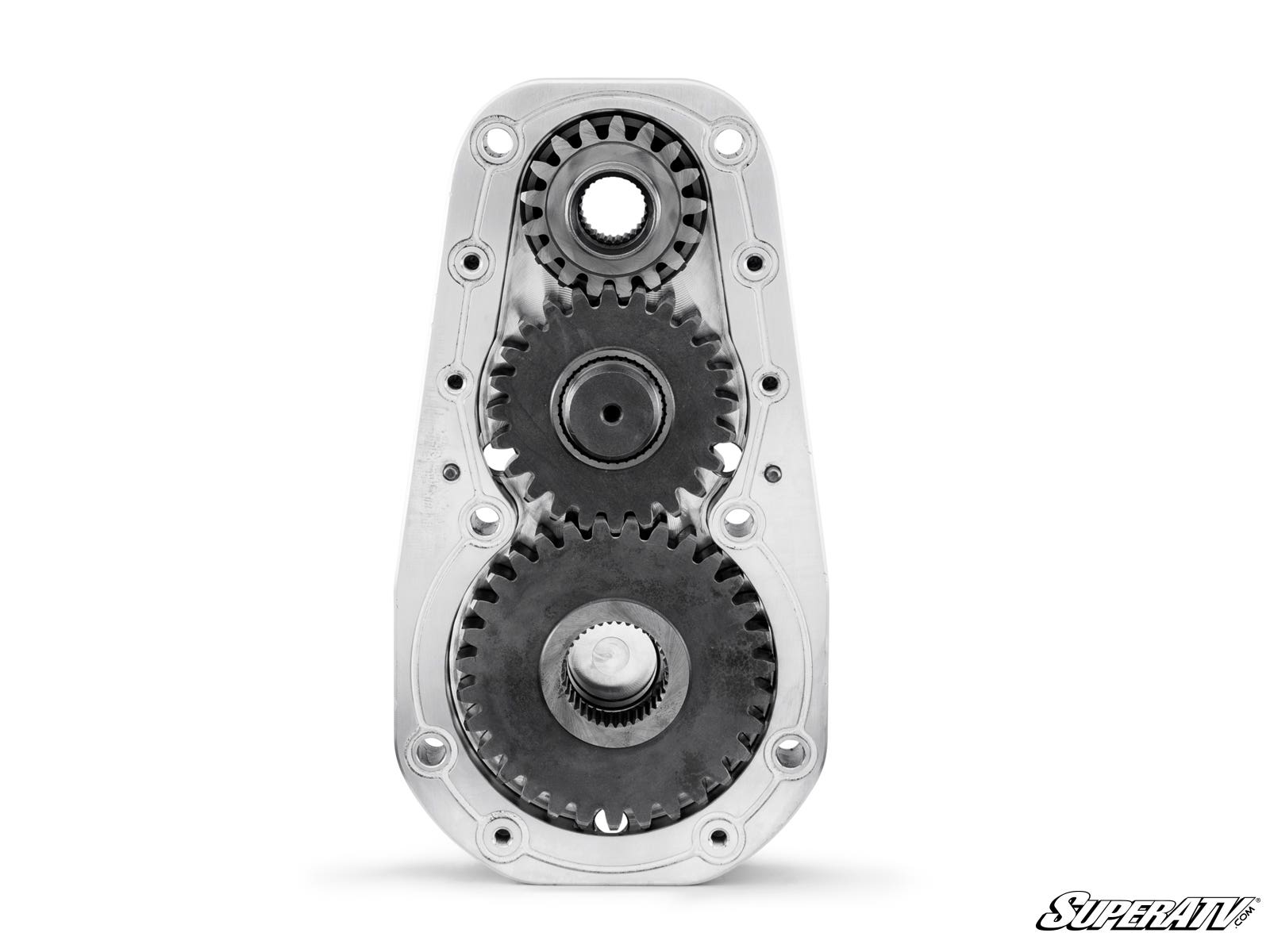

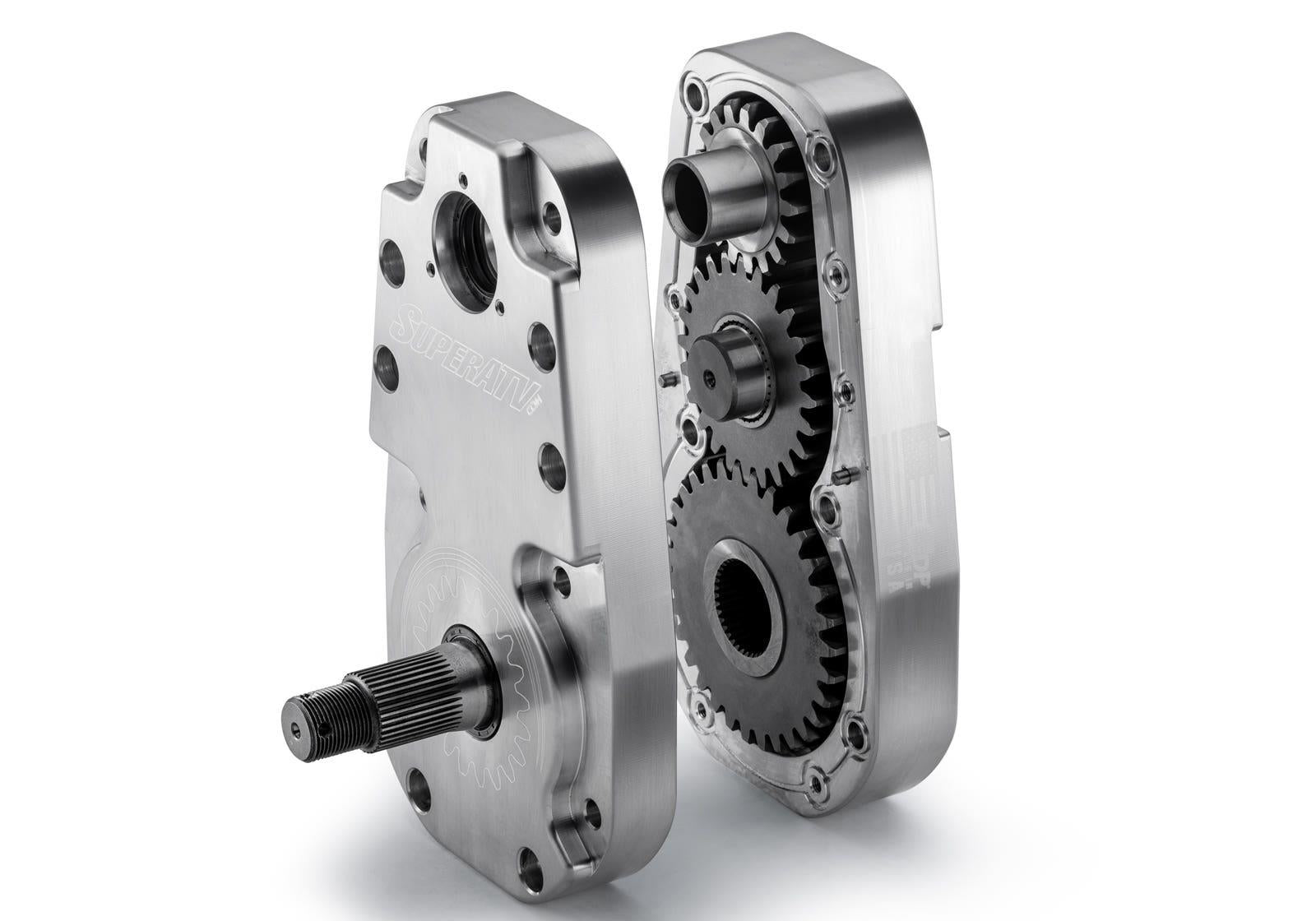

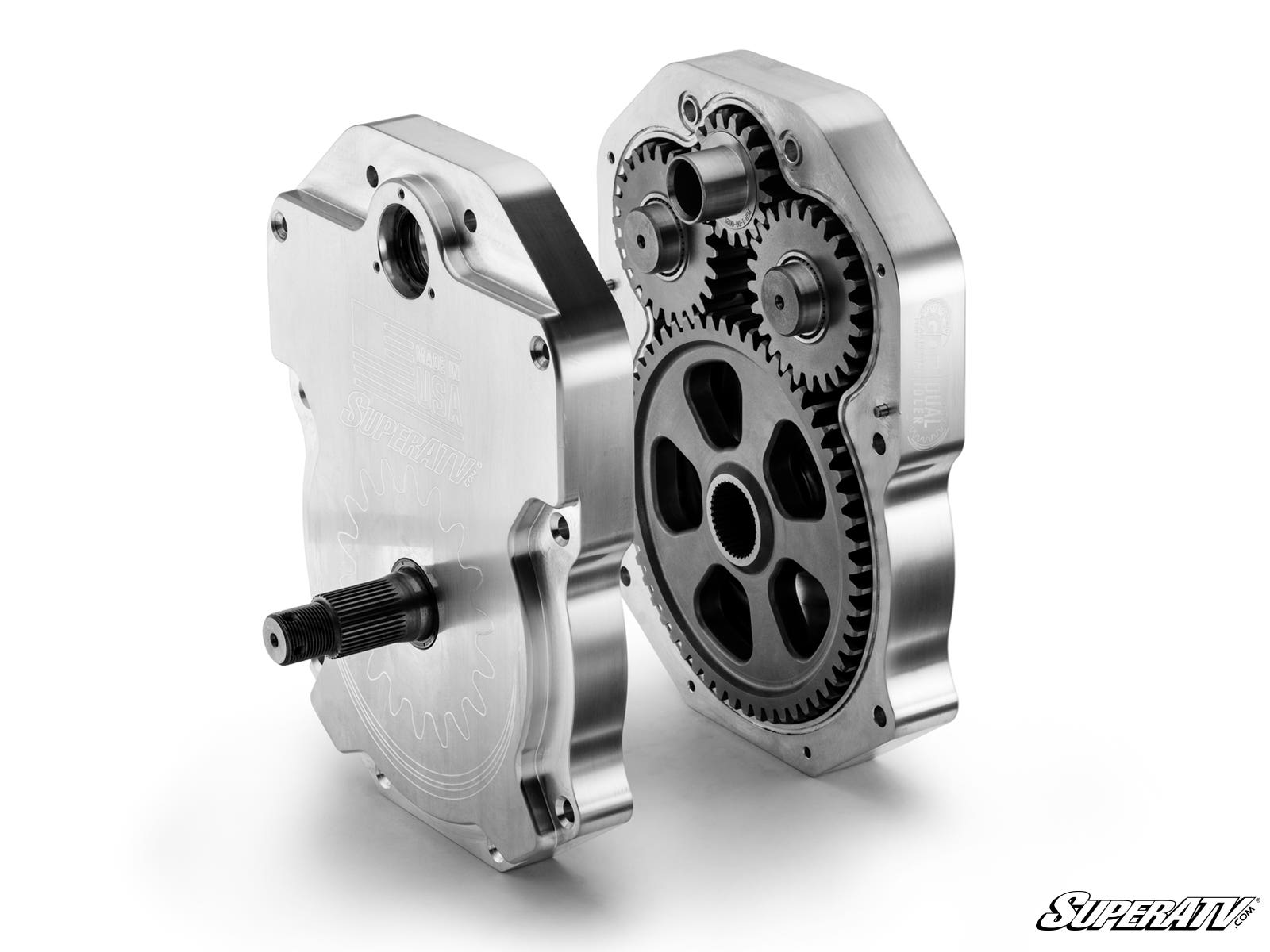

What Is a Dual Idler®?

Perfection takes time. By placing a second idler gear in the portal box, the load gets spread over twice as much surface area for more reliable torque transfer and the strongest gear set you can get. Two idler gears don't do a thing if they're not mated perfectly, though. Didn't think dual idlers mattered? With GDPs quality and experience, they finally do.

45%, 60%, and 70% Gear Reductions Are Perfect for Mud

What's the first thing you need if you're serious about mud? A big lift. The second thing? Some big ass tires of course and the gear reduction to turn them. You'll have room to install huge 40 tires. And the 45, 60, and 70% gear reductions give you the most extreme torque to tear up the bounty hole. That way, you can push through and ride over deeper, thicker mud holes and take home the bounty.

A Gear Reduction That Protects Your Drivetrain

Portals put the gear reduction right in the hub. That puts it after your entire drivetrain and it makes your drivetrain work less and wear less. That means more miles out of your axles, differential, transmission, and prop shafts.

Stronger Housings and Backing Plates By Design

Whether you go with cast or USA-made, 6061 billet aluminum housings (which look awesome), you'll get unmatched strength through superior design.

• SuperATV housings are reinforced for gear retention and optimized for oil flow
• Advanced steel alloy backing plates are stronger than chromoly

Advanced Gaskets, Seals, and Bearings

SuperATV portals use:

• Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
• A sealed input gear and double-lipped output seal
• 100% sealing coverage throughout so you can forget about oil leaks
• Double-angular contact output bearings to prevent premature wear
• Roller idler and drive bearings to maintain perfect gear meshing

Frame Stiffener Required

You need a SuperATV Frame Stiffener with your 8 Portal Gear Lift. The stock frame just doesn't have what it takes. Bump too hard and the OEM frame will bend. A frame stiffener reinforces your frame enough to let you ride your 8 portals with monster tires and no worries.

8in. Portal Gear Lift Fitment

2017-2019

• Can-Am Maverick X3 MAX X DS Turbo

2017-2020

• Can-Am Maverick X3 MAX Turbo
• Can-Am Maverick X3 MAX X RS Turbo
• Can-Am Maverick X3 Turbo
• Can-Am Maverick X3 X DS Turbo R
• Can-Am Maverick X3 X RS Turbo R

2018

• Can-Am Maverick X3 900

2018-2019

• Can-Am Maverick X3 X MR Turbo R

2018-2020

• Can-Am Maverick X3 MAX Turbo R
• Can-Am Maverick X3 MAX X RS Turbo R
• Can-Am Maverick X3 Turbo R
• Can-Am Maverick X3 X RC Turbo R

2018-2021

• Can-Am Maverick X3 X MR Turbo
• Can-Am Maverick X3 X RC Turbo

2019-2021

• Can-Am Maverick X3 MAX X MR Turbo R

2020

• Can-Am Maverick X3 MAX X DS Turbo R

2020-2021

• Can-Am Maverick X3 MAX X DS Turbo RR
• Can-Am Maverick X3 MAX X MR Turbo RR
• Can-Am Maverick X3 MAX X RS Turbo RR
• Can-Am Maverick X3 X DS Turbo RR
• Can-Am Maverick X3 X MR Turbo RR
• Can-Am Maverick X3 X RC Turbo RR
• Can-Am Maverick X3 X RS Turbo RR

2021

• Can-Am Maverick X3 DS Turbo R
• Can-Am Maverick X3 MAX DS Turbo R
• Can-Am Maverick X3 MAX RS Turbo R
• Can-Am Maverick X3 RS Turbo R

2022-2026

• Can-Am Maverick X3 DS Turbo 64
• Can-Am Maverick X3 DS Turbo RR 64
• Can-Am Maverick X3 MAX DS Turbo 64
• Can-Am Maverick X3 MAX DS Turbo RR 64
• Can-Am Maverick X3 MAX RS Turbo RR 72
• Can-Am Maverick X3 MAX X DS Turbo RR 64
• Can-Am Maverick X3 MAX X MR Turbo RR 72
• Can-Am Maverick X3 MAX X RS Turbo RR 72
• Can-Am Maverick X3 MAX X RS Turbo RR w/ Smart-Shox 72
• Can-Am Maverick X3 RS Turbo RR 72
• Can-Am Maverick X3 X DS Turbo RR 64
• Can-Am Maverick X3 X MR Turbo RR 64
• Can-Am Maverick X3 X MR Turbo RR 72
• Can-Am Maverick X3 X RC Turbo RR 64
• Can-Am Maverick X3 X RC Turbo RR 72
• Can-Am Maverick X3 X RS Turbo RR 72
• Can-Am Maverick X3 X RS Turbo RR w/ Smart-Shox 72
