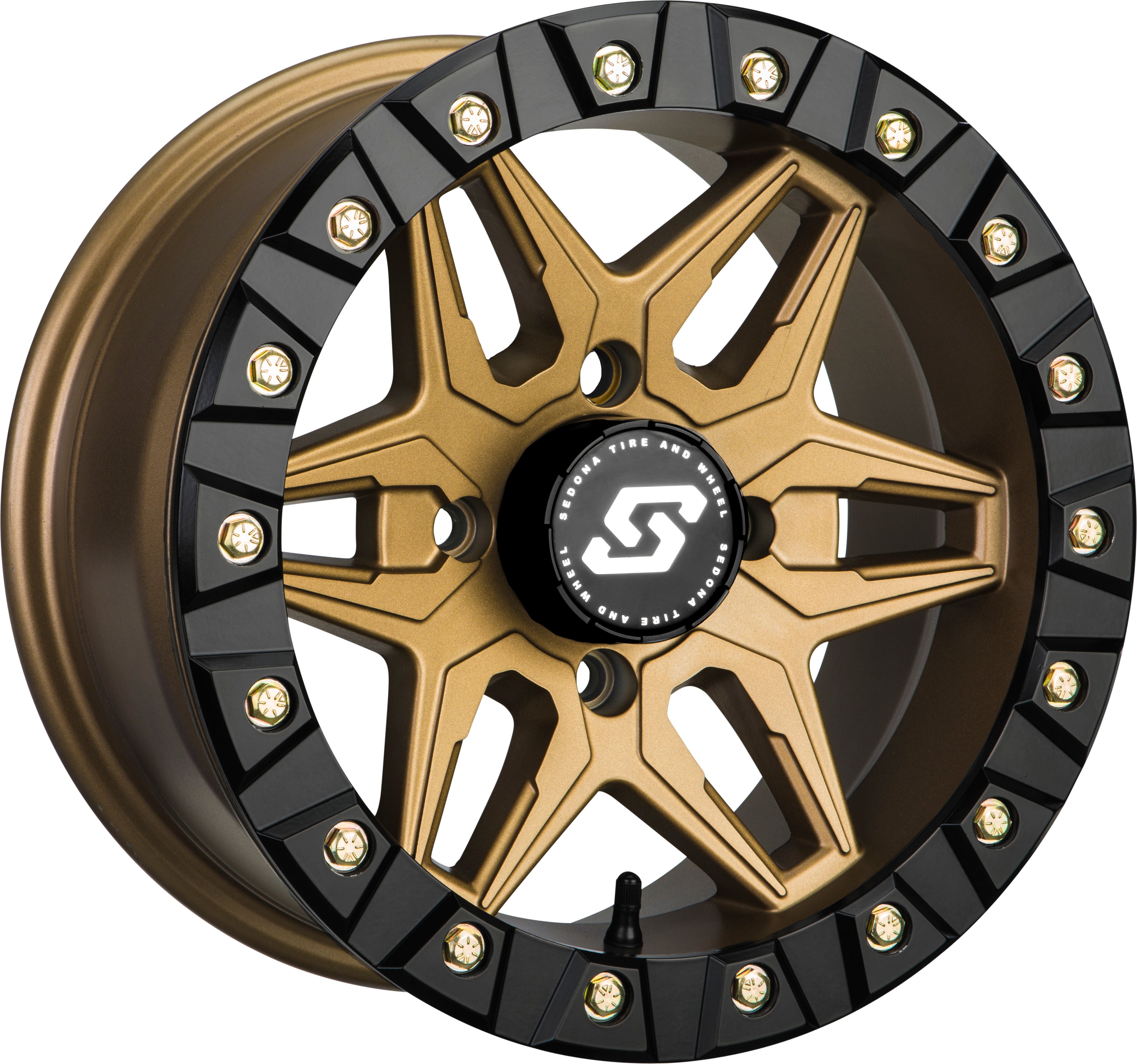

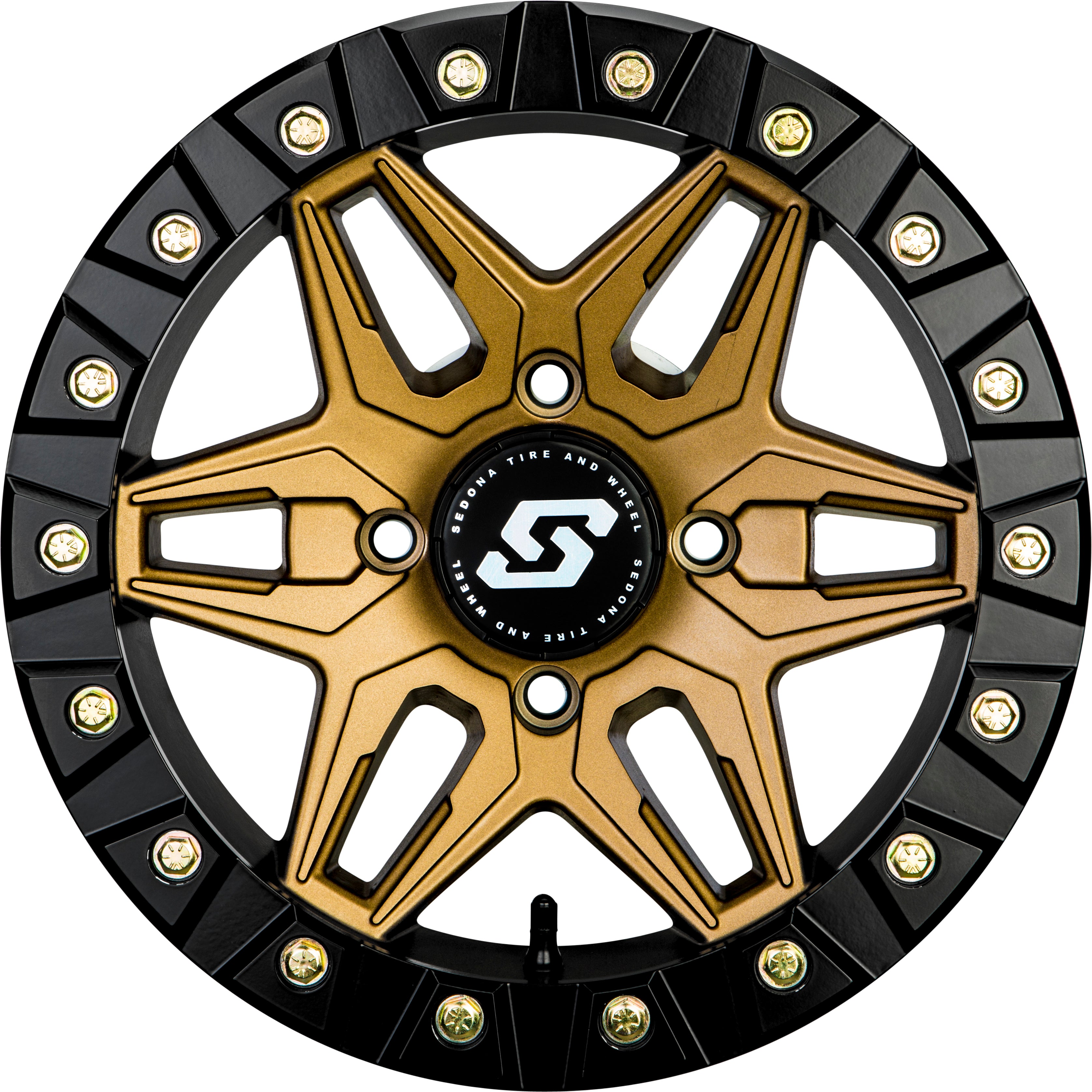

Sedona Split 6 Beadlock Wheel - Bronze

The Split 6 combines a six-spoke mesh pattern with a stepped beadlock ring. It offers a true beadlock design for off-road recreation and competition setups.

Design and Construction

• A356 aluminum wheel with a 6061 aluminum beadlock ring.
• Includes US-made Grade 8 zinc-finished beadlock fasteners.
• A black Sedona snap-in center cap is included.
• Follow the current manufacturer installation instructions and confirm vehicle-specific lug hardware.

The Sedona Split 6 Beadlock Wheel in Bronze is available in the configurations below. Choose the exact size, bolt pattern and backspacing offered for your application.

Compare the specifications below with your current wheel setup before ordering.

Wheel Specifications

• 14x7; 4x110 bolt pattern; 5+2 backspacing; +10 mm offset.
• 14x7; 4x137 bolt pattern; 5+2 backspacing; +10 mm offset.
• 14x7; 4x156 bolt pattern; 4+3 backspacing; +5 mm offset.
• 14x7; 4x156 bolt pattern; 6+1 backspacing; +30 mm offset.
• 15x6; 4x137 bolt pattern; 5+1 backspacing; +38 mm offset.

Fitment and Installation

Vehicle compatibility must be checked for the selected wheel configuration. Confirm hub bore, lug nut seat and hardware, brake clearance, tire compatibility and suspension clearance. Do not assume a wheel fits every UTV sharing its bolt pattern.

Compare other options in our UTV wheels collection.

Before You Order

Check your selected size, bolt pattern, offset and quantity carefully. Confirm included hardware with us if your installation requires specific lug nuts or mounting components.

Frequently Asked Questions

Will this wheel fit my UTV?

Match the selected wheel's exact bolt pattern, size, offset and backspacing to your vehicle. Confirm hub bore, lug hardware and brake clearance before ordering. A matching bolt pattern alone does not guarantee fitment.

Are 4x136 and 4x137 the same selection?

These source bolt patterns are kept separate. Do not substitute one for the other without manufacturer confirmation for your exact vehicle and wheel.

Are offset and backspacing interchangeable?

No. Backspacing and millimeter offset are separate measurements. Where both are provided, the listing retains both source specifications.
