Cube Flood Light | AJK Offroad

Cube Flood Light from AJK Offroad is designed to add flood illumination. Choose the configuration that matches your machine and the way you use it.

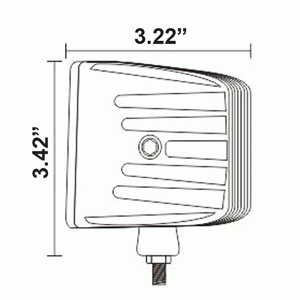

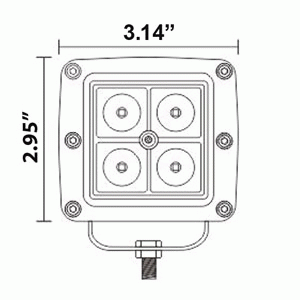

Check the mounting dimensions and configuration details below before ordering. Key details include 4 LEDS Per Light (12 watts); 90-degree Flood Light Pattern.

Key Features

• 4 LEDS Per Light (12 watts)
• 90-degree Flood Light Pattern
• Color Temp 6000K
• Plug and Play
• Includes Relay Wire Harness
• Sold as a Set of Two
• Advanced thermal management with short circuit and open circuit protection, plus several other innovative features.
• Surface mount and flush mount LED cubes provide flexible solutions for nearly any lighting application.
• Housing: Die-cast aluminum, black
• Lens: Polycarbonate
• Mounting Hardware: Stainless steel (316)
• Electronics: Integrated, epoxy-encapsulated
• Operating Temperature: -40°C to +60°C
• IP Rating: IP67
• Protections: Reverse polarity
• Input Voltage: 10–30V DC
• Power Consumption: 12W each (Pair: 4x 3W LEDs)
• Lumen Output: 900 lumens each
• Color Temperature: 6000K
• Beam Pattern: 90° flood

Compatibility

This is not assigned to vehicle model collections. Confirm the mounting dimensions and application before ordering.

Product Details and Installation

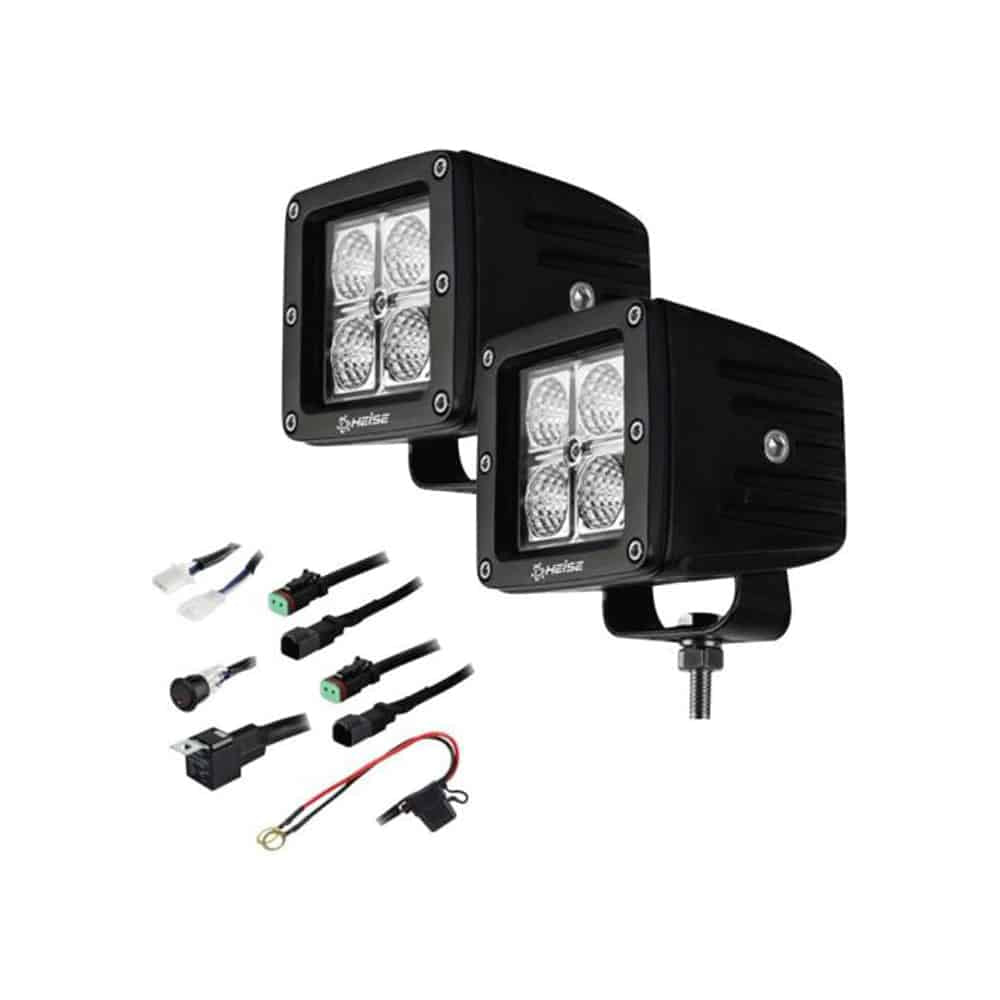

AJK now stocks Heise LED Cube Spot Lights—designed to balance performance, durability, and affordability better than anything else on the market. Each compact cube measures approximately 3" x 3" and produces 900 lumens in a wide 90-degree flood pattern, offering excellent forward visibility. Like all Heise lighting products AJK carry, these cubes feature die-cast aluminum housings and epoxy-encapsulated electronics for long-lasting durability. The kit also includes a universal wiring harness and switches for easy plug-and-play installation.

• 4 LEDS Per Light (12 watts)
• 90-degree Flood Light Pattern
• Color Temp 6000K
• Plug and Play
• Includes Relay Wire Harness
• Sold as a Set of Two

SKU: 300183

Features:

• Advanced thermal management with short circuit and open circuit protection, plus several other innovative features.
• Surface mount and flush mount LED cubes provide flexible solutions for nearly any lighting application.

Construction:

• Housing: Die-cast aluminum, black
• Lens: Polycarbonate
• Mounting Hardware: Stainless steel (316)
• Electronics: Integrated, epoxy-encapsulated

Operation:

• Operating Temperature: -40°C to +60°C
• IP Rating: IP67
• Protections: Reverse polarity

Specifications:

• Input Voltage: 10–30V DC
• Power Consumption: 12W each (Pair: 4x 3W LEDs)
• Lumen Output: 900 lumens each
• Color Temperature: 6000K
• Beam Pattern: 90° flood
