CFMOTO Extended Wheel Studs | M10 x 1.25, 45 mm, 9010-070201 Reference
View full product detailsExtended CFMOTO wheel studs: check original part 9010-070201

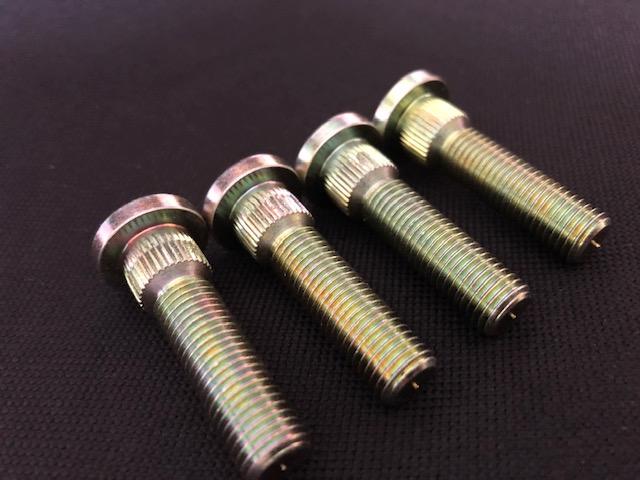

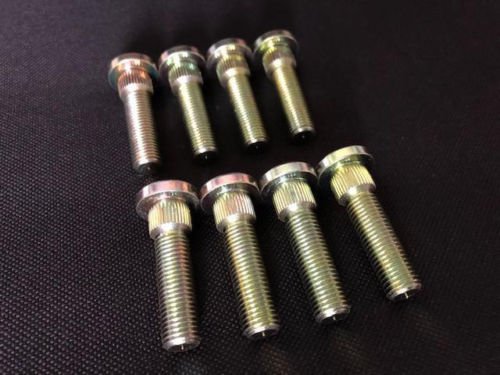

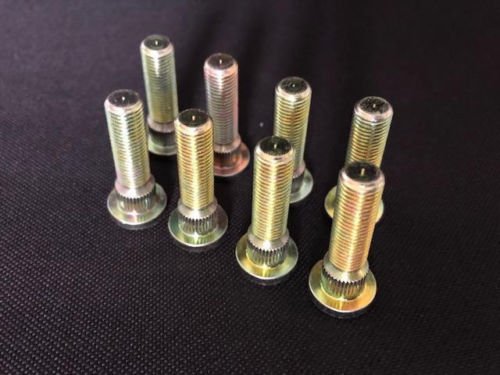

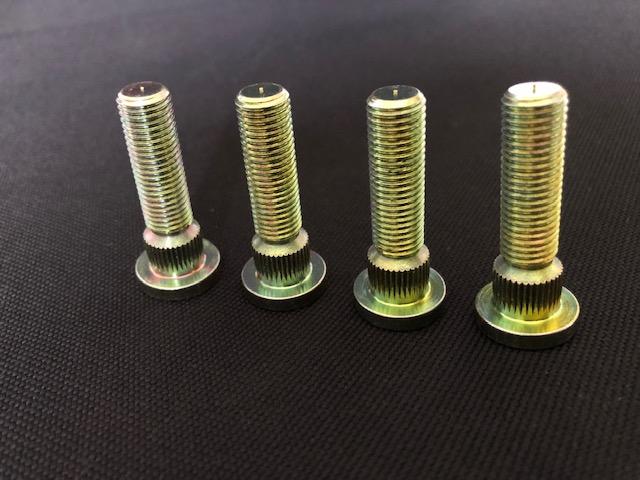

RAD extended wheel studs provide a 45 mm listed length and M10 x 1.25 thread for the selected CFORCE, UFORCE and ZFORCE applications below. Compare the original CFMOTO stud reference 9010-070201 with your exact vehicle and hub before ordering. Yellow zinc plating provides corrosion resistance.
Not for ZFORCE 950. A matching 10 mm thread alone is not sufficient fitment evidence. Do not assume compatibility with a newer Z10, U10 or any unlisted model from the brand name alone.
| Thread | M10 x 1.25 |
|---|---|
| Listed length | 45 mm, approximately 1.75 inches |
| Original-part reference | CFMOTO 9010-070201; this is a fitment reference, not the RAD pack SKU |
| Quantity options | 4, 8 or 16 studs |
| Included | Studs in the selected quantity; lug nuts and wheel spacers are not included |
Before fitting a spacer or aftermarket wheel
Compare the original stud's knurl and press-fit dimensions, usable length, hub retention and thread engagement. Confirm the lug-nut seat matches the wheel and that the nut does not bottom out. Extended length is not an automatic approval for every spacer. Follow the vehicle and wheel manufacturer's installation and torque instructions.
Existing RAD application list, 2007–2021
Match the exact year and model below, then confirm the original part and hub. No later-year fitment is implied.
2007 CFMoto CFORCE 500 SWB/07-08
2007 CFMoto CFORCE 500-A LWB/07-08
2008 CFMoto CFORCE 500 CF500-2
2008 CFMoto CFORCE 500 CF500-2A
2008 CFMoto CFORCE 500 SWB/07-08
2008 CFMoto CFORCE 500-A LWB/07-08
2008 CFMoto UFORCE 500 CARB
2009 CFMoto CFORCE 500 CF500-2
2009 CFMoto CFORCE 500 CF500-2A
2009 CFMoto UFORCE 500 CARB
2010 CFMoto UFORCE 500 CARB
2010 CFMoto X5 (CFORCE 500) LWB
2010 CFMoto X5 (CFORCE 500) SWB
2010 CFMoto X6 (CFORCE 600) LWB
2010 CFMoto X6 (CFORCE 600) SWB
2011 CFMoto UFORCE 600 CF600-5
2011 CFMoto X5 (CFORCE 500) LWB
2011 CFMoto X5 (CFORCE 500) SWB
2011 CFMoto X6 (CFORCE 600) LWB
2011 CFMoto X6 (CFORCE 600) SWB
2012 CFMoto UFORCE 600 CF600-5
2012 CFMoto X5 (CFORCE 500) LWB
2012 CFMoto X5 (CFORCE 500) SWB
2012 CFMoto X6 (CFORCE 600) LWB
2012 CFMoto X6 (CFORCE 600) SWB
2012 CFMoto ZFORCE 600 CF600-3
2013 CFMoto CFORCE 500 SWB
2013 CFMoto CFORCE 600 LWB
2013 CFMoto UFORCE 600 CF600-5
2013 CFMoto UFORCE 800 CF800-3
2013 CFMoto X8 (CFORCE)
2013 CFMoto ZFORCE 600 CF600-3
2013 CFMoto ZFORCE 600 CF600-6
2014 CFMoto CFORCE 500 SWB
2014 CFMoto CFORCE 600 LWB
2014 CFMoto UFORCE 600 CF600-5
2014 CFMoto UFORCE 800 CF800-3
2014 CFMoto X8 (CFORCE)
2014 CFMoto ZFORCE 600 CF600-3
2014 CFMoto ZFORCE 800 EX CF800
2015 CFMoto CFORCE 500 HO CF500AU-6L
2015 CFMoto CFORCE 500 SWB
2015 CFMoto UFORCE 800 UF800EX
2015 CFMoto X8 (CFORCE)
2015 CFMoto ZFORCE 600 CF600-3
2015 CFMoto ZFORCE 800 EX CF800
2015 CFMoto ZFORCE 800 Trail ZF800
2016 CFMoto CFORCE 400 CF400AU
2016 CFMoto CFORCE 500 HO CF500AU-6L
2016 CFMoto CFORCE 500 SWB
2016 CFMoto UFORCE 500 CF500UU
2016 CFMoto UFORCE 800 UF800EX
2016 CFMoto X8 (CFORCE)
2016 CFMoto ZFORCE 500 CF500US
2016 CFMoto ZFORCE 800 EX CF800
2016 CFMoto ZFORCE 800 Trail ZF800
2017 CFMoto CFORCE 400 CF400AU
2017 CFMoto CFORCE 500 HO CF500AU-6L
2017 CFMoto CFORCE 500 S CF500AU-7S
2017 CFMoto CFORCE 800 CF800-2
2017 CFMoto UFORCE 500 CF500UU
2017 CFMoto UFORCE 800 EPS CF800-3(ep
2017 CFMoto ZFORCE 500 CF500US
2017 CFMoto ZFORCE 800 EX CF800
2017 CFMoto ZFORCE 800 Trail CF800US-A
2018 CFMoto CFORCE 400 CF400AU
2018 CFMoto CFORCE 500 HO CF500AU-6L
2018 CFMoto CFORCE 500 S CF500AU-7S
2018 CFMoto UFORCE 500 CF500UU
2018 CFMoto UFORCE 800 CF800-3
2018 CFMoto ZFORCE 1000 CF1000US-2
2018 CFMoto ZFORCE 500 CF500US
2018 CFMoto ZFORCE 800 EX CF800
2018 CFMoto ZFORCE 800 Trail CF800US-A
2019 CFMoto CFORCE 400 CF400AU
2019 CFMoto CFORCE 500 S CF500AU-7S
2019 CFMoto CFORCE 600 CF600AU-L
2019 CFMoto CFORCE 800 XC CF800AU-2A
2019 CFMoto UFORCE 500 CF500UU
2019 CFMoto UFORCE 800 CF800-3
2019 CFMoto ZFORCE 1000 CF1000US-2
2019 CFMoto ZFORCE 500 CF500US
2019 CFMoto ZFORCE 800 EX CF800
2019 CFMoto ZFORCE 800 Trail CF800US-A
2020 CFMoto CFORCE 400 CF400AU
2020 CFMoto CFORCE 500 S CF500AU-7S
2020 CFMoto CFORCE 600 CF600AU-3S
2020 CFMoto CFORCE 600 Touring CF600AU-3L
2020 CFMoto CFORCE 800 XC CF800AU-2A
2020 CFMoto UFORCE 500 CF500UU
2020 CFMoto UFORCE 800 CF800-3
2020 CFMoto ZFORCE 500 CF500US
2020 CFMoto ZFORCE 800 EX CF800
2020 CFMoto ZFORCE 800 Trail CF800US-A
2021 CFMoto CFORCE 1000
2021 CFMoto CFORCE 400 CF400AU
2021 CFMoto CFORCE 500 S CF500AU-7S
2021 CFMoto CFORCE 600 CF600AU-3S
2021 CFMoto CFORCE 600 Touring CF600AU-3L
2021 CFMoto CFORCE 800 XC CF800AU-2A
2021 CFMoto UFORCE 600
2021 CFMoto UFORCE 800 CF800-3
2021 CFMoto ZFORCE 500 CF500US
2021 CFMoto ZFORCE 800 EX CF800
2021 CFMoto ZFORCE 800 Trail CF800US-A
Read the wheel-stud replacement guide, compare wheel studs and lug hardware, or contact RAD with your exact hub and original-stud measurements.
