SuperATV 6in. Portal Gear Lift for Honda Pioneer 1000
View full product details- Fits:
- Honda Pioneer 1000, Honda Pioneer 1000-5, Honda Pioneer 1000-6
- Years:
- 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025
Confirm your exact model and year before ordering.
Put your Honda Pioneer 1000 on GDP Portals and find out what its really capable of. SuperATV's 6 Portal Gear Lift gives you room for monster tires and the torque to put them to work. Choose a 30%, 45%, or 60% gear reduction, cast or billet aluminum housings, and single or dual idler gears.
Which Gear Reduction Should You Choose?
Need help matching your tire size and riding style to a reduction? Check out SuperATV portal gear reduction calculator.

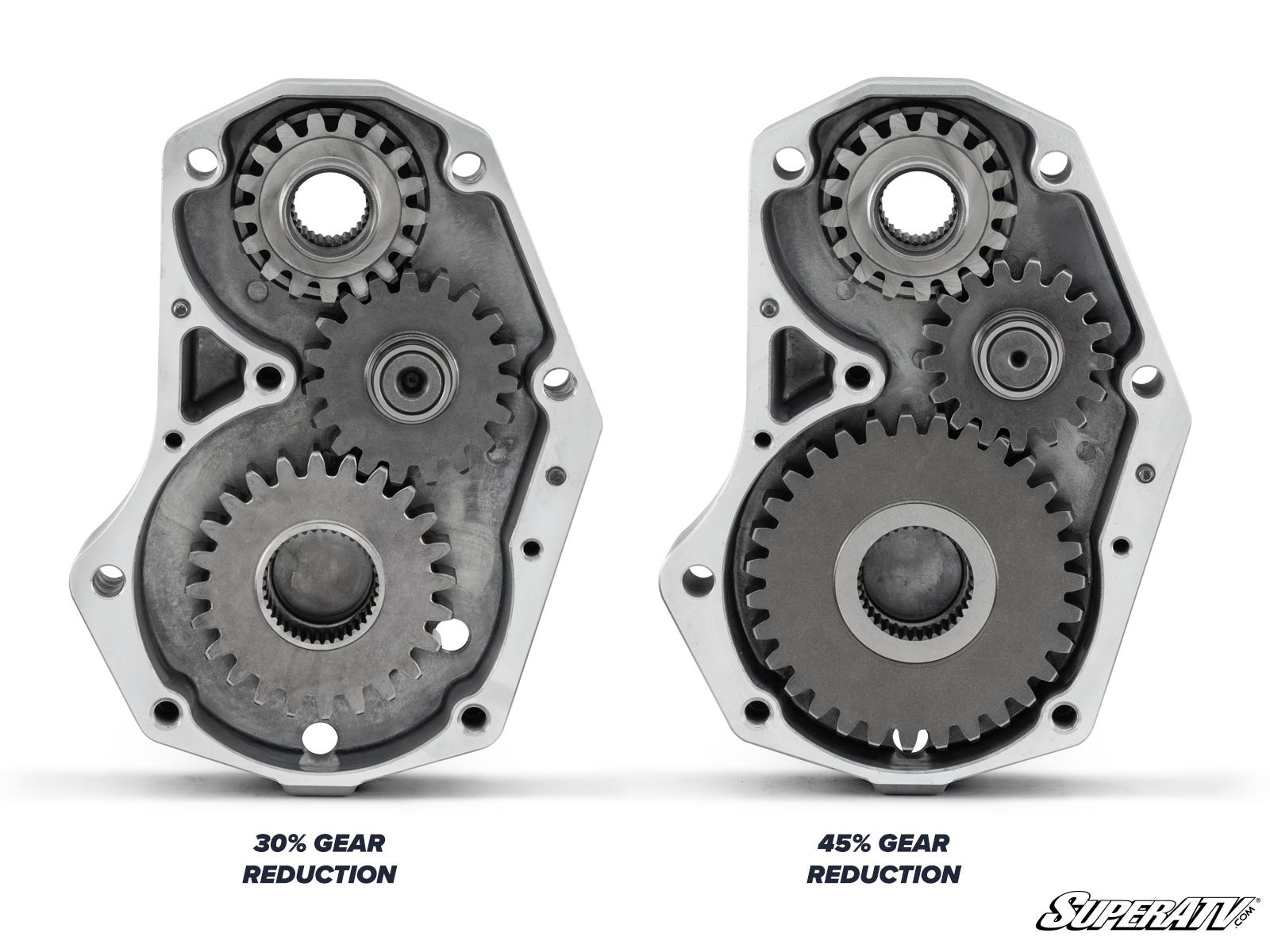

- 30% gear reduction: Get extra torque while retaining more speed for faster trail rides
- 45% gear reduction: Step up the torque to help turn bigger tires
- 60% gear reduction: Get SuperATV deepest reduction for big tires and deep mud
Should You Upgrade to Dual Idlers?

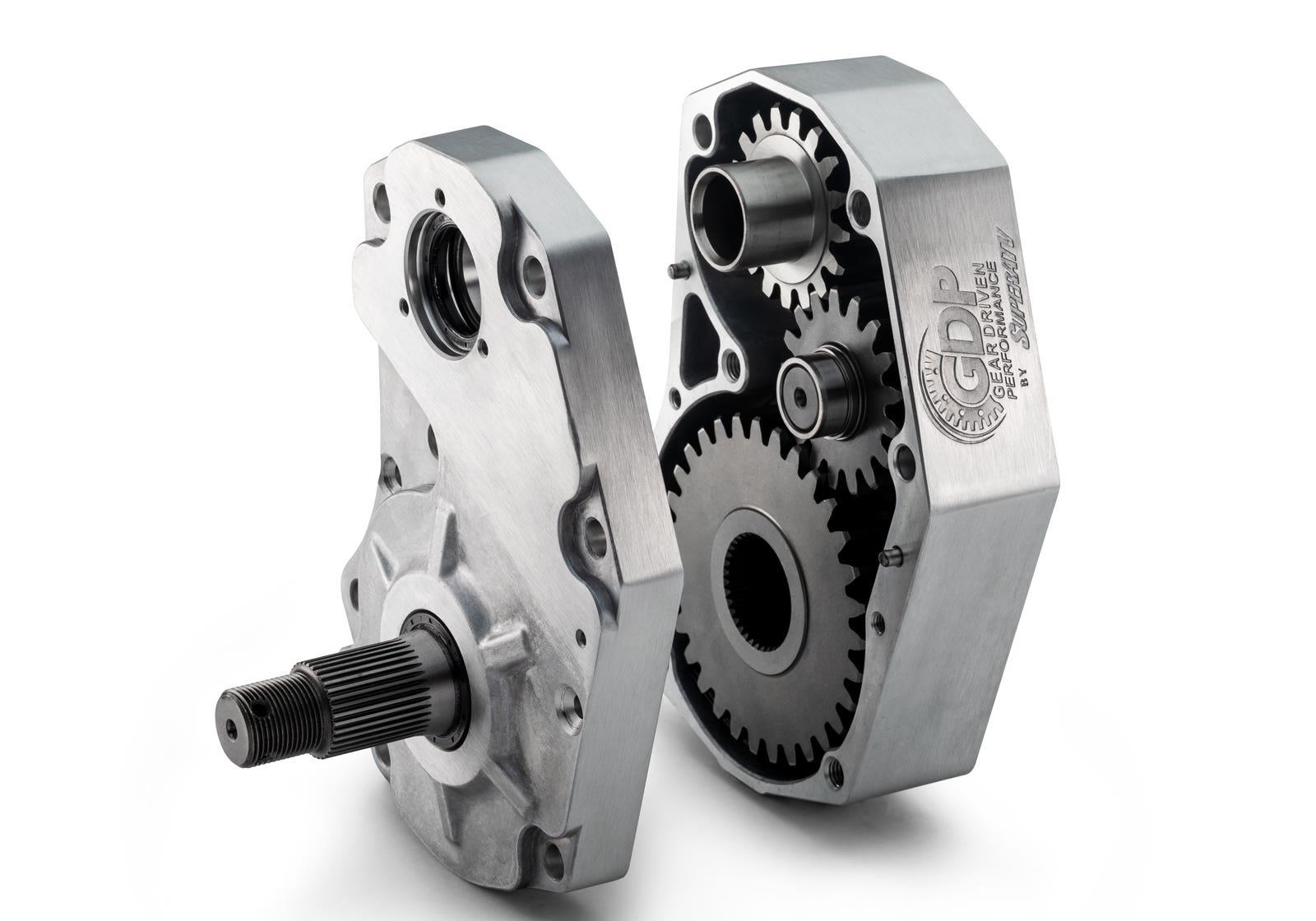

Adding a second idler gear is easy. Getting both gears to share the load takes precision - and that's where GDP earns its name. SuperATV CNC-ground 9310 steel alloy gears mesh perfectly to spread the load over twice as much surface area. You get more reliable torque transfer and SuperATV strongest gear set. If you plan to push your Pioneer hard, this is the upgrade you want.

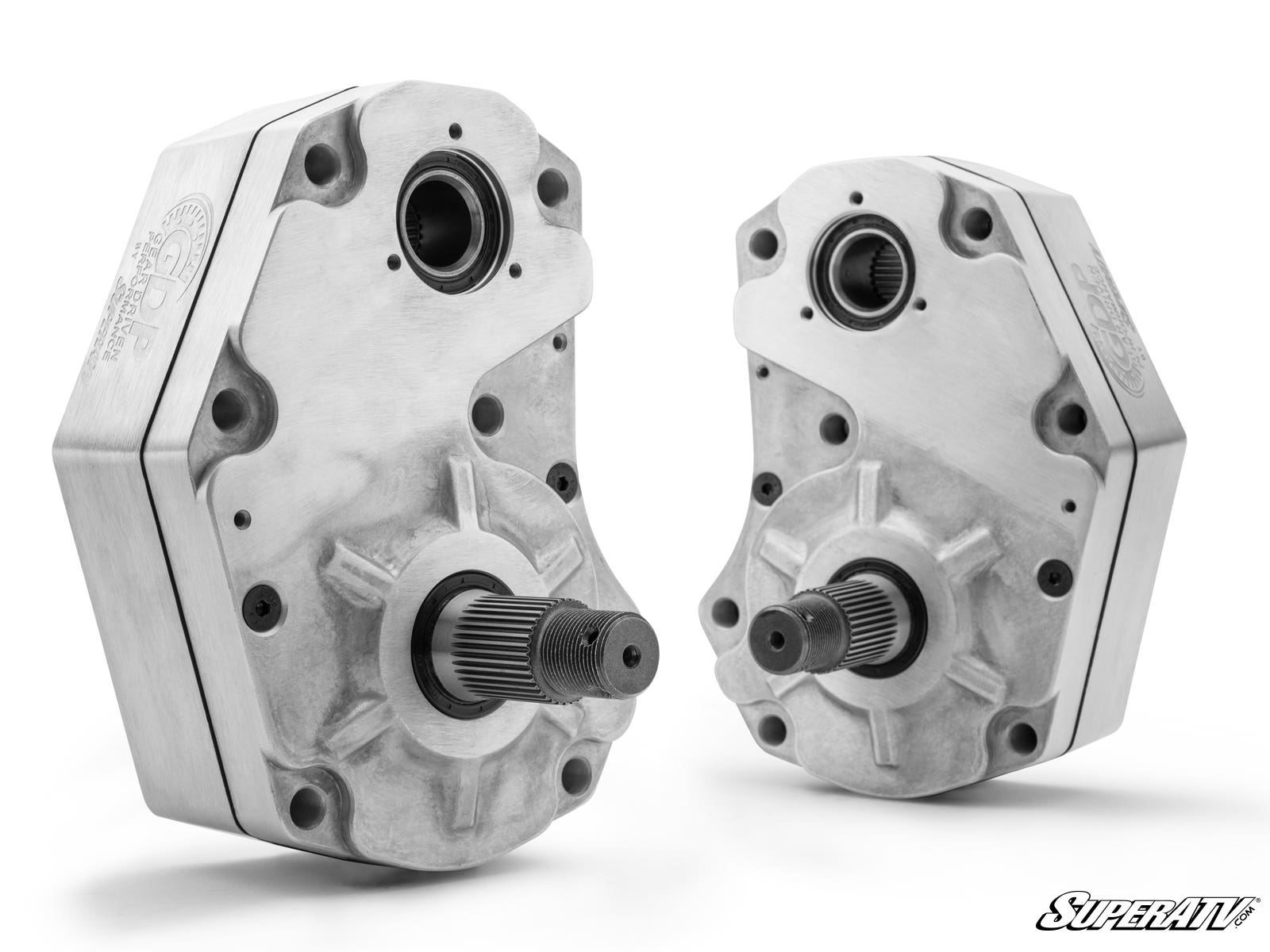

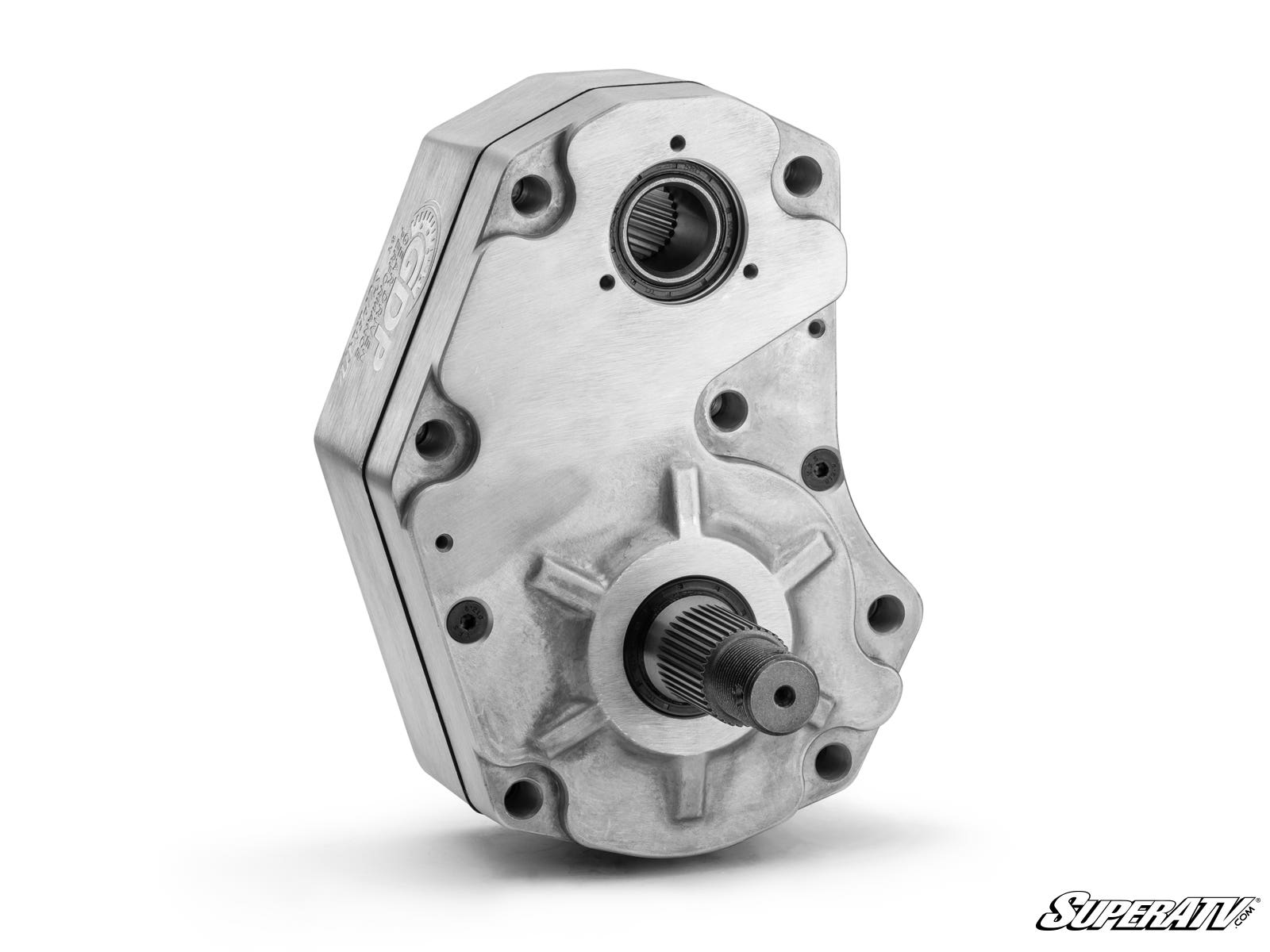

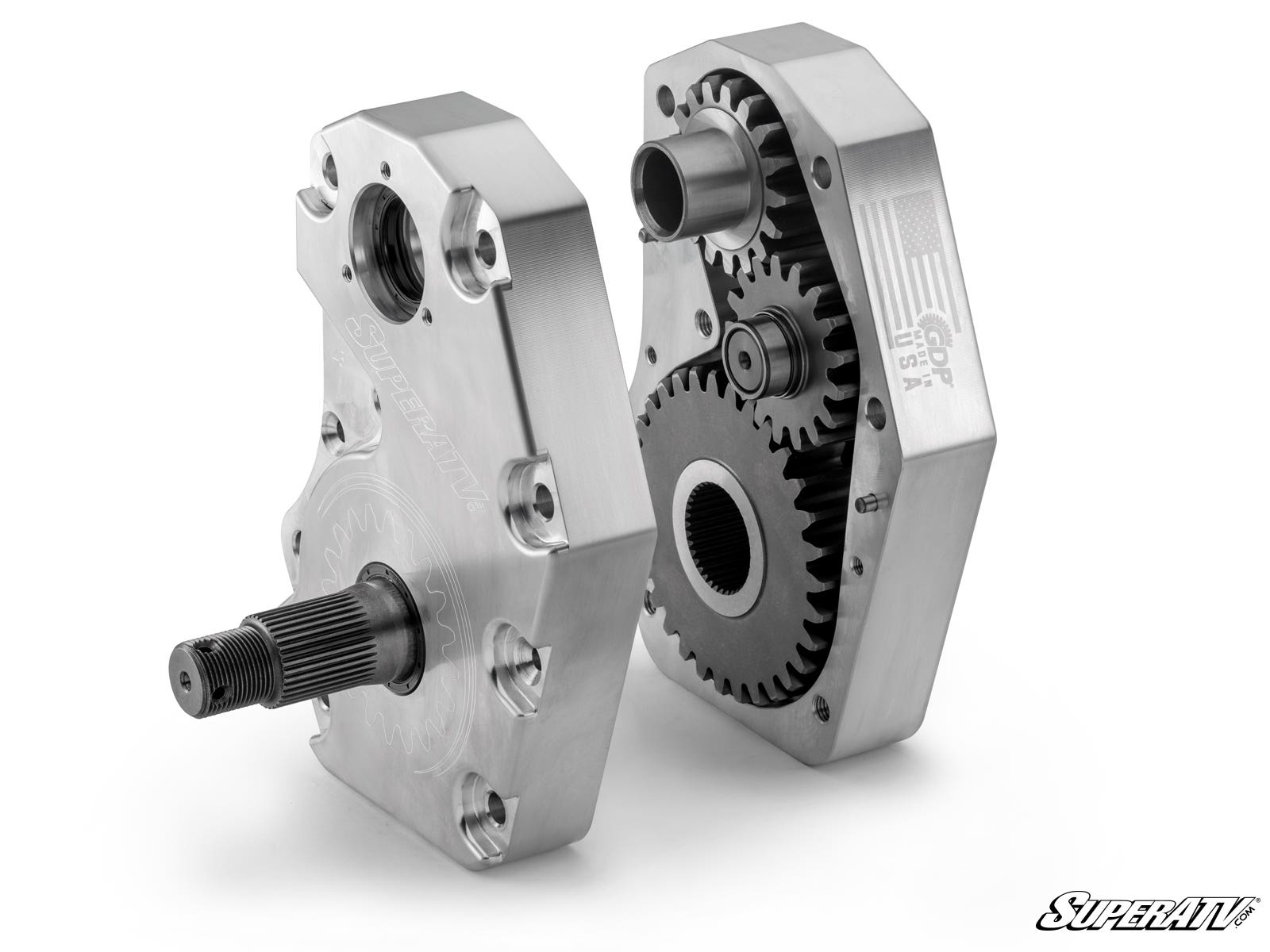

Cast or Billet Aluminum?
Choose cast or billet aluminum housings for your Pioneer. Both options have reinforcement for gear retention and an interior optimized for oil flow.
What Size Tires Can You Run?
Use the table below to match your tire size to your suspension setup.
Do You Need a Frame Stiffener?
Portals and oversized tires can put extra strain on your machine, and a frame stiffener adds reinforcement where you need it.
How Do Portals Affect Your Drivetrain?
GDP Portals put the gear reduction at the wheel hubs. That helps reduce stress on your axles, differential, prop shaft, and transmission compared to oversized tires without gear reduction.
GDP Riders Say It Best
GDP all the way. Fit and finish is perfect, installation is a breeze, and shipping is super fast.
Reviews reflect customer experiences across the GDP Portal Gear Lift lineup.
- - Levi, GDP Portal Gear Lift customer
- Super smooth and plenty of torque
- - Austin L., GDP Portal Gear Lift Customer
Built for Hard Rides
SuperATV portal housings and advanced steel alloy backing plates give your Pioneer a tough foundation.
- SuperATV housings are reinforced for gear retention and optimized for oil flow
- Advanced steel alloy backing plates are stronger than chromoly
Advanced Gaskets, Seals, and Bearings
SuperATV portals use:
- Advanced gaskets and O-rings with excellent oil resistance and low deterioration rates
- A sealed input gear and double-lipped output seal
- 100% sealing coverage throughout so you can forget about oil leaks
- Double-angular contact output bearings to prevent premature wear
- Roller idler and drive bearings to maintain perfect gear meshing
Need Help Choosing Your Portals?
SuperATV dedicated portal tech support team can help you choose the right setup for your Pioneer. Call (855) 743-3427 for help with gear reduction, housing options, and more.
- Patent #11,299,042
- Patent #11,318,787
6in. Portal Gear Lift Fitment
2016-2025
- Honda Pioneer 1000
- Honda Pioneer 1000 Deluxe
- Honda Pioneer 1000-5
- Honda Pioneer 1000-5 Deluxe
2022-2025
- Honda Pioneer 1000 Limited Edition
- Honda Pioneer 1000-5 Limited Edition
2023-2025
- Honda Pioneer 1000-6
