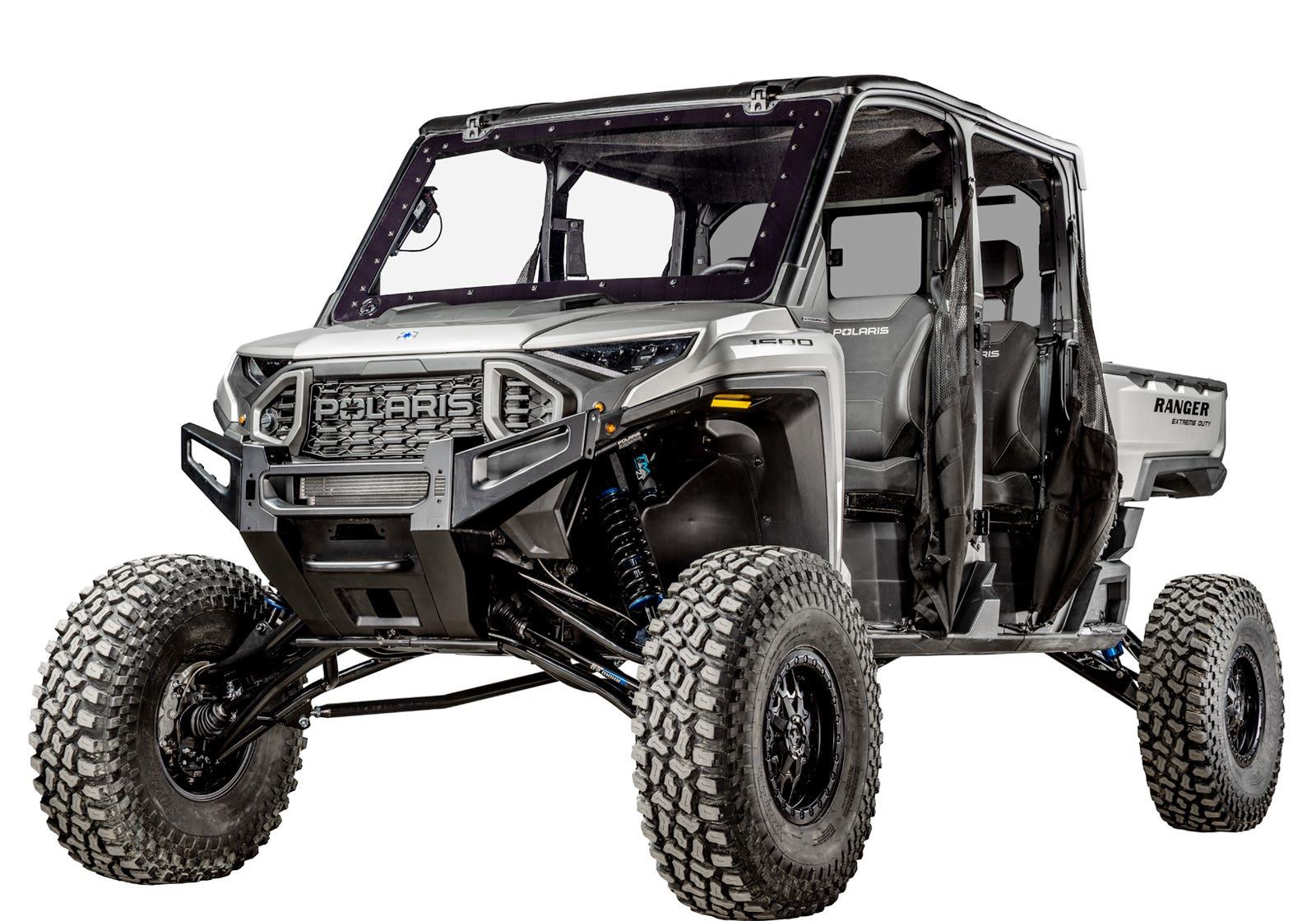

SuperATV 6in. Lift Kit for Polaris Ranger XD 1500

Your Polaris Ranger XD 1500 isn't a true mud monster until it has SuperATV's 6 Lift Kit Installed. It's built tough using SuperATV Atlas Pro 1.5 Forward Offset A-Arms, so it's made to handle the kind of abuse you like to dish out. You get more clearance, more width, more capability - basically, more fun every time you hit the trail.

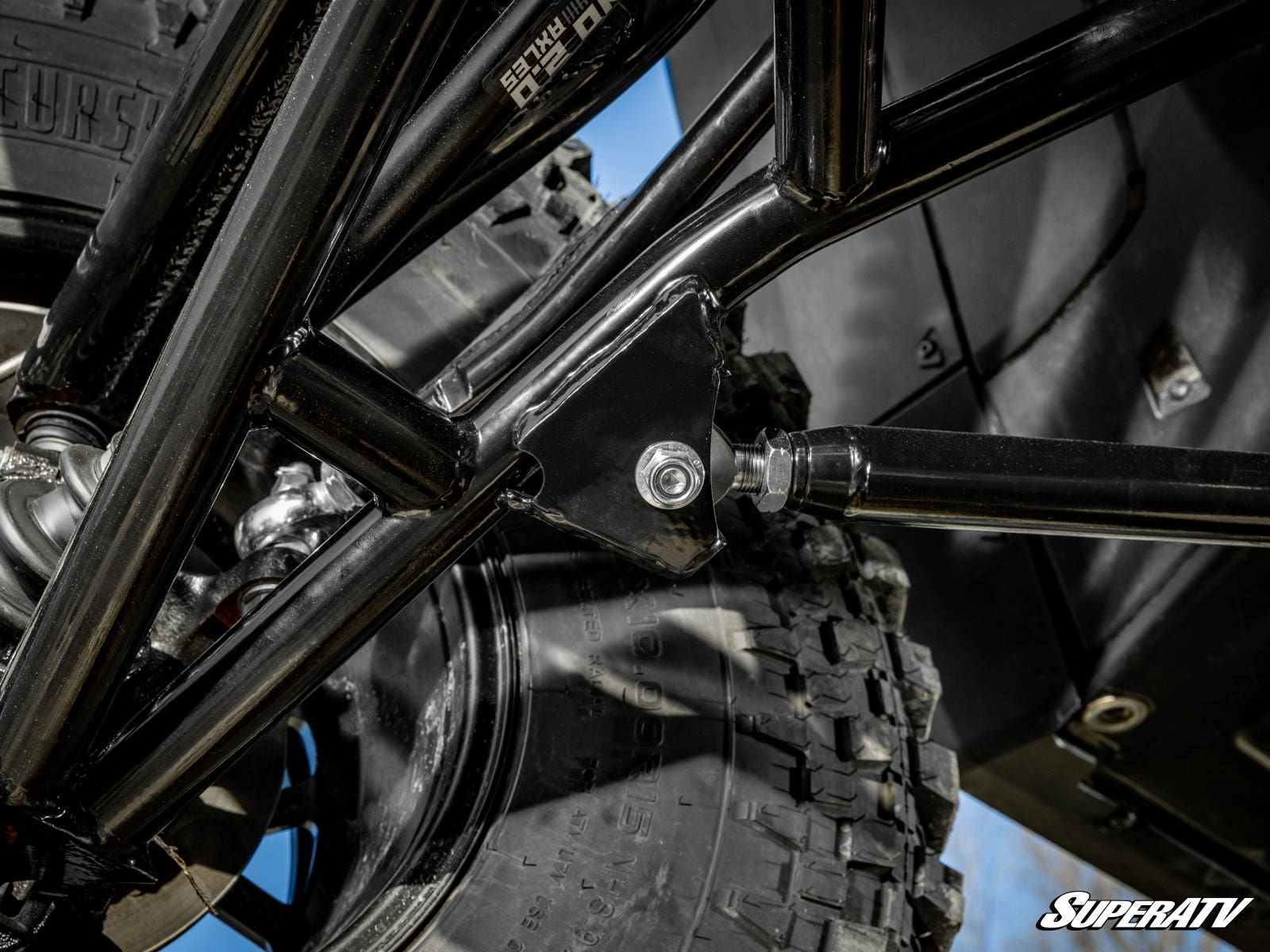

Atlas Pro A-Arms for the Win

They're built with ultra-strong DOM tubing. The main tubes are 1.5 x .25 while the support tubes are 1.5 x .13, making them way bigger than stock. These arms can take a serious beating without bending or breaking. Plus, SuperATV added its self-lubricating UHMW bushings for a smooth, quiet ride.

Feels Like Stock

The shocks and brackets are set up at just the right angles to keep everything working together the way it was meant to. You won't see much of a change in your turning radius either, so your ride still feels easy and natural to handle.

Rhino 2.0 Axles

SuperATV designed them to handle extreme 40° suspension angles without overheating. There's no break-in period needed - just install and ride hard.

Get Them with Preassembled Ball Joints

Get back in your Ranger XD 1500 sooner when you order SuperATV lift kit with the ball joints preinstalled. You'll save money and time on removing your old, worn ball joints.

NOTE: You must re-use your stock ball joints if you don't select pre-installed ball joints at checkout.

Heavy-Duty Ball Joints

SuperATV heavy-duty ball joints are built to handle whatever you throw at them. They're made from super-strong 4340 VAR steel and are zinc-plated to stand up to wear and tear. They're adjustable and have easy-access grease zerks, so they're easy to maintain. They can withstand twice the force of a stock ball joint.

Super Duty 300M Ball Joints

SuperATV used ultra-tough 300M grade steel and paired it with precision engineering to build one of the strongest ball joints on the market. They feature an adjustable steel-on-steel design and easy to reach grease zerk for quick maintenance. And with strength rated at 2.25 times stronger than stock - they're built to outperform and outlast.

Keller Ball Joints

Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms like a nut and bolt, making them nearly impossible to pull out. They're built with a tough chromoly steel stud and an advanced tool-steel body, so they're ideal for larger machines, bigger tires, and heavier rides. Plus, they're greaseable and rebuildable, so you can keep them running smoothly for the long haul.

Kit includes

• Front shock mount brackets
• Rear shock mount brackets
• Front shock mount cross brace
• Rear sway bar relocation bracket
• Limit straps
• Front and rear Atlas Pro A-arms
• (4) Rhino 2.0 Axles
• Heavy-duty Z-bend tie rod kit
• Extended brake lines
• All hardware and installation instructions

6in. Lift Kit Fitment

2024-2026

• Polaris Ranger Crew XD 1500 NorthStar Premium
• Polaris Ranger Crew XD 1500 NorthStar Ultimate
• Polaris Ranger Crew XD 1500 Premium
• Polaris Ranger XD 1500 NorthStar Premium
• Polaris Ranger XD 1500 NorthStar Ultimate
• Polaris Ranger XD 1500 Premium
