SuperATV 5in. Lift Kit for Honda Pioneer 700

Turn your Honda Pioneer 700 into a mud-monster with SuperATV's 5 Lift Kit. Plus, this lift gives you the ability to run up to 33 tires.

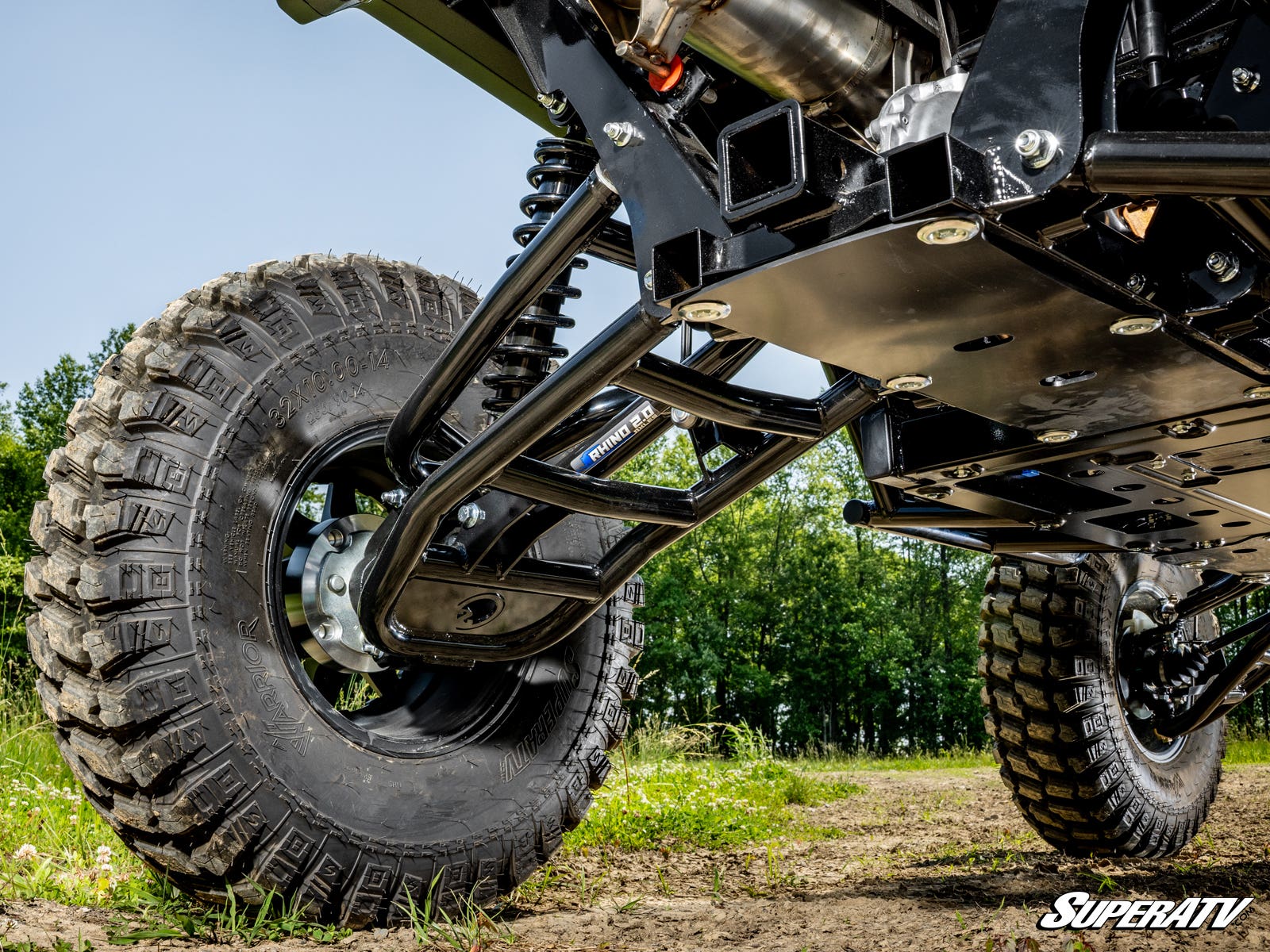

Atlas Pro A-Arms Take It to the Next Level

That's why SuperATV includes its Atlas Pro A-Arms. They're built tough with steel DOM tubing - 1.5 x .25 main tubes and 1.5 x .13 support tubes. They're way bigger and stronger than stock, giving you the durability you need to take on the roughest terrain with ease.

Maintains the Stock Feel

With precisely angled shocks and brackets, everything stays dialed in perfectly. You won't notice too big of a change in your turning radius either, so you can count on the same comfortable handling every time you hit the trail in your Honda Pioneer 700.

Rhino 2.0 Axles

Of course SuperATV included its top-tier Rhino 2.0 axles. SuperATV engineered them to handle extreme 40° suspension angles without overheating or wearing out. No break-in period needed - just install and ride.

Get Them Preassembled

Get back in your Pioneer 700 fast when you order this lift kit with Keller Ball Joints preinstalled. It saves you money and time on removing and installing your old, worn ball joints.

NOTE: You must re-use your stock ball joints if you don't select a pre-installed Keller Ball Joint at checkout.

Keller Ball Joints

Keller Ball Joints have a two-piece design that eliminates the need for a snap ring. They thread directly onto your A-arms like a nut and bolt, making them nearly impossible to pull out. They're built with a tough chromoly steel stud and an advanced tool-steel body, so they're ideal for larger machines, bigger tires, and heavier rides. Plus, they're greaseable and rebuildable, so you can keep them running smoothly for the long haul.

Kit includes

• Rear lift brackets
• Front spring spacers
• Front and rear Atlas Pro A-arms
• (4) Rhino 2.0 Axles
• Heavy-duty Z-bend tie rod kit
• Extended brake lines
• All hardware and installation instructions

5in. Lift Kit Fitment

2017-2026

• Honda Pioneer 700
• Honda Pioneer 700-4
